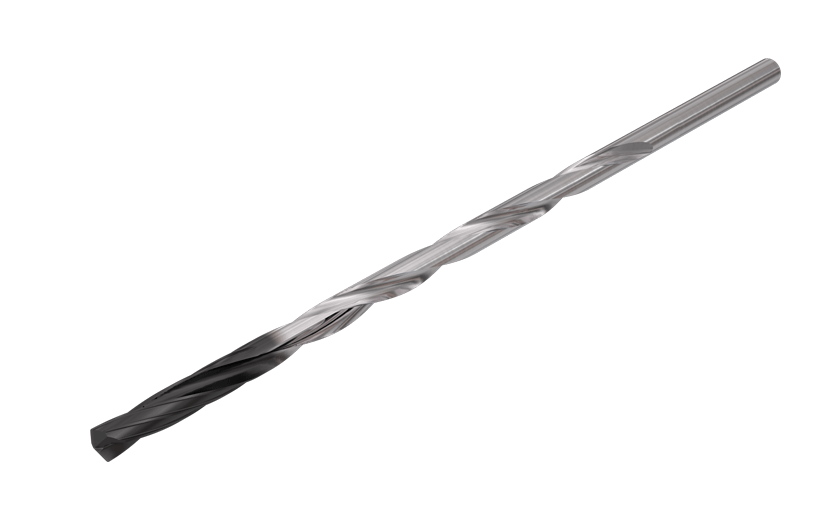

SCD 030-101-060 IXC30 IC908-Solid carbide drills with internal coolant channels, drilling Depth 30xD, for machining ISO K materials

Dostępność: duża ilość

Cena brutto: 1 869,21 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

1869.21

Cena netto: 1 519,68 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 2 076,90 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3444132

SCD 030-101-060 IXC30 IC908

Podstawowe informacje
FamilyName	SCD-IXC30
ToolType	Solid
Unit	M
PackSize	1
product_code	ISC3444132
ProductName	SCD 030-101-060 IXC30 IC908
COO	USA
UOM	EA
UNSPSC	23241605
FamilyDesc	Solid carbide drills with internal coolant channels, drilling Depth 30xD, for machining ISO K materials
FamilyShortDesc	Solid Carbide Drills with Internal Coolant Channels, Drilling Depth 30xD, for Machining ISO K Materials
Link	https://www.Iscar.com/ecat/e.asp?cat=3444132
Remarks	Based on DIN 6537 standard
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Drilling \|
APP1Name	Drilling
ItemRemark
Coating	TiAlN
Cutting Edge Material	Carbide
Tool Type	solid carbide Drills
Point Shape
Measurement Type	Metric
Applicable Material	\| Steel \| Stainless Steel \| Cast Iron \| Hard Materials \| Super-Alloys / Titanium \|
Thread Standard
Package Weight	0.0480
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	3444132
Grade	IC908
Connection Code Machine Side (CCMS)	Cylindrical
Connection Diameter Machine Side (DCONMS)	6 mm
Coolant Supply Property (CSP)	Coolant Thru
Cutting Direction (HAND)	Right Hand
Decimal Equivalent
Drill Bit Size / Cutting Diameter (DC)	3 mm
Drill Bit Size / Cutting Diameter (DC) - Metric	3 mm
Flute Count (NOF)	2
Length Chip Flute (LCF)	105 mm
Number of Teeth	2
Overall Length (OAL)	150 mm
Point Angle (SIG)	135 Degrees
Shank Diameter Tolerance (TCDMM)	h6
Shank Length (LS)	36 mm
Shank Type	Round
Usable Length (LU)	101 mm
