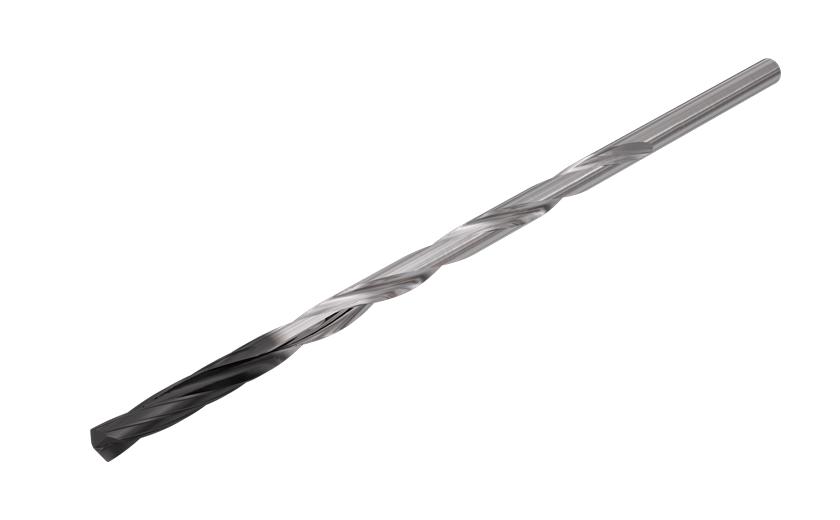

SCD0234-0390-0236IXC16 IC908-Solid carbide drills with internal coolant channels, drilling Depth 16xD, for machining ISO K materials

Dostępność: duża ilość

Cena brutto: 1 362,24 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

1362.24

Cena netto: 1 107,51 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 1 513,60 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3444163

SCD0234-0390-0236IXC16 IC908

Podstawowe informacje
FamilyName	SCD-IXC16
ToolType	Solid
Unit	I
PackSize	1
product_code	ISC3444163
ProductName	SCD0234-0390-0236IXC16 IC908
COO	USA
UOM	EA
UNSPSC	23241605
FamilyDesc	Solid carbide drills with internal coolant channels, drilling Depth 16xD, for machining ISO K materials
FamilyShortDesc	Solid Carbide Drills with Internal Coolant Channels, Drilling Depth 16xD, for Machining ISO K Materials
Link	https://www.Iscar.com/ecat/e.asp?cat=3444163
Remarks	Based on DIN 6537 standard
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Drilling \|
APP1Name	Drilling
ItemRemark
Coating	TiAlN
Cutting Edge Material	Carbide
Point Shape
Measurement Type	Inch
Applicable Material	\| Steel \| Stainless Steel \| Cast Iron \| Hard Materials \| Super-Alloys / Titanium \|
Thread Standard
Package Weight	0.1543
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	3444163
Grade	IC908
Connection Code Machine Side (CCMS)	Cylindrical
Connection Diameter Machine Side (DCONMS)	0.236"
Coolant Supply Property (CSP)	Coolant Thru
Cutting Direction (HAND)	Right Hand
Decimal Equivalent	0.234"
Drill Bit Size / Cutting Diameter (DC)	0.234"
Drill Bit Size / Cutting Diameter (DC) - Inch	0.234"
Flute Count (NOF)	2
Length Chip Flute (LCF)	4-1/4"
Number of Teeth	2
Overall Length (OAL)	5.906"
Point Angle (SIG)	135 Degrees
Shank Diameter Tolerance (TCDMM)	h6
Shank Length (LS)	1.417"
Shank Type	Round
Usable Length (LU)	3.9"
