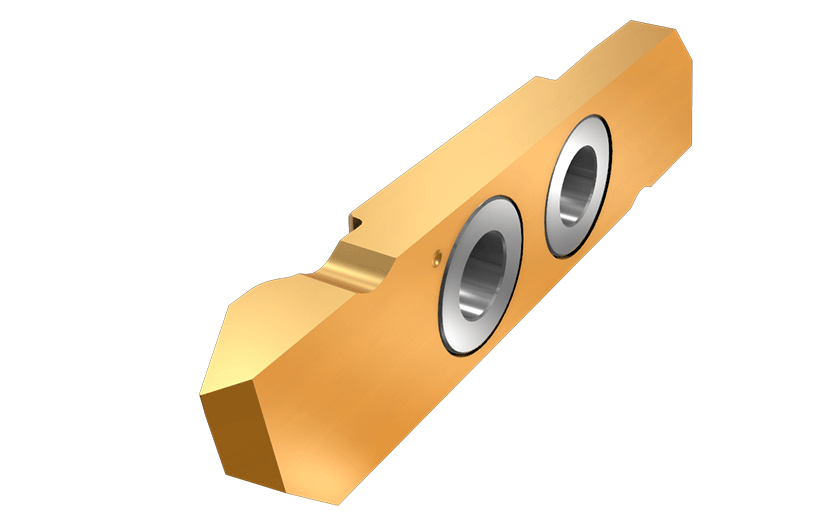

SCIL 41-MTL006 IC1008-Threading inserts with a 60° partial profile.

Dostępność: duża ilość

Cena brutto: 154,80 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

154.80

Cena netto: 125,85 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 172,00 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3333644

SCIL 41-MTL006 IC1008

Podstawowe informacje
FamilyName	SCIR/L-41-MTR/MTL
ToolType	Insert
Unit	M
PackSize	5
product_code	ISC3333644
ProductName	SCIL 41-MTL006 IC1008
COO	Israel
UOM	EA
UNSPSC	23242105
FamilyDesc	Threading inserts with a 60° partial profile.
FamilyShortDesc	Threading Inserts with a 60° Partial Profile
Link	https://www.Iscar.com/ecat/e.asp?cat=3333644
Remarks	DIN13 , ISO 68-1, ISO 965 (1&2) - External tolerance: 6g ANSI/ASME B1.1 - External tolerance: 2A
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Threading (Ext.) Groove Turn T \|
APP1Name	Threading (Ext.) Groove Turn T
ItemRemark
Coating	TiAlN+TiN
Cutting Edge Material	Carbide
Tool Type	Threading Regular Inserts
Point Shape
Measurement Type	Metric
Applicable Material	\| Steel \| Stainless Steel \| Cast Iron \| Hard Materials \| Aluminum / Non-Ferrous Materials \| Super-Alloys / Titanium \|
Thread Standard	THFT \|
Package Weight	0.0174
Style
MSDS	07999
LocalField1	21
Body Material	Carbide
ManufacturerNo	3333644
Grade	IC1008
Corner Radius (RE)	0.06 mm
Cutting Direction (HAND)	Left Hand
Thread Form Type (THFT)	VP60
Thread Pitch Maximum (TPX)	1.5 mm
Thread Pitch Minimum (TPN)	0.4 mm
Threads per Inch Maximum (TPIX)	64
Threads per Inch Minimum (TPIN)	17
