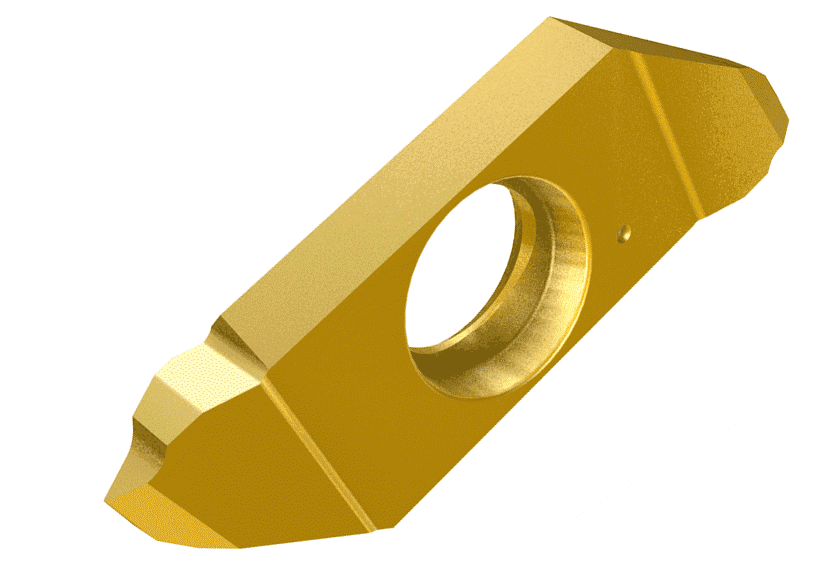

SCIR 22-MTR003 IC1007-Threading inserts with a 60° partial profile.

Dostępność: duża ilość

Cena brutto: 145,90 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

145.90

Cena netto: 118,62 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 162,11 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3333360

SCIR 22-MTR003 IC1007

Podstawowe informacje
FamilyName	SCIR/L-22-MTR/MTL
ToolType	Insert
Unit	M
PackSize	5
product_code	ISC3333360
ProductName	SCIR 22-MTR003 IC1007
COO	Israel
UOM	EA
UNSPSC	23242105
FamilyDesc	Threading inserts with a 60° partial profile.
FamilyShortDesc	Threading Inserts with a 60° Partial Profile
Link	https://www.Iscar.com/ecat/e.asp?cat=3333360
Remarks	DIN13 , ISO 68-1, ISO 965 (1&2) - External tolerance: 6g ANSI/ASME B1.1 - External tolerance: 2A
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Threading (Ext.) Groove Turn T \|
APP1Name	Threading (Ext.) Groove Turn T
ItemRemark
Coating	TiAlN
Cutting Edge Material	Carbide
Tool Type	Threading Regular Inserts
Point Shape
Measurement Type	Metric
Applicable Material	\| Steel \| Stainless Steel \| Cast Iron \| Hard Materials \| Super-Alloys / Titanium \|
Thread Standard	THFT \|
Package Weight	0.0064
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	3333360
Grade	IC1007
Corner Radius (RE)	0.03 mm
Cutting Edge Length (L)	22 mm
Insert Thickness (S)	7 mm
Thread Form Type (THFT)	VP60
Thread Pitch Maximum (TPX)	0.9 mm
Thread Pitch Minimum (TPN)	0.3 mm
Threads per Inch Maximum (TPIX)	83
Threads per Inch Minimum (TPIN)	28
