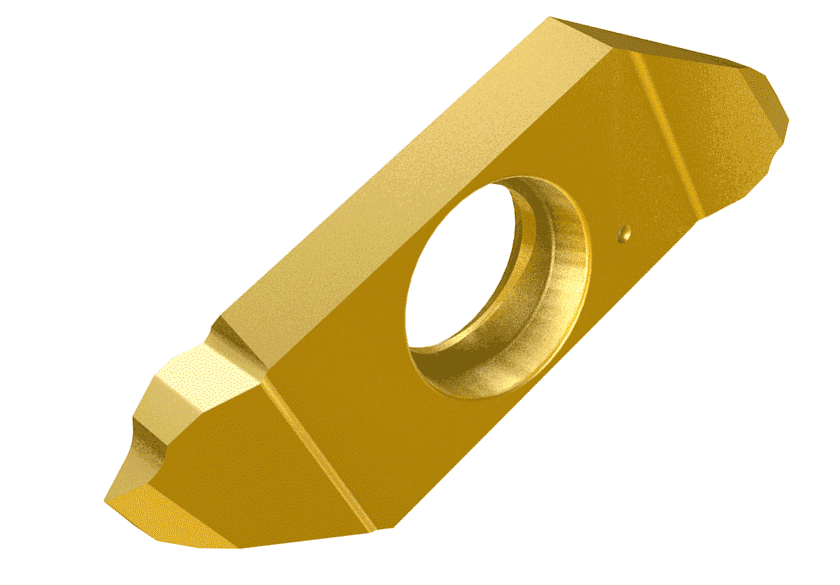

SCIR 22-MTR010 IC07-Threading inserts with a 60° partial profile.

Dostępność: duża ilość

Cena brutto: 112,23 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

112.23

Cena netto: 91,24 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 124,70 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3333380

SCIR 22-MTR010 IC07

Podstawowe informacje
FamilyName	SCIR/L-22-MTR/MTL
ToolType	Insert
Unit	M
PackSize	5
product_code	ISC3333380
ProductName	SCIR 22-MTR010 IC07
COO	Israel
UOM	EA
UNSPSC	23242105
FamilyDesc	Threading inserts with a 60° partial profile.
FamilyShortDesc	Threading Inserts with a 60° Partial Profile
Link	https://www.Iscar.com/ecat/e.asp?cat=3333380
Remarks	DIN13 , ISO 68-1, ISO 965 (1&2) - External tolerance: 6g ANSI/ASME B1.1 - External tolerance: 2A
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Threading (Ext.) Groove Turn T \|
APP1Name	Threading (Ext.) Groove Turn T
ItemRemark
Coating	Uncoated
Cutting Edge Material	Carbide
Tool Type	Threading Regular Inserts
Point Shape
Measurement Type	Metric
Applicable Material	\| Stainless Steel \| Aluminum / Non-Ferrous Materials \| Super-Alloys / Titanium \|
Thread Standard	THFT \|
Package Weight	0.0066
Style
MSDS	07999
LocalField1	21
Body Material	Carbide
ManufacturerNo	3333380
Grade	IC07
Corner Radius (RE)	0.1 mm
Cutting Edge Length (L)	22 mm
Insert Thickness (S)	7 mm
Thread Form Type (THFT)	VP60
Thread Pitch Maximum (TPX)	1.7 mm
Thread Pitch Minimum (TPN)	0.9 mm
Threads per Inch Maximum (TPIX)	28
Threads per Inch Minimum (TPIN)	15
