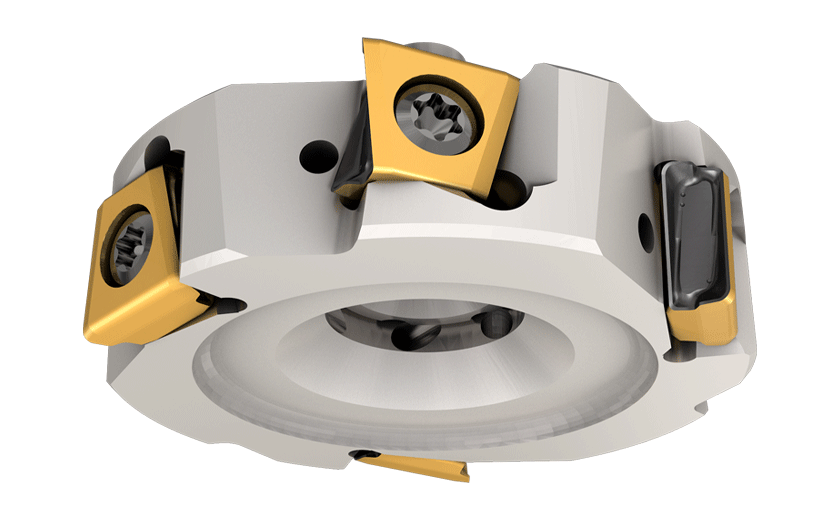

SD D040-07-SP17-T490-05-Interchangeable T-SLOT with SP connection carrying T490 0502 PNTN inserts with 2 right- and 2 left-hand cutting edges

Dostępność: duża ilość

Cena brutto: 5 052,44 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

5052.44

Cena netto: 4 107,67 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 3 495,90 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3440230

SD D040-07-SP17-T490-05

Podstawowe informacje
FamilyName	SD-T490
ToolType	Tool
Unit	M
PackSize	1
product_code	ISC3440230
ProductName	SD D040-07-SP17-T490-05
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Interchangeable T-SLOT with SP connection carrying T490 0502 PNTN inserts with 2 right- and 2 left-hand cutting edges
FamilyShortDesc	Interchangeable T-SLOT with SP Connection Carrying T490 0502 PNTN Inserts with 2 Right- and 2 Left-Hand Cutting Edges
Link	https://www.Iscar.com/ecat/e.asp?cat=3440230
Remarks
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Bottom Shouldering \| Facing \| Shouldering \| Side Slotting \| Slotting \| T Slotting \|
APP1Name	T Slotting
APP2Name	Bottom Shouldering
APP3Name	Facing
APP4Name	Shouldering
APP5Name	Side Slotting
APP6Name	Slotting
ItemRemark
Tool Type	Double-sided slotting cutters
Point Shape
Measurement Type	Metric
Thread Standard
Package Weight
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3440230
Connection Code Machine Side (CCMS)	Disk type
Cutting Diameter (DC)	39.7 mm
Cutting Depth Maximum (CDX)	11.25 mm
Depth of Cut Maximum (APMX)	7 mm
Flute Count (NOF)	10
Hub Diameter (DHUB)	17 mm
Master Insert Identification (MIID)	T490 LNHT 0502-PNTN
Overall Length (OAL)	10.5 mm
Peripheral Effective Cutting Edge Count (ZEFP)	5
