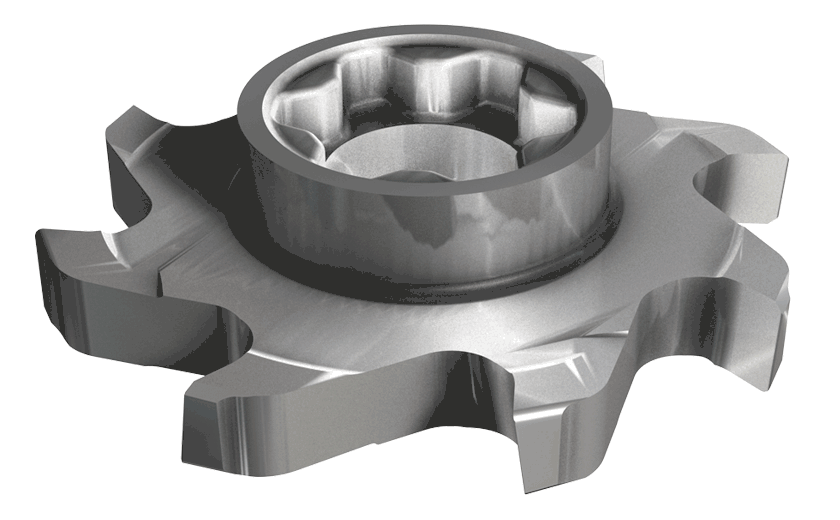

SD D1.00-H156D-SP13 IC908-Interchangeable solid carbide T-Slot milling heads.

Dostępność: duża ilość

Cena brutto: 385,07 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

385.07

Cena netto: 313,07 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 427,85 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3432143

SD D1.00-H156D-SP13 IC908

Podstawowe informacje
FamilyName	SD-SP
ToolType	Solid
Unit	I
PackSize	1
product_code	ISC3432143
ProductName	SD D1.00-H156D-SP13 IC908
COO	Israel
UOM	EA
UNSPSC	23241614
FamilyDesc	Interchangeable solid carbide T-Slot milling heads.
FamilyShortDesc	Interchangeable Solid Carbide T-Slot Milling Heads
Link	https://www.Iscar.com/ecat/e.asp?cat=3432143
Remarks	For machining recommendations, click on More Info
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Internal Groove Milling \| Side Slotting \| T Slotting \|
APP1Name	T Slotting
APP2Name	Internal Groove Milling
APP3Name	Side Slotting
ItemRemark
Coating	TiAlN
Cutting Edge Material	Carbide
Tool Type	Solid "T" slot cutters
Point Shape
Measurement Type	Inch
Applicable Material	\| Steel \| Stainless Steel \| Cast Iron \| Hard Materials \| Super-Alloys / Titanium \|
Thread Standard
Package Weight	0.0705
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	3432143
Grade	IC908
Connection Diameter Machine Side (DCONMS)	0.512"
Corner Radius (RE)	0.016"
Cutting Diameter (DC)	0.988"
Cutting Depth Maximum (CDX)	0.224"
Cutting Width (CW)	0.156"
Flute Count (NOF)	6
Fixing Hole Diameter (D1)	0.295"
Overall Length (OAL)	0.327"
Tool Cutting Edge Angle (KAPR)	90 Degrees
