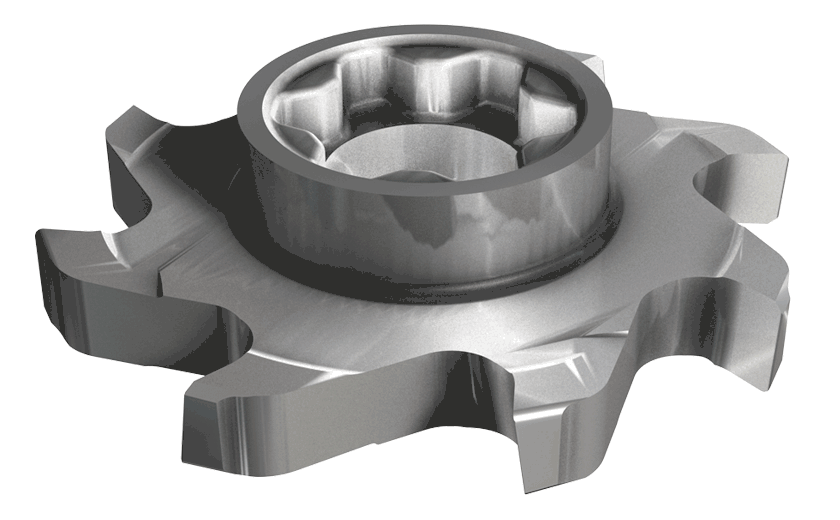

SD D1.00-H250D-SP13 IC908-Interchangeable solid carbide T-Slot milling heads.

Dostępność: duża ilość

Cena brutto: 398,61 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

398.61

Cena netto: 324,07 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 442,90 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3432145

SD D1.00-H250D-SP13 IC908

Podstawowe informacje
FamilyName	SD-SP
ToolType	Solid
Unit	I
PackSize	1
product_code	ISC3432145
ProductName	SD D1.00-H250D-SP13 IC908
COO	Israel
UOM	EA
UNSPSC	23241614
FamilyDesc	Interchangeable solid carbide T-Slot milling heads.
FamilyShortDesc	Interchangeable Solid Carbide T-Slot Milling Heads
Link	https://www.Iscar.com/ecat/e.asp?cat=3432145
Remarks	For machining recommendations, click on More Info
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Internal Groove Milling \| Side Slotting \| T Slotting \|
APP1Name	T Slotting
APP2Name	Internal Groove Milling
APP3Name	Side Slotting
ItemRemark
Coating	TiAlN
Cutting Edge Material	Carbide
Tool Type	Solid "T" slot cutters
Point Shape
Measurement Type	Inch
Applicable Material	\| Steel \| Stainless Steel \| Cast Iron \| Hard Materials \| Super-Alloys / Titanium \|
Thread Standard
Package Weight	0.0860
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	3432145
Grade	IC908
Connection Diameter Machine Side (DCONMS)	0.512"
Corner Radius (RE)	0.016"
Cutting Diameter (DC)	0.988"
Cutting Depth Maximum (CDX)	0.224"
Cutting Width (CW)	1/4"
Flute Count (NOF)	6
Fixing Hole Diameter (D1)	0.295"
Overall Length (OAL)	0.327"
Tool Cutting Edge Angle (KAPR)	90 Degrees
