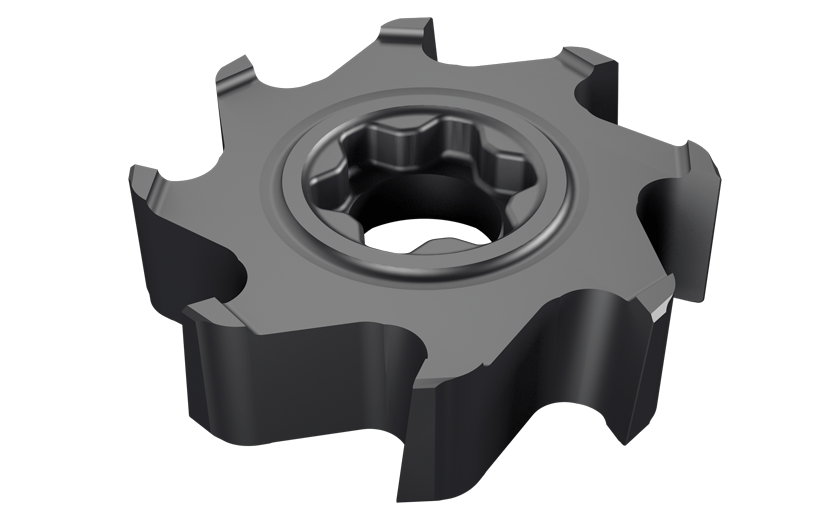

SD FM D1.50-375D-SP17 IC908-Interchangeable solid carbide face milling heads.

Dostępność: duża ilość

Cena brutto: 708,21 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

708.21

Cena netto: 575,78 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 786,90 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3348202

SD FM D1.50-375D-SP17 IC908

Podstawowe informacje
FamilyName	SD FM
ToolType	Solid
Unit	I
PackSize	1
product_code	ISC3348202
ProductName	SD FM D1.50-375D-SP17 IC908
COO	Israel
UOM	EA
UNSPSC	23241614
FamilyDesc	Interchangeable solid carbide face milling heads.
FamilyShortDesc	Interchangeable Solid Carbide Face Milling Heads
Link	https://www.Iscar.com/ecat/e.asp?cat=3348202
Remarks	For machining recommendations, click on More Info
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Facing \| Shouldering \|
APP1Name	Facing
APP2Name	Shouldering
ItemRemark
Coating	TiAlN
Cutting Edge Material	Carbide
Point Shape
Measurement Type	Inch
Applicable Material	\| Steel \| Stainless Steel \| Cast Iron \| Hard Materials \| Super-Alloys / Titanium \|
Thread Standard
Package Weight	0.2557
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	3348202
Grade	IC908
Connection Diameter Machine Side (DCONMS)	0.669"
Corner Radius (RE)	0.0157"
Cutting Diameter (DC)	1-1/2"
Depth of Cut Maximum (APMX)	3/8"
Flute Count (NOF)	10
Fixing Hole Diameter (D1)	0.385"
Functional Length (LF)	0.393"
Maximum Feed per Tooth (fz(max))	0.006 "/tooth
Minimum Feed per Tooth (fz(min))	0.0016 "/tooth
Overall Length (OAL)	0.393"
