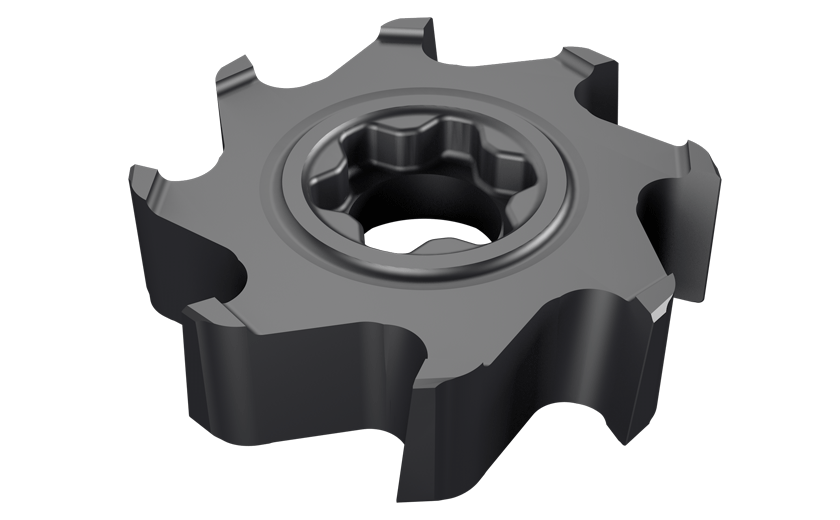

SD FM D2.00-468D-SP19 IC908-Interchangeable solid carbide face milling heads.

Dostępność: duża ilość

Cena brutto: 1 234,53 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

1234.53

Cena netto: 1 003,68 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 1 371,70 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3348203

SD FM D2.00-468D-SP19 IC908

Podstawowe informacje
FamilyName	SD FM
ToolType	Solid
Unit	I
PackSize	1
product_code	ISC3348203
ProductName	SD FM D2.00-468D-SP19 IC908
COO	Israel
UOM	EA
UNSPSC	23241614
FamilyDesc	Interchangeable solid carbide face milling heads.
FamilyShortDesc	Interchangeable Solid Carbide Face Milling Heads
Link	https://www.Iscar.com/ecat/e.asp?cat=3348203
Remarks	For machining recommendations, click on More Info
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Facing \| Shouldering \|
APP1Name	Facing
APP2Name	Shouldering
ItemRemark
Coating	TiAlN
Cutting Edge Material	Carbide
Point Shape
Measurement Type	Inch
Applicable Material	\| Steel \| Stainless Steel \| Cast Iron \| Hard Materials \| Super-Alloys / Titanium \|
Thread Standard
Package Weight	0.5115
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	3348203
Grade	IC908
Connection Diameter Machine Side (DCONMS)	0.748"
Corner Radius (RE)	0.0157"
Cutting Diameter (DC)	1.93"
Depth of Cut Maximum (APMX)	0.468"
Flute Count (NOF)	12
Fixing Hole Diameter (D1)	0.385"
Functional Length (LF)	0.551"
Maximum Feed per Tooth (fz(max))	0.006 "/tooth
Minimum Feed per Tooth (fz(min))	0.0016 "/tooth
Overall Length (OAL)	0.551"
