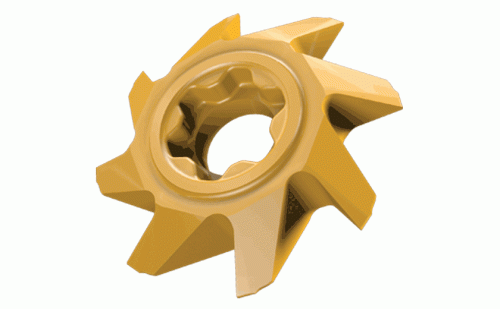

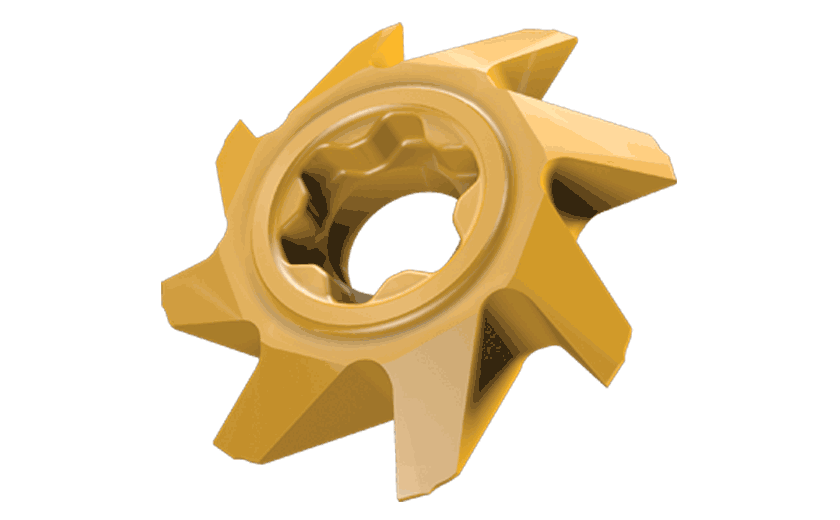

SD TRD32-M60-6P-SP15 IC908-Interchangeable solid carbide heads for 60° partial profile thread milling.

Dostępność: duża ilość

Cena brutto: 526,32 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

526.32

Cena netto: 427,90 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 584,80 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3311844

SD TRD32-M60-6P-SP15 IC908

Podstawowe informacje
FamilyName	SD TRD-M-SP
ToolType	Solid
Unit	M
PackSize	1
product_code	ISC3311844
ProductName	SD TRD32-M60-6P-SP15 IC908
COO	Israel
UOM	EA
UNSPSC	23242117
FamilyDesc	Interchangeable solid carbide heads for 60° partial profile thread milling.
FamilyShortDesc	Interchangeable Solid Carbide Heads for 60° Partial Profile Thread Milling
Link	https://www.Iscar.com/ecat/e.asp?cat=3311844
Remarks	DIN13 , ISO 68-1, ISO 965 (1&2) - Internal tolerance: 6H, External tolerance: 6g ANSI/ASME B1.1 - Internal tolerance: 2B, External tolerance: 2A
FamilyBrand	Iscar
BrandName	Iscar
Application	\| External Thread Milling \| Internal Thread Milling \|
APP1Name	External Thread Milling
APP2Name	Internal Thread Milling
ItemRemark
Coating	TiAlN
Cutting Edge Material	Carbide
Tool Type	Solid "T" slot cutters
Point Shape
Measurement Type	Metric
Applicable Material	\| Steel \| Stainless Steel \| Cast Iron \| Hard Materials \| Super-Alloys / Titanium \|
Thread Standard	THFT \|
Package Weight	0.0300
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	3311844
Grade	IC908
Functional Length (LF)	0 mm
Overall Length (OAL)	7.7 mm
Thread Form Type (THFT)	VP60
