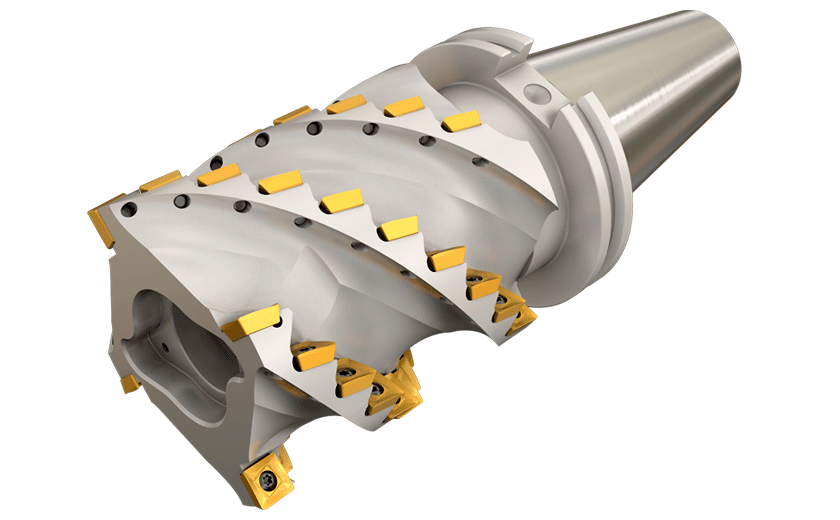

» SDK D100-105CAT50-FT-Basic units of modular extended flute endmills with Caterpillar tapered shanks using S/QDMT 1205... inserts. Cay be used with many extension options.

SDK D100-105CAT50-FT-Basic units of modular extended flute endmills with Caterpillar tapered shanks using S/QDMT 1205... inserts. Cay be used with many extension options.

Dostępność: duża ilość

Cena brutto: 15 325,20 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

15325.20

Cena netto: 12 459,51 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 17 028,00 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3110580

SDK D100-105CAT50-FT

Podstawowe informacje
FamilyName	SDK CAT-FT
ToolType	Tool
Unit	I
PackSize	1
product_code	ISC3110580
ProductName	SDK D100-105CAT50-FT
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Basic units of modular extended flute endmills with Caterpillar tapered shanks using S/QDMT 1205... inserts. Cay be used with many extension options.
FamilyShortDesc	Basic Units of Modular Extended Flute Endmills Using S/QDMT 1205... Inserts. Can be Used with Many Extension Options
Link	https://www.Iscar.com/ecat/e.asp?cat=3110580
Remarks
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Shouldering \| Slotting \|
APP1Name	Shouldering
APP2Name	Slotting
ItemRemark
Tool Type	90° Extended flute endmills
Point Shape
Measurement Type	Inch
Thread Standard
Package Weight	16.4134
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3110580
Connection Code Machine Side (CCMS)	CAT
Connection Diameter Machine Side (DCONMS)	50"
Coolant Supply Property (CSP)	External
Cutting Diameter (DC)	3.937"
Cutting Direction (HAND)	Right Hand
Cutting Item Count (CICT)	40
Depth of Cut Maximum (APMX)	4.13"
Flute Count (NOF)	4
Master Insert Identification (MIID)	SDMT 1205
Overall Length (OAL)	9.95"
