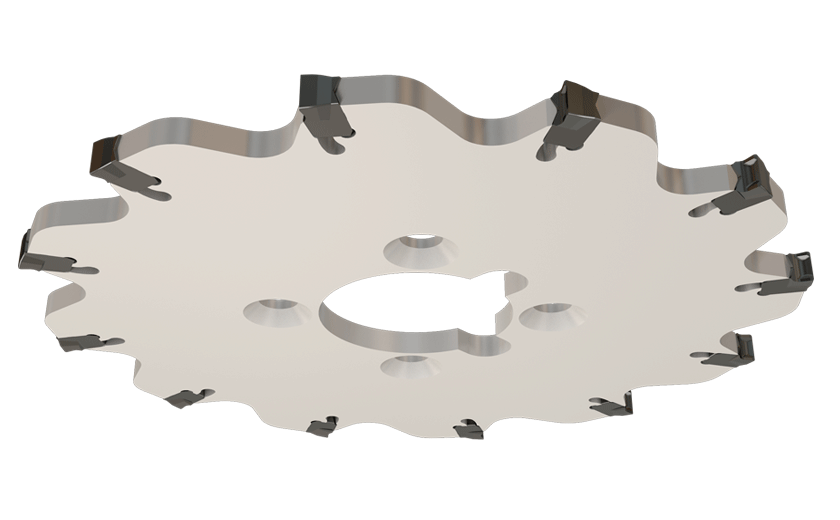

SGSA 125-3-32K-16Z-FP-Slitting cutters Carrying GSAN self-clamped inserts.

Dostępność: duża ilość

Cena brutto: 7 027,34 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

7027.34

Cena netto: 5 713,28 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 4 601,00 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 2301806

SGSA 125-3-32K-16Z-FP

Podstawowe informacje
FamilyName	SGSA
ToolType	Tool
Unit	M
PackSize	1
product_code	ISC2301806
ProductName	SGSA 125-3-32K-16Z-FP
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Slitting cutters Carrying GSAN self-clamped inserts.
FamilyShortDesc	Slitting Cutters Carrying GSAN Self-Clamped Inserts
Link	https://www.Iscar.com/ecat/e.asp?cat=2301806
Remarks	For LB,DBS,D4 refer to SW/S drive shanks and R drive flange set Maximum RPM may not be exceeded
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Side Slotting \| Slitting \| T Slotting \|
APP1Name	T Slotting
APP2Name	Side Slotting
APP3Name	Slitting
ItemRemark
Tool Type	Slitting cutters
Point Shape
Measurement Type	Metric
Thread Standard
Package Weight	0.3300
Style
MSDS	07995
LocalField1	21
Body Material	Steel
ManufacturerNo	2301806
Connection Code Machine Side (CCMS)	Disk type
Cutting Diameter (DC)	125 mm
Cutting Depth Maximum (CDX)	25 mm
Cutting Item Count (CICT)	16
Cutting Width Maximum (CWX)	3.53 mm
Cutting Width Minimum (CWN)	2.7 mm
Hub Thickness (THUB)	2.4 mm
Master Insert Identification (MIID)	GSAN 3
Peripheral Effective Cutting Edge Count (ZEFP)	16
Rotational Speed Maximum (RPMX)	635 Rev/min
