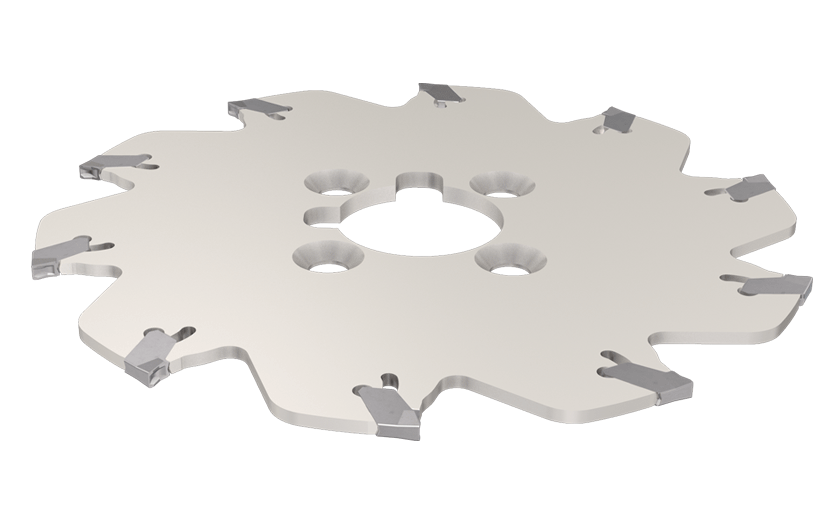

SGSF 100-3-22K-Slitting cutters carrying SELF-GRIP inserts

Dostępność: duża ilość

Cena brutto: 4 710,21 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

4710.21

Cena netto: 3 829,44 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 3 078,80 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 2300679

SGSF 100-3-22K

Podstawowe informacje
FamilyName	SGSF
ToolType	Tool
Unit	M
PackSize	1
product_code	ISC2300679
ProductName	SGSF 100-3-22K
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Slitting cutters carrying SELF-GRIP inserts
FamilyShortDesc	Slitting Cutters Carrying Self-Clamped Inserts
Link	https://www.Iscar.com/ecat/e.asp?cat=2300679
Remarks	Only the K type cutters feature 4 driving holes around the central hole; can be driven by the R drive shanks Refer to SW/S drive shanks and R driving flange set.
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Side Slotting \| Slitting \| Slotting \| T Slotting \|
APP1Name	T Slotting
APP2Name	Side Slotting
APP3Name	Slitting
APP4Name	Slotting
ItemRemark	CDX=26, DHUB=46 when used with drive flange
Tool Type	Slitting cutters
Point Shape
Measurement Type	Metric
Thread Standard
Package Weight	0.1790
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	2300679
Connection Code Machine Side (CCMS)	Disk type
Cutting Diameter (DC)	100 mm
Cutting Depth Maximum (CDX)	29 mm
Cutting Item Count (CICT)	6
Cutting Width Maximum (CWX)	3.53 mm
Cutting Width Minimum (CWN)	2.7 mm
Hub Diameter (DHUB)	40 mm
Hub Thickness (THUB)	2.4 mm
Master Insert Identification (MIID)	GSFN 3
Peripheral Effective Cutting Edge Count (ZEFP)	6
Rotational Speed Maximum (RPMX)	800 Rev/min
