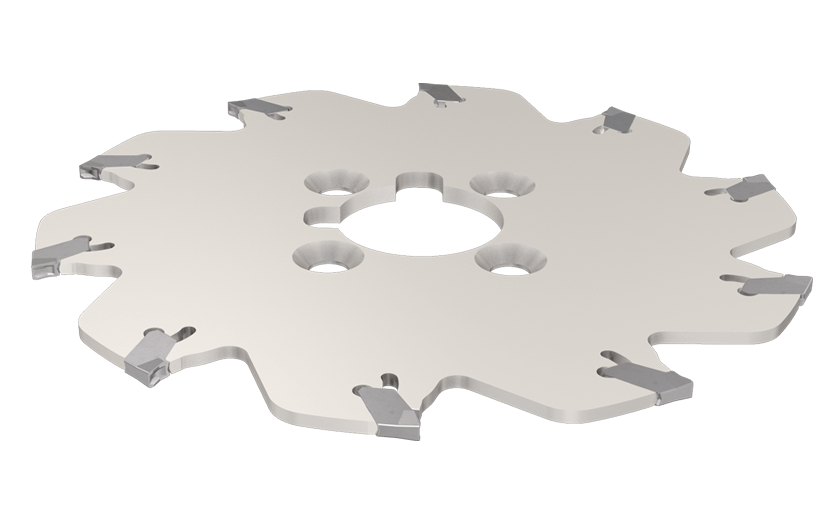

SGSF 100-4-1.00K-Slitting cutters carrying SELF-GRIP inserts

Dostępność: duża ilość

Cena brutto: 4 950,79 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

4950.79

Cena netto: 4 025,03 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 3 237,90 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 2300680

SGSF 100-4-1.00K

Podstawowe informacje
FamilyName	SGSF
ToolType	Tool
Unit	I
PackSize	1
product_code	ISC2300680
ProductName	SGSF 100-4-1.00K
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Slitting cutters carrying SELF-GRIP inserts
FamilyShortDesc	Slitting Cutters Carrying Self-Clamped Inserts
Link	https://www.Iscar.com/ecat/e.asp?cat=2300680
Remarks	Only the K type cutters feature 4 driving holes around the central hole; can be driven by the R drive shanks Refer to SW/S drive shanks and R driving flange set.
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Side Slotting \| Slitting \| Slotting \| T Slotting \|
APP1Name	T Slotting
APP2Name	Side Slotting
APP3Name	Slitting
APP4Name	Slotting
ItemRemark
Tool Type	Slitting cutters
Point Shape
Measurement Type	Inch
Thread Standard
Package Weight	0.4431
Style
MSDS	07995
LocalField1	21
Body Material	Steel
ManufacturerNo	2300680
Connection Code Machine Side (CCMS)	Disk type
Cutting Diameter (DC)	3.94"
Cutting Depth Maximum (CDX)	1.04"
Cutting Item Count (CICT)	6
Cutting Width Maximum (CWX)	0.18"
Cutting Width Minimum (CWN)	0.14"
Hub Diameter (DHUB)	1.57"
Hub Thickness (THUB)	0.13"
Master Insert Identification (MIID)	GSFN 4
Peripheral Effective Cutting Edge Count (ZEFP)	6
Rotational Speed Maximum (RPMX)	800 Rev/min
