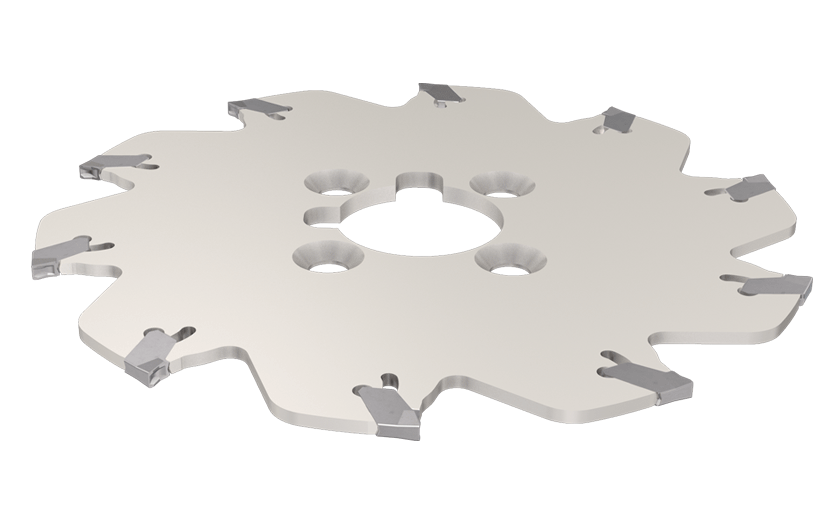

SGSF 125-6-1.250K-Slitting cutters carrying SELF-GRIP inserts

Dostępność: duża ilość

Cena brutto: 3 753,90 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

3753.90

Cena netto: 3 051,95 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 4 171,00 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 2301372

SGSF 125-6-1.250K

Podstawowe informacje
FamilyName	SGSF
ToolType	Tool
Unit	I
PackSize	1
product_code	ISC2301372
ProductName	SGSF 125-6-1.250K
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Slitting cutters carrying SELF-GRIP inserts
FamilyShortDesc	Slitting Cutters Carrying Self-Clamped Inserts
Link	https://www.Iscar.com/ecat/e.asp?cat=2301372
Remarks	Only the K type cutters feature 4 driving holes around the central hole; can be driven by the R drive shanks Refer to SW/S drive shanks and R driving flange set.
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Side Slotting \| Slitting \| Slotting \| T Slotting \|
APP1Name	T Slotting
APP2Name	Side Slotting
APP3Name	Slitting
APP4Name	Slotting
ItemRemark
Tool Type	Slitting cutters
Point Shape
Measurement Type	Inch
Thread Standard
Package Weight	1.0296
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	2301372
Connection Code Machine Side (CCMS)	Disk type
Cutting Diameter (DC)	4.92"
Cutting Depth Maximum (CDX)	1.36"
Cutting Item Count (CICT)	8
Cutting Width Maximum (CWX)	0.26"
Cutting Width Minimum (CWN)	0.22"
Hub Diameter (DHUB)	2.16"
Hub Thickness (THUB)	0.2"
Master Insert Identification (MIID)	GSFN 6C
Peripheral Effective Cutting Edge Count (ZEFP)	8
Rotational Speed Maximum (RPMX)	640 Rev/min
