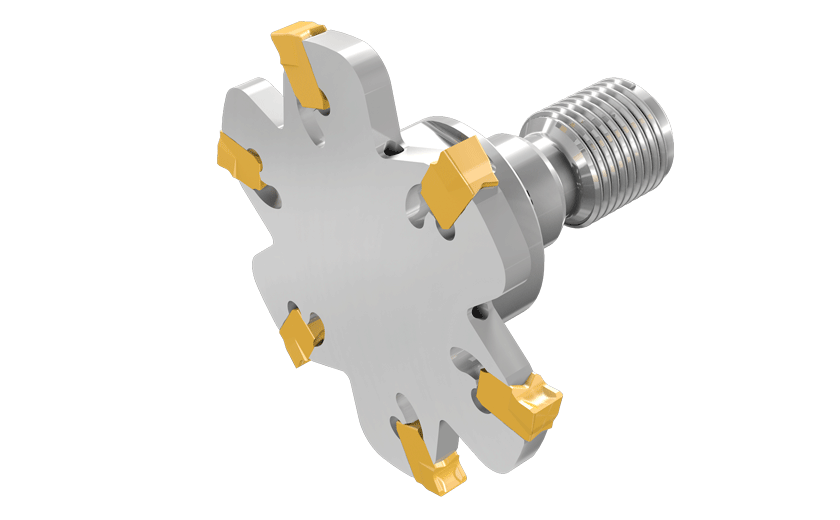

SGSF 40-2-M10-4Z-JHP-Grooving and slitting small diameter cutters with FLEXFIT threaded adaptation, carrying SELF-GRIP GSFN inserts.

Dostępność: duża ilość

Cena brutto: 6 103,02 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

6103.02

Cena netto: 4 961,80 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 3 990,40 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3345213

SGSF 40-2-M10-4Z-JHP

Podstawowe informacje
FamilyName	SGSF/A-M-JHP
ToolType	Tool
Unit	M
PackSize	1
product_code	ISC3345213
ProductName	SGSF 40-2-M10-4Z-JHP
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Grooving and slitting small diameter cutters with FLEXFIT threaded adaptation, carrying SELF-GRIP GSFN inserts.
FamilyShortDesc	Grooving and Slitting Small Diameter Cutters with FLEXFIT Threaded Adaptation
Link	https://www.Iscar.com/ecat/e.asp?cat=3345213
Remarks	For best performance use internal coolant with CH type shanks For adaptation, click on More Info When mounting items with FLEXFIT threaded adaptation, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3parameter
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Side Slotting \| Slitting \| T Slotting \|
APP1Name	T Slotting
APP2Name	Side Slotting
APP3Name	Slitting
ItemRemark
Point Shape
Measurement Type	Metric
Thread Standard
Package Weight	0.0530
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3345213
Connection Code Machine Side (CCMS)	FLEXFIT
Connection Diameter Machine Side (DCONMS)	18 mm
Connection Thread Nominal Size Machine Side (THSZMS)	M10
Cutting Diameter (DC)	40 mm
Cutting Depth Maximum (CDX)	10 mm
Cutting Item Count (CICT)	4
Cutting Width (CW)	2 mm
Drive Size (DRVS)	15 mm
Functional Length (LF)	11 mm
Master Insert Identification (MIID)	GSFN 2...
Overall Length (OAL)	29.5 mm
