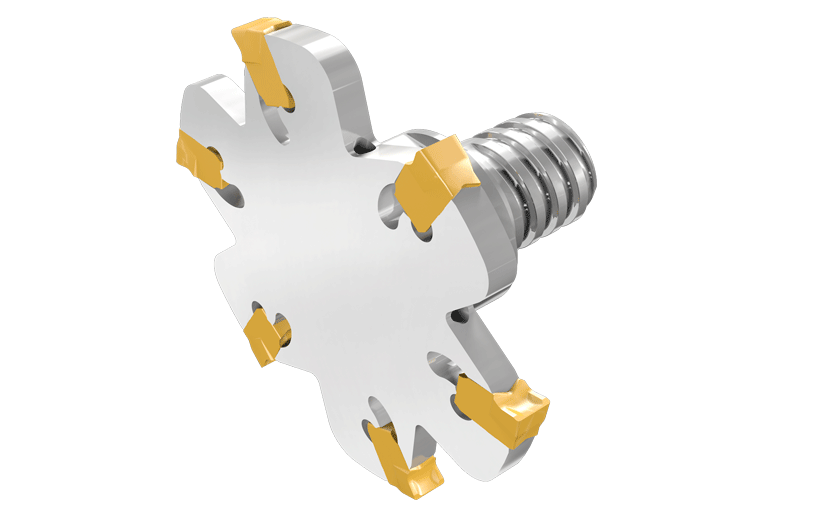

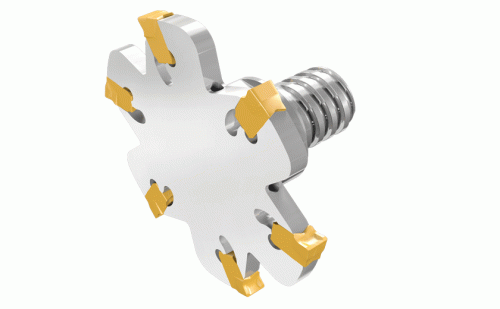

SGSF 40-2-MMT10-4Z-JHP-Grooving and slitting small diameter cutters with the MULTI-MASTER threaded adaptor, carrying SELF-GRIP GSFN inserts.

Dostępność: duża ilość

Cena brutto: 6 394,24 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

6394.24

Cena netto: 5 198,57 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 4 192,50 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3345224

SGSF 40-2-MMT10-4Z-JHP

Podstawowe informacje
FamilyName	SGSF/A-MM-JHP
ToolType	Tool
Unit	M
PackSize	1
product_code	ISC3345224
ProductName	SGSF 40-2-MMT10-4Z-JHP
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Grooving and slitting small diameter cutters with the MULTI-MASTER threaded adaptor, carrying SELF-GRIP GSFN inserts.
FamilyShortDesc	Grooving and Slitting Small Diameter Cutters with the MULTI-MASTER Threaded Adaptor
Link	https://www.Iscar.com/ecat/e.asp?cat=3345224
Remarks	For best performance use internal coolant with CH type shanks For adaptation, click on More Info
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Side Slotting \| Slitting \| T Slotting \|
APP1Name	T Slotting
APP2Name	Side Slotting
APP3Name	Slitting
ItemRemark
Point Shape
Measurement Type	Metric
Thread Standard
Package Weight	0.0440
Style
MSDS	07995
LocalField1	21
Body Material	Steel
ManufacturerNo	3345224
Connection Code Machine Side (CCMS)	MultiMaster
Connection Diameter Machine Side (DCONMS)	15.3 mm
Connection Thread Nominal Size Machine Side (THSZMS)	T10
Cutting Diameter (DC)	40 mm
Cutting Depth Maximum (CDX)	11.3 mm
Cutting Item Count (CICT)	4
Cutting Width (CW)	2 mm
Drive Size (DRVS)	13 mm
Functional Length (LF)	10.6 mm
Master Insert Identification (MIID)	GSFN 2...
Overall Length (OAL)	21.9 mm
