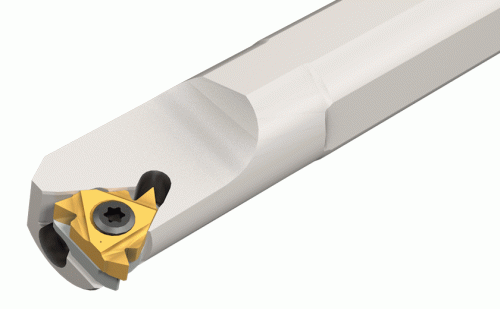

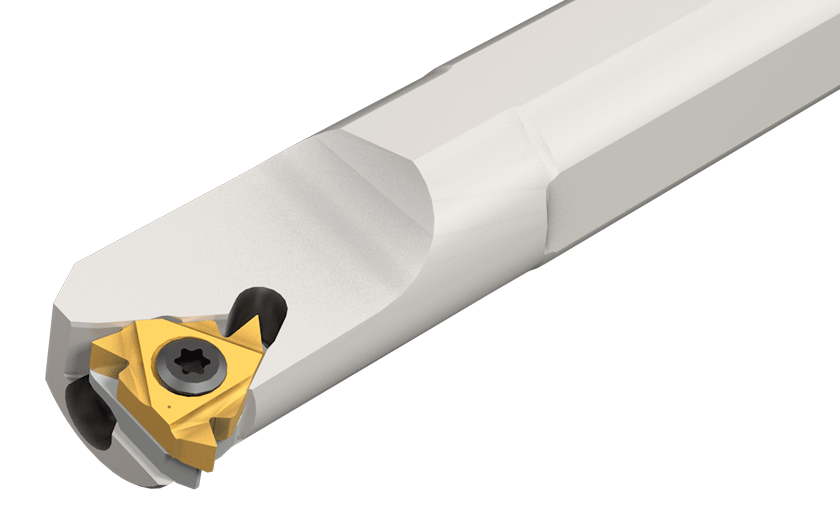

SIR 0375 K11B-Internal threading bars

Dostępność: duża ilość

Cena brutto: 684,99 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

684.99

Cena netto: 556,90 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 761,10 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3892065

SIR 0375 K11B

Podstawowe informacje
FamilyName	SIR/L
ToolType	Tool
Unit	I
PackSize	1
product_code	ISC3892065
ProductName	SIR 0375 K11B
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Internal threading bars
FamilyShortDesc	Internal Threading Bars
Link	https://www.Iscar.com/ecat/e.asp?cat=3892065
Remarks	B-steel shank with coolant hole, C-carbide shank without coolant hole, CB-carbide shank with coolant hole All toolholders are made for 1.5 helix angle For GTGA inserts, use anvil AL 16-0
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Int. Grooving \| Internal Threading lay down \|
APP1Name	Int. Grooving
APP2Name	Internal Threading lay down
ItemRemark	Toolholder without anvil
Tool Type	Internal Indexable Threading Tools
Point Shape
Measurement Type	Inch
Thread Standard
Package Weight	0.4012
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3892065
Connection Diameter Machine Side (DCONMS)	5/8"
Coolant Supply Property (CSP)	Coolant Thru
Cutting Direction (HAND)	Right Hand
Head Length (LH)	0.98"
Minimum Bore Diameter (DMIN)	0.47"
