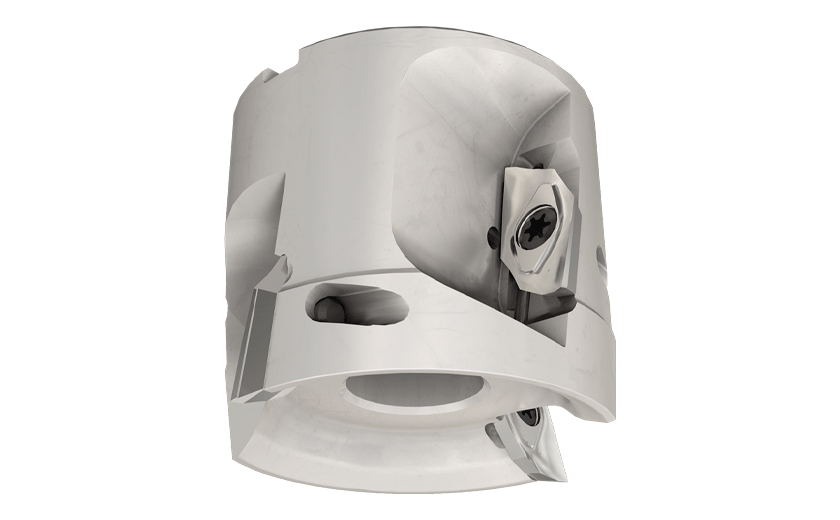

SM D2.50-1.18-1.00-16-Extended flute shell mills carrying HM90 APCR 1605... inserts for machining aluminum

Dostępność: duża ilość

Cena brutto: 3 057,30 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

3057.30

Cena netto: 2 485,61 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 3 397,00 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3103047

SM D2.50-1.18-1.00-16

Podstawowe informacje
FamilyName	SM-16
ToolType	Tool
Unit	I
PackSize	1
product_code	ISC3103047
ProductName	SM D2.50-1.18-1.00-16
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Extended flute shell mills carrying HM90 APCR 1605... inserts for machining aluminum
FamilyShortDesc	Extended Flute Shell Mills Carrying HM90 APCR 1605... Inserts for Machining Aluminum
Link	https://www.Iscar.com/ecat/e.asp?cat=3103047
Remarks	The upper insert should always have a .016 corner radius For corner radii larger than .079, tool body should be modified Insert tightening torque: 53 (Lbf x in) For adaptation click on More Info
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Facing \| Rampdown \| Shouldering \|
APP1Name	Facing
APP2Name	Rampdown
APP3Name	Shouldering
ItemRemark
Tool Type	Extnd. flute for Aluminum
Point Shape
Measurement Type	Inch
Thread Standard
Package Weight	1.8960
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3103047
Arbor Style	A
Connection Diameter Machine Side (DCONMS)	1"
Coolant Supply Property (CSP)	Coolant Thru
Cutting Diameter (DC)	2-1/2"
Cutting Direction (HAND)	Right Hand
Cutting Item Count (CICT)	4
Depth of Cut Maximum (APMX)	1.18"
Flute Count (NOF)	2
Hub Diameter (DHUB)	2.36"
Master Insert Identification (MIID)	HM90 APCR 160502R-P
Overall Length (OAL)	2.16"
