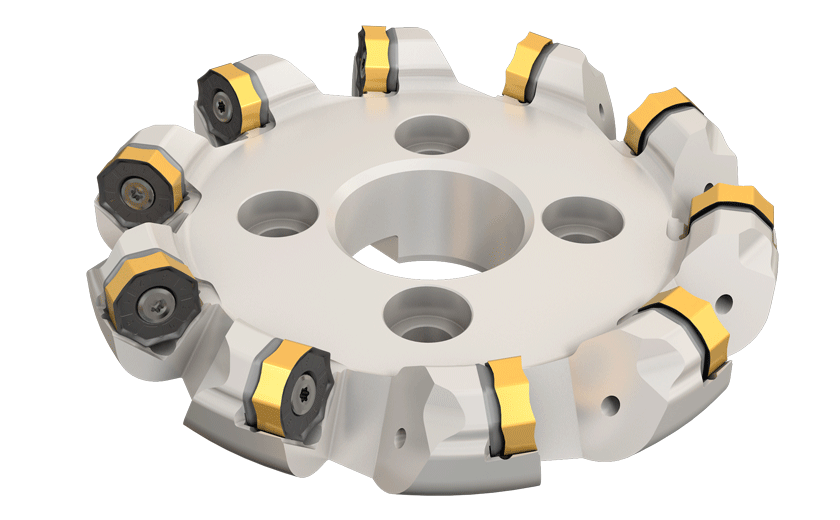

SOF45 D4.0-05-1.50-R26-Heavy duty 45° face mills carrying square or octagonal double-sided inserts with 8/16 cutting edges.

Dostępność: duża ilość

Cena brutto: 3 722,94 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

3722.94

Cena netto: 3 026,78 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 4 136,60 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3106619

SOF45 D4.0-05-1.50-R26

Podstawowe informacje
FamilyName	SOF45-26
ToolType	Tool
Unit	I
PackSize	1
product_code	ISC3106619
ProductName	SOF45 D4.0-05-1.50-R26
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Heavy duty 45° face mills carrying square or octagonal double-sided inserts with 8/16 cutting edges.
FamilyShortDesc	Heavy Duty 45° Face Mills Carrying Square or Octagonal Double-Sided Inserts with 8/16 Cutting Edges
Link	https://www.Iscar.com/ecat/e.asp?cat=3106619
Remarks
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Facing \| Slanted Shoulder & Chamfer \|
APP1Name	Facing
APP2Name	Slanted Shoulder & Chamfer
ItemRemark
Tool Type	45° Facemills
Point Shape
Measurement Type	Inch
Thread Standard
Package Weight	5.7210
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3106619
Arbor Style	B
Connection Diameter Machine Side (DCONMS)	1-1/2"
Coolant Supply Property (CSP)	Coolant Thru
Cutting Diameter (DC)	4.16"
Cutting Diameter (DC/DCX)	4.9"
Cutting Diameter Maximum (DCX)	4.9"
Cutting Direction (HAND)	Right Hand
Cutting Item Count (CICT)	5
Depth of Cut Maximum (APMX)	0.433"
Hub Diameter (DHUB)	3.27"
Master Insert Identification (MIID)	ONMU 100816-N-HL
Overall Length (OAL)	2-1/2"
Tool Cutting Edge Angle (KAPR)	44 Degrees
