» SPN D032-06-HSK 63R-BRC02 ID8-90° endmills with HSK adaptation on which brazed PCD inserts are mounted for machining aluminum at high rotational speeds with IT.TE.DI. tools

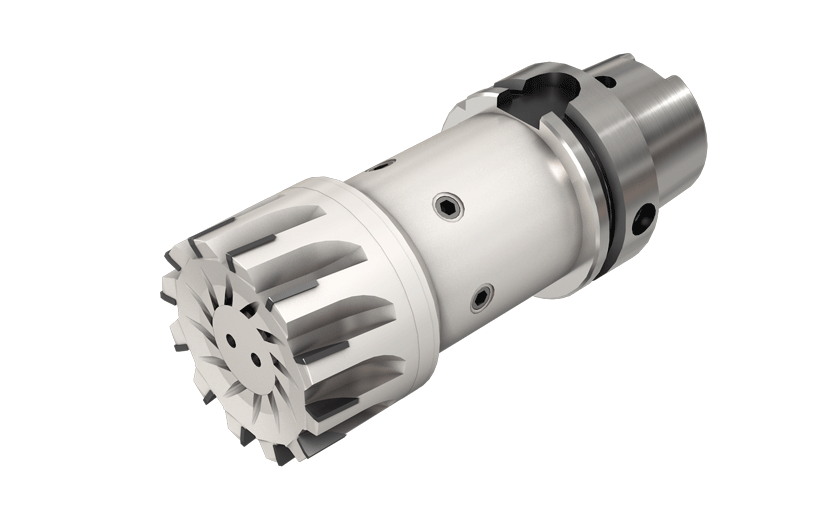

SPN D032-06-HSK 63R-BRC02 ID8-90° endmills with HSK adaptation on which brazed PCD inserts are mounted for machining aluminum at high rotational speeds with IT.TE.DI. tools

Dostępność: duża ilość

Cena brutto: 5 727,60 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

5727.60

Cena netto: 4 656,59 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 6 364,00 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3451998

SPN D032-06-HSK 63R-BRC02 ID8

Podstawowe informacje
FamilyName	SPN D-HSK-R IT
ToolType	Tool
Unit	M
PackSize	1
product_code	ISC3451998
ProductName	SPN D032-06-HSK 63R-BRC02 ID8
COO	Italy
UOM	EA
UNSPSC	23242106
FamilyDesc	90° endmills with HSK adaptation on which brazed PCD inserts are mounted for machining aluminum at high rotational speeds with IT.TE.DI. tools
FamilyShortDesc	90° Endmills with HSK Adaptation on Which Brazed PCD Inserts for Machining Aluminum at High Rotational Speeds
Link	https://www.Iscar.com/ecat/e.asp?cat=3451998
Remarks	A cooling tube must be used with all internal coolant HSK spindles (to be order separately)
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Facing \| HSK DIN69893 (ISO 12164 1) \| Shouldering \|
APP1Name	Facing
APP2Name	HSK DIN69893 (ISO 12164 1)
APP3Name	Shouldering
ItemRemark
Point Shape
Measurement Type	Metric
Thread Standard
Package Weight
Style
MSDS	07995
LocalField1	21
Body Material	Steel
ManufacturerNo	3451998
Connection Diameter Machine Side (DCONMS)	63 mm
Coolant Supply Property (CSP)	Coolant Thru
Cutting Diameter (DC)	31.6 mm
Cutting Diameter (DC/DCX)	32 mm
Cutting Diameter Maximum (DCX)	32 mm
Cutting Item Count (CICT)	6
Depth of Cut Maximum (APMX)	15 mm
