» SPN D125-20-HSK 63R-BRC02 ID5-90° endmills with HSK adaptation on which brazed PCD inserts are mounted for machining aluminum at high rotational speeds with IT.TE.DI. tools

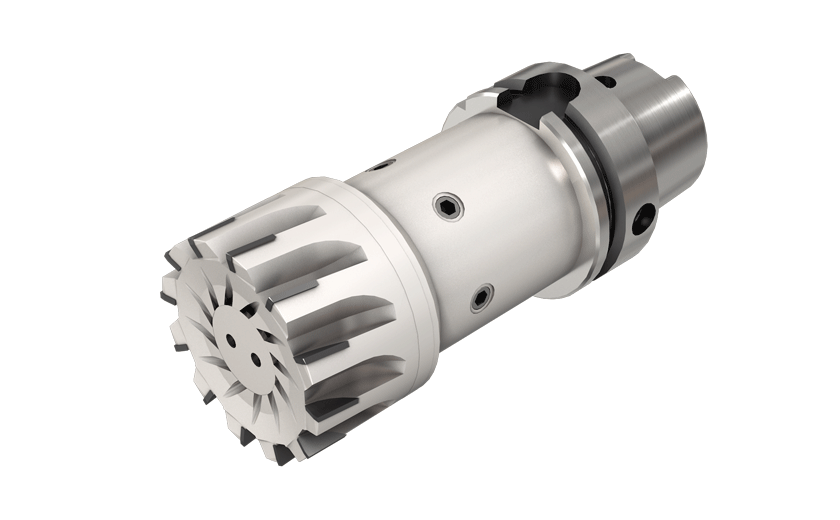

SPN D125-20-HSK 63R-BRC02 ID5-90° endmills with HSK adaptation on which brazed PCD inserts are mounted for machining aluminum at high rotational speeds with IT.TE.DI. tools

Dostępność: duża ilość

Cena brutto: 13 390,20 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

13390.20

Cena netto: 10 886,34 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 14 878,00 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3452001

SPN D125-20-HSK 63R-BRC02 ID5

Podstawowe informacje
FamilyName	SPN D-HSK-R IT
ToolType	Tool
Unit	M
PackSize	1
product_code	ISC3452001
ProductName	SPN D125-20-HSK 63R-BRC02 ID5
COO	Italy
UOM	EA
UNSPSC	23242106
FamilyDesc	90° endmills with HSK adaptation on which brazed PCD inserts are mounted for machining aluminum at high rotational speeds with IT.TE.DI. tools
FamilyShortDesc	90° Endmills with HSK Adaptation on Which Brazed PCD Inserts for Machining Aluminum at High Rotational Speeds
Link	https://www.Iscar.com/ecat/e.asp?cat=3452001
Remarks	A cooling tube must be used with all internal coolant HSK spindles (to be order separately)
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Facing \| HSK DIN69893 (ISO 12164 1) \| Shouldering \|
APP1Name	Facing
APP2Name	HSK DIN69893 (ISO 12164 1)
APP3Name	Shouldering
ItemRemark
Point Shape
Measurement Type	Metric
Thread Standard
Package Weight
Style
MSDS	07995
LocalField1	21
Body Material	Steel
ManufacturerNo	3452001
Connection Diameter Machine Side (DCONMS)	63 mm
Coolant Supply Property (CSP)	Coolant Thru
Cutting Diameter (DC)	124.6 mm
Cutting Diameter (DC/DCX)	125 mm
Cutting Diameter Maximum (DCX)	125 mm
Cutting Item Count (CICT)	20
Depth of Cut Maximum (APMX)	10 mm
