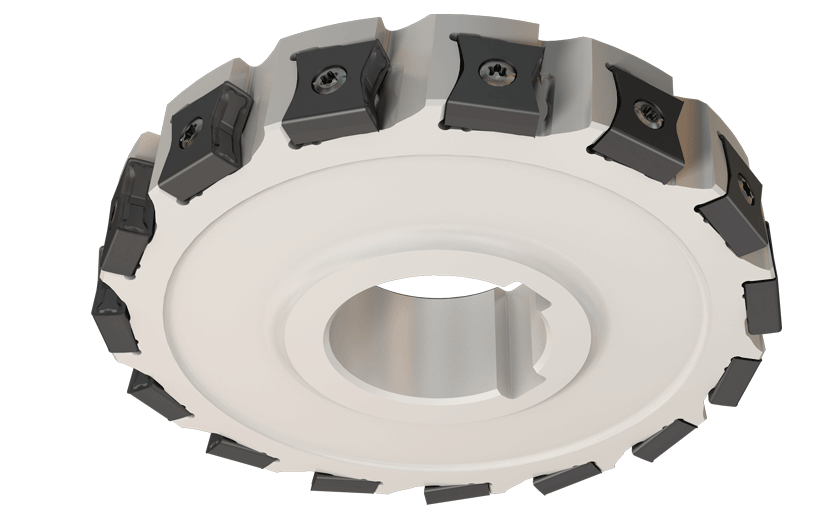

SSB D100-22-32-LN15-R-Single-side cutting, disk type slotting cutters carrying tangentially clamped LNKX 1506... inserts.

Dostępność: duża ilość

Cena brutto: 8 370,90 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

8370.90

Cena netto: 6 805,61 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 5 805,00 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3102844

SSB D100-22-32-LN15-R

Podstawowe informacje
FamilyName	SSB-LN15-R/L
ToolType	Tool
Unit	M
PackSize	1
product_code	ISC3102844
ProductName	SSB D100-22-32-LN15-R
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Single-side cutting, disk type slotting cutters carrying tangentially clamped LNKX 1506... inserts.
FamilyShortDesc	Single-Side Cutting, Disk Type Slotting Cutters
Link	https://www.Iscar.com/ecat/e.asp?cat=3102844
Remarks	Note: Left-hand cutters are designated by a yellow groove.
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Bottom Shouldering \| Shouldering \|
APP1Name	Bottom Shouldering
APP2Name	Shouldering
ItemRemark
Tool Type	Half-sided slotting cutters
Point Shape
Measurement Type	Metric
Thread Standard
Package Weight	1.2230
Style
MSDS	07995
LocalField1	21
Body Material	Steel
ManufacturerNo	3102844
Connection Code Machine Side (CCMS)	Disk type
Cutting Diameter (DC)	100 mm
Cutting Depth Maximum (CDX)	26 mm
Cutting Item Count (CICT)	12
Depth of Cut Maximum (APMX)	14 mm
Hub Diameter (DHUB)	48 mm
Master Insert Identification (MIID)	LNHT 1506PN-R HT
Overall Length (OAL)	26 mm
Peripheral Effective Cutting Edge Count (ZEFP)	12
Usable Length (LU)	22 mm
