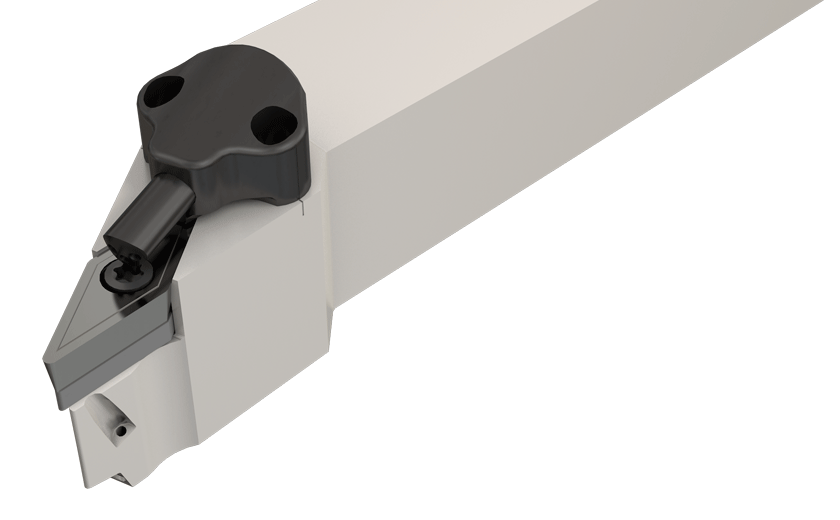

SVJCL 2525M-16-JHP-93° lead angle screw lock tools with channels for high-pressure coolant carrying 35° diamond inserts with 7° clearance angle.

Dostępność: duża ilość

Cena brutto: 2 152,52 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

2152.52

Cena netto: 1 750,02 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 1 410,40 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3603244

SVJCL 2525M-16-JHP

Podstawowe informacje
FamilyName	SVJCR/L-16-JHP
ToolType	Tool
Unit	M
PackSize	1
product_code	ISC3603244
ProductName	SVJCL 2525M-16-JHP
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	93° lead angle screw lock tools with channels for high-pressure coolant carrying 35° diamond inserts with 7° clearance angle.
FamilyShortDesc	Screw Lock Tools with Channels for High-Pressure Coolant Carrying 35° Rhombic Inserts with 7° Clearance Angle
Link	https://www.Iscar.com/ecat/e.asp?cat=3603244
Remarks	For more details, click on More Info
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Ext. 35° Diamond 93° Approach \|
APP1Name	Ext. 35° Diamond 93° Approach
ItemRemark
Tool Type	Square Shank Turning Tools
Point Shape
Measurement Type	Metric
Thread Standard
Package Weight	0.7300
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3603244
Cutting Direction (HAND)	Left Hand
Functional Length (LF)	150 mm
Functional Width (WF)	32 mm
Head Length (LH)	42 mm
Inscribed Circle Diameter (IC)	9.52 mm
Master Insert Identification (MIID)	VCMT 1604
Rake Angle Axial (GAMP)	0 Degrees
Rake Angle Radial (GAMF)	0 Degrees
Shank Height (H)	25 mm
Shank Width (B)	25 mm
