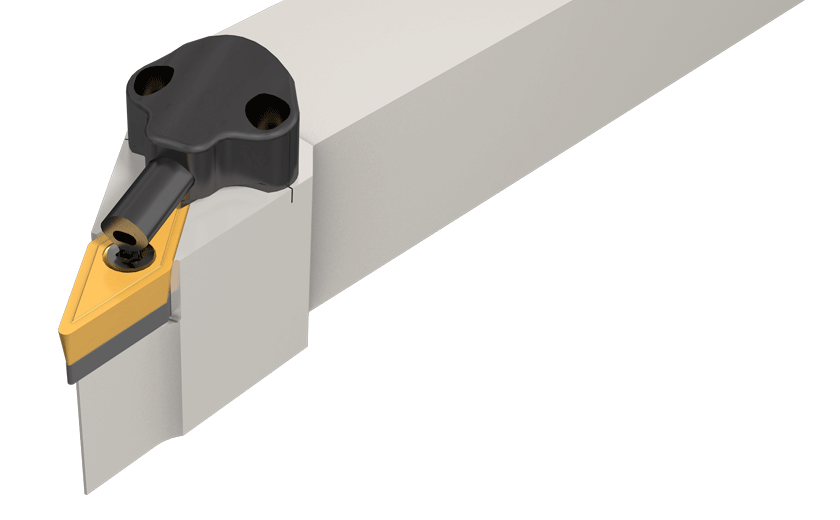

SVJCR 16-3-JHP-93° lead angle screw lock tools with channels for high pressure coolant carrying the 35° diamond inserts with 7° clearance angle.

Dostępność: duża ilość

Cena brutto: 1 269,36 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

1269.36

Cena netto: 1 032,00 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 1 410,40 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3603204

SVJCR 16-3-JHP

Podstawowe informacje
FamilyName	SVJCR/L-3-JHP
ToolType	Tool
Unit	I
PackSize	1
product_code	ISC3603204
ProductName	SVJCR 16-3-JHP
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	93° lead angle screw lock tools with channels for high pressure coolant carrying the 35° diamond inserts with 7° clearance angle.
FamilyShortDesc	Screw Lock Toolholders for 35° Rhombic Inserts with 7° Clearance Angle and Channels for High Pressure Coolant
Link	https://www.Iscar.com/ecat/e.asp?cat=3603204
Remarks	For more details, click on More Info
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Ext. 35° Diamond 93° Approach \|
APP1Name	Ext. 35° Diamond 93° Approach
ItemRemark
Tool Type	Square Shank Turning Tools
Point Shape
Measurement Type	Inch
Thread Standard
Package Weight	1.7483
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3603204
Cutting Direction (HAND)	Right Hand
Functional Length (LF)	6"
Functional Width (WF)	1-1/4"
Head Length (LH)	1.65"
Inscribed Circle Diameter (IC)	3/8"
Master Insert Identification (MIID)	VC..33
Rake Angle Axial (GAMP)	0 Degrees
Rake Angle Radial (GAMF)	0 Degrees
Shank Height (H)	1"
Shank Width (B)	1"
