T-Max®, głowica tokarska SL70-CRSCR-35-09 ID:5750035 Sandvik
Dostępność:
duża ilość
Cena brutto:
2 453,85 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
1 995,00 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
2 257,05 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
5750035
Opis

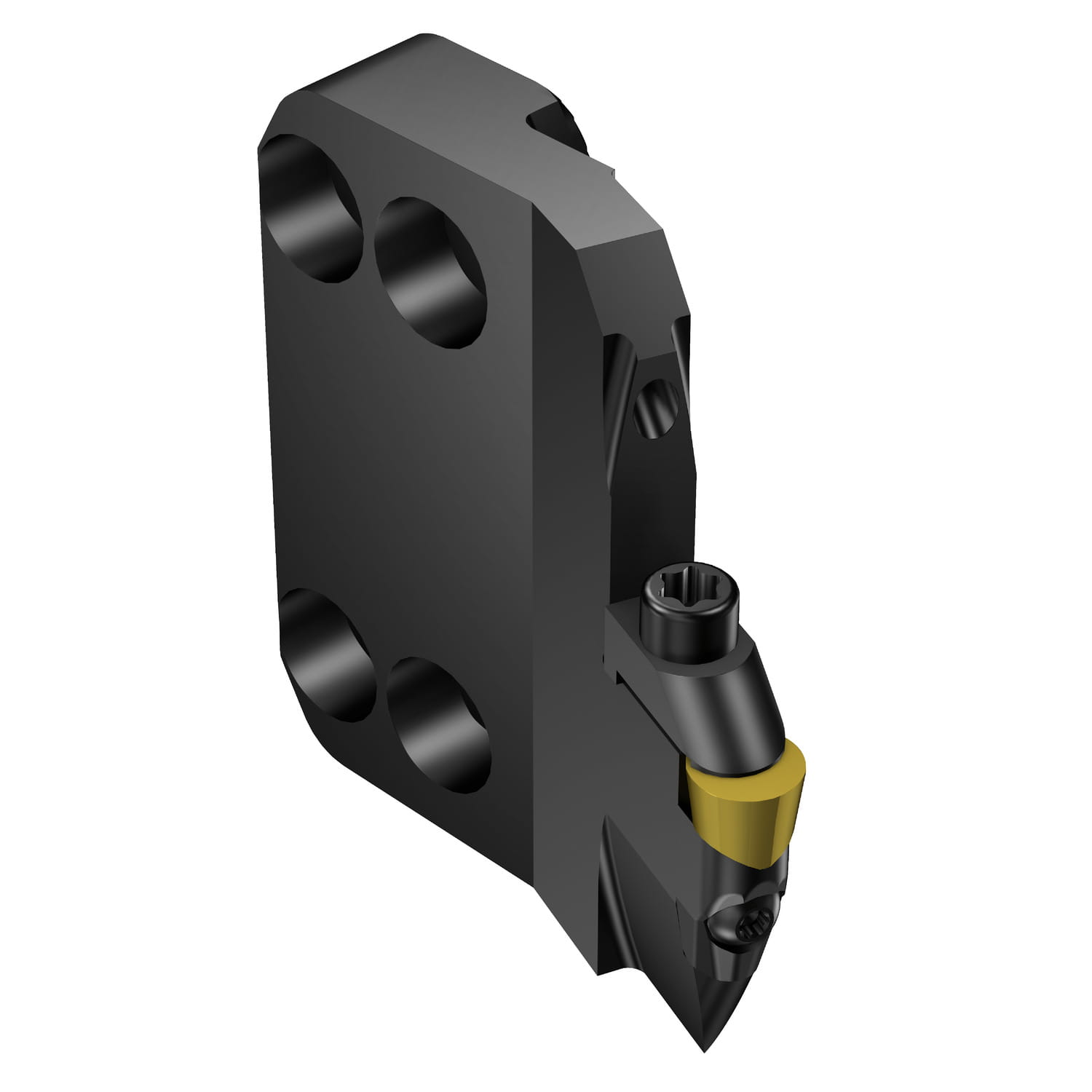

T-Max®, głowica tokarska
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | T-Max®, głowica tokarska |
| Rodzina produktów | 1026 |
| Product Subfamily Code (Tsyc) | SL70-CRSCR/L |
| Rodzina produktów | Carriers for Concept Inserts |
| Country Of Origin | IN |

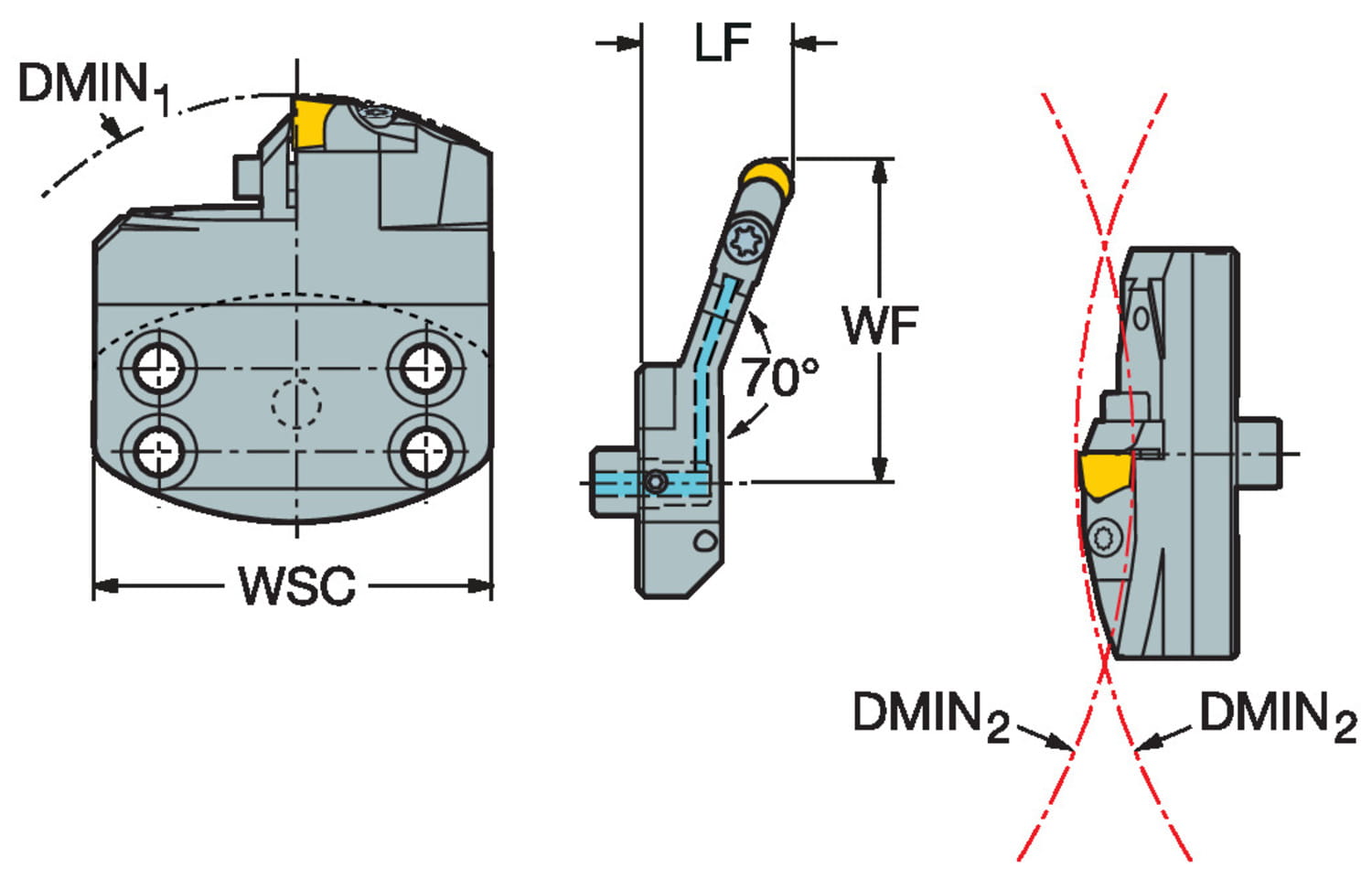

| Wymiary | |
| Dmin1 Minimum Bore Diameter | 5.11811 inch |
| Dmin1 Minimum Bore Diameter | 130 mm |
| Dmin2 Minimum Bore Diameter | 10.6299 inch |
| Dmin2 Minimum Bore Diameter | 270 mm |
| Lf Functional Length | 1.05118 inch |
| Lf Functional Length | 26.7 mm |
| Waga | 0.815711 lb |
| Waga | 370 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | SL head (screw mounted) -size 70 |
| Bams Machine Side Body Angle | 0 deg |
| Baws Workpiece Side Body Angle | 20 deg |
| Bmc Body Material Code | Steel |
| Cnsc Coolant Entry Style Code | 1: axial concentric entry |
| Cutint Master Part 2 Of Cutting Item Interface Identifiers | inch RCGX/RPGX 090700 |
| Cxsc Coolant Exit Style Code | 3: axial inclined exit |
| Dpc Damping Property | no |
| Hand Hand | R |
| Ohx Maximum Overhang | 1.05118 inch |
| Ohx Maximum Overhang | 26.7 mm |
| Rmpx Maximum Ramping Angle | 70 deg |
| Inne parametry | |
| Ean Number | 12384245 |
