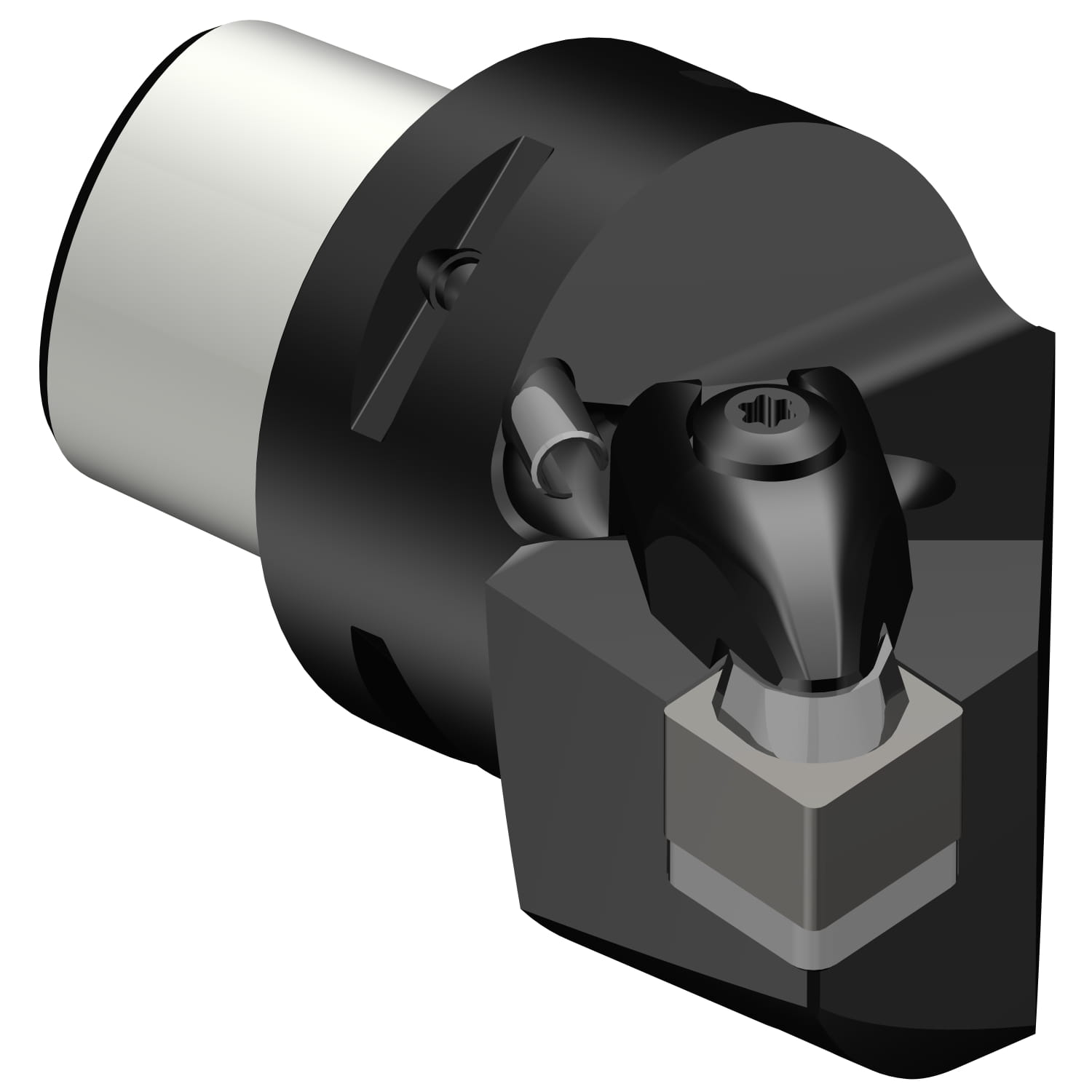

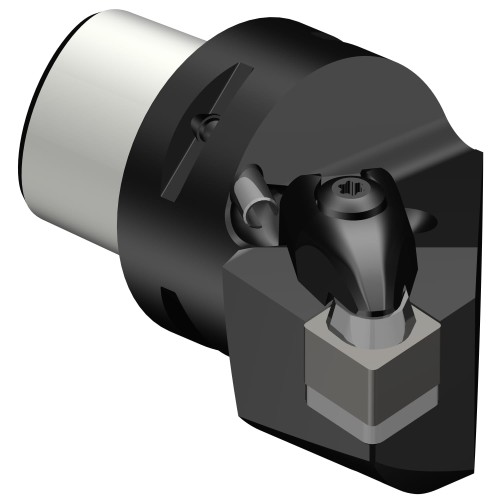

T-Max®, narzędzie tokarskie C4-CCLNL-27050-12-4 ID:5727296 Sandvik
Dostępność:
duża ilość
Cena brutto:
1 912,65 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
1 555,00 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
1 758,90 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
5727296
Opis
T-Max®, narzędzie tokarskie
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | T-Max®, narzędzie tokarskie |
| Rodzina produktów | 1026 |
| Product Subfamily Code (Tsyc) | Cx-CCLNR/L |
| Rodzina produktów | Carriers for Concept Inserts |
| Country Of Origin | SE |
| Wymiary | |

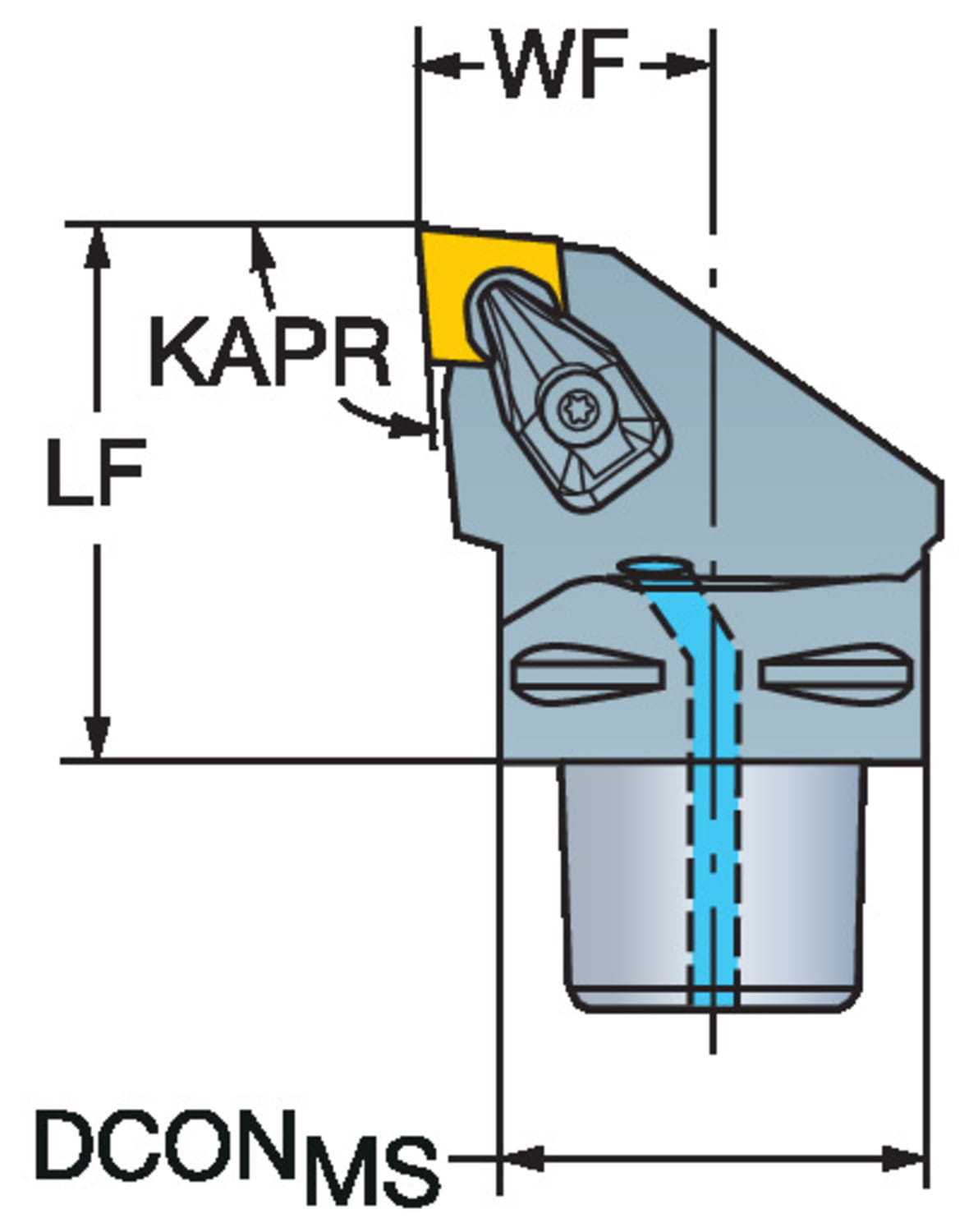

| Dconms Connection Diameter | 1.5748 inch |
| Dconms Connection Diameter | 40 mm |

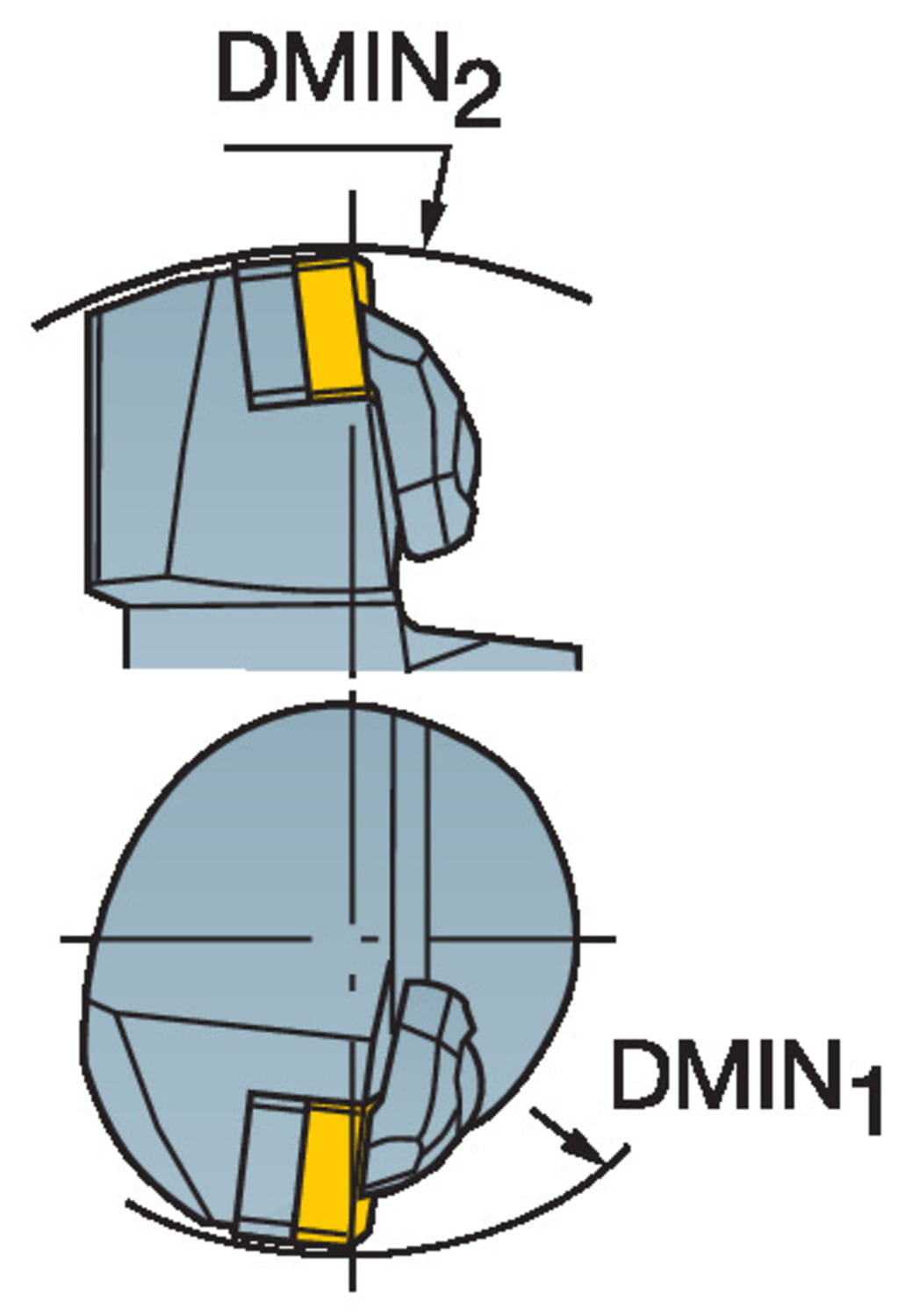

| Dmin1 Minimum Bore Diameter | 4.33071 inch |
| Dmin1 Minimum Bore Diameter | 110 mm |
| Dmin2 Minimum Bore Diameter | 5.51181 inch |
| Dmin2 Minimum Bore Diameter | 140 mm |
| Lf Functional Length | 1.9685 inch |
| Lf Functional Length | 50 mm |
| Waga | 0.817916 lb |
| Waga | 371 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | Coromant Capto (bolt and segment clamping) -size C4 |
| Bams Machine Side Body Angle | 0 deg |
| Baws Workpiece Side Body Angle | 0 deg |
| Bmc Body Material Code | Steel |
| Cnsc Coolant Entry Style Code | 3: axial concentric and radial entry |
| Cutint Master Part 2 Of Cutting Item Interface Identifiers | CNGN 120708 |
| Cxsc Coolant Exit Style Code | 3: axial inclined exit |
| Dpc Damping Property | no |
| Hand Hand | L |
| Kapr Tool Cutting Edge Angle | 95 deg |
| Ohx Maximum Overhang | 1.9685 inch |
| Ohx Maximum Overhang | 50 mm |
| Psir Tool Lead Angle | -5 deg |
| Rmpx Maximum Ramping Angle | 0 deg |
| Inne parametry | |
| Ean Number | 11413603 |
