T-Max®, narzędzie tokarskie C5-CCRNR-27060-12-4 ID:5728185 Sandvik
Dostępność:
duża ilość
Cena brutto:
2 134,05 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
1 735,00 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
1 961,85 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
5728185
Opis
T-Max®, narzędzie tokarskie
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | T-Max®, narzędzie tokarskie |
| Rodzina produktów | 1026 |
| Product Subfamily Code (Tsyc) | Cx-CCRNR/L |
| Rodzina produktów | Carriers for Concept Inserts |
| Country Of Origin | SE |

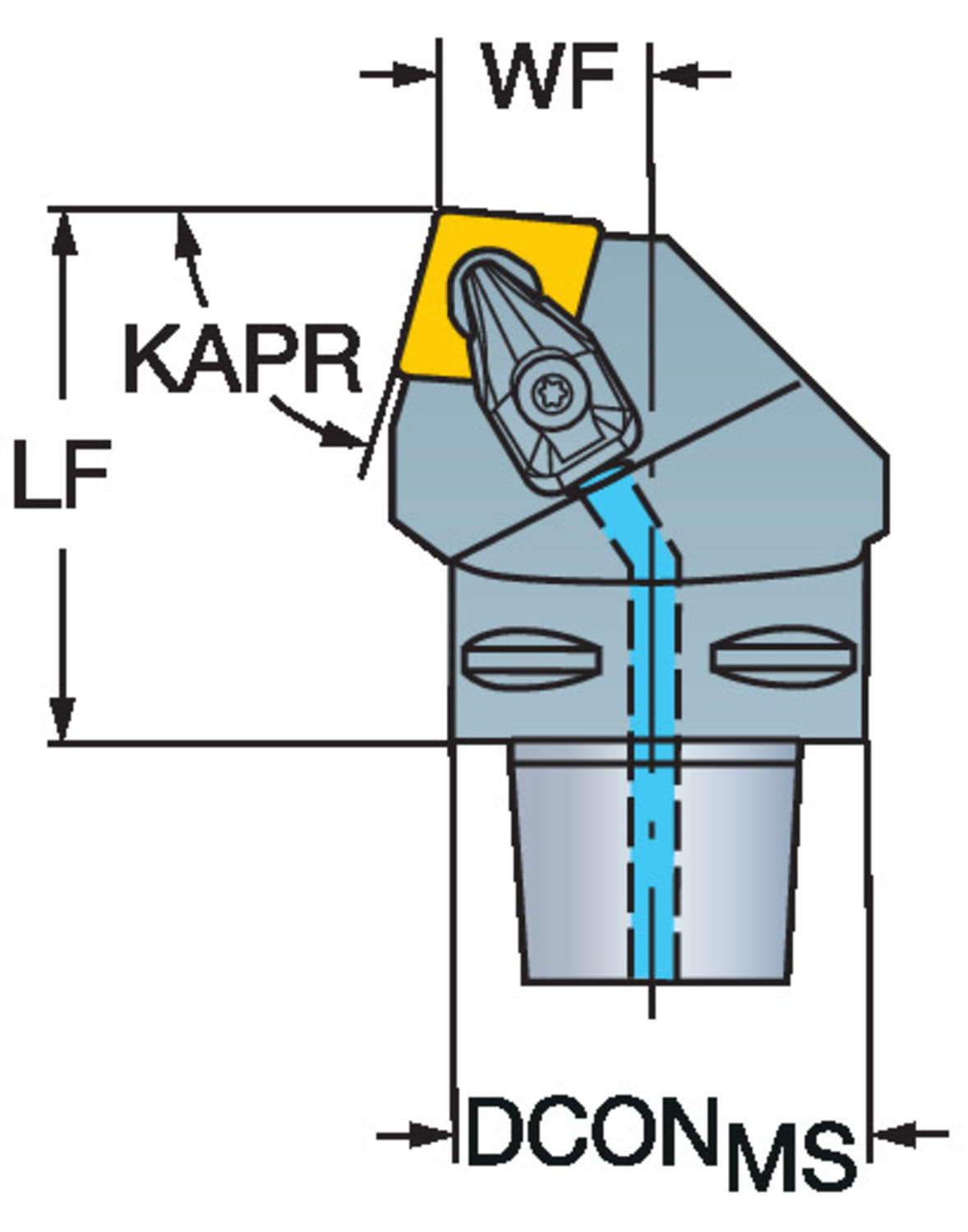

| Wymiary | |
| Dconms Connection Diameter | 1.9685 inch |
| Dconms Connection Diameter | 50 mm |

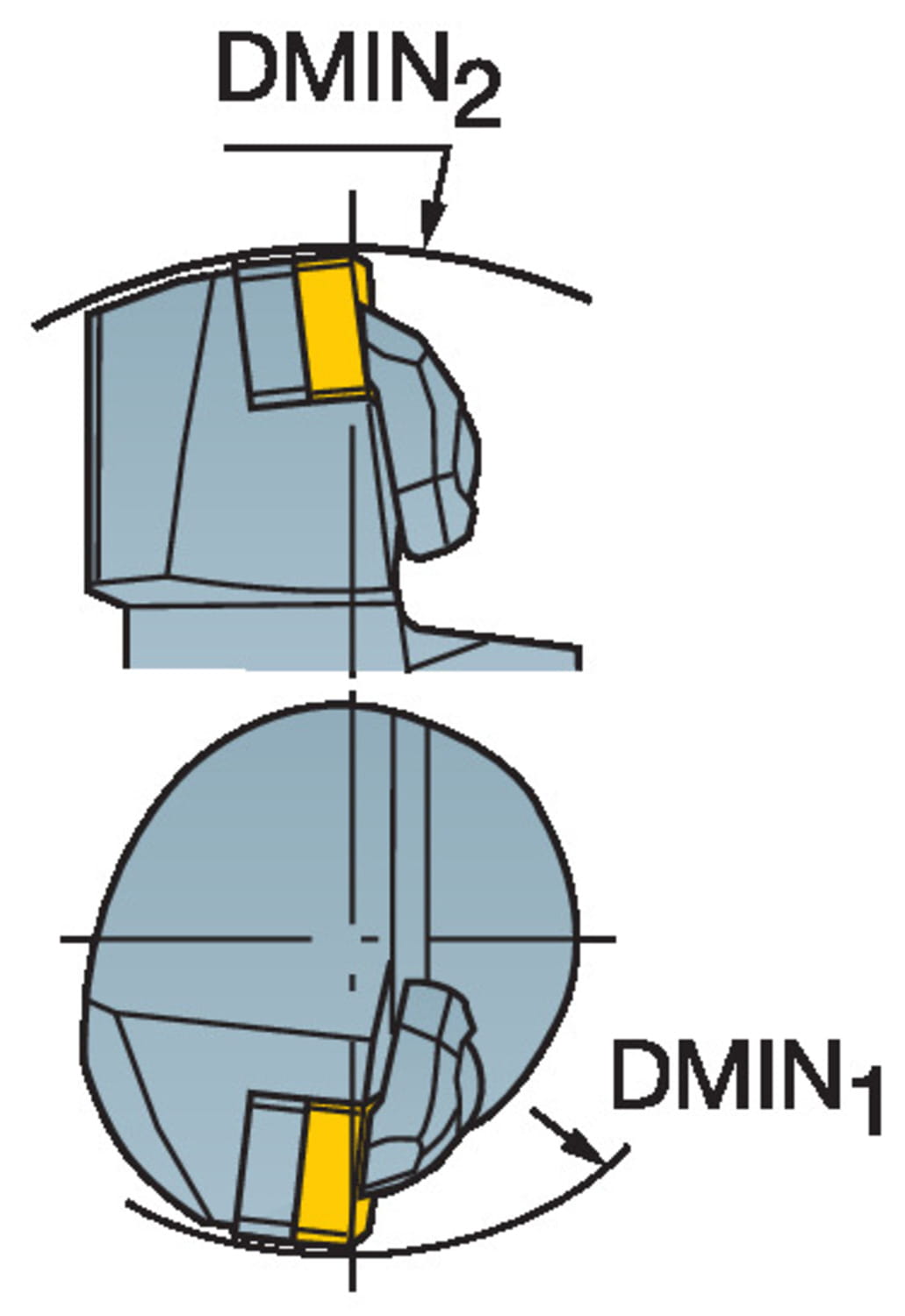

| Dmin2 Minimum Bore Diameter | 6.49606 inch |
| Dmin2 Minimum Bore Diameter | 165 mm |
| Lf Functional Length | 2.3622 inch |
| Lf Functional Length | 60 mm |
| Waga | 1.66074 lb |
| Waga | 753.3 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | Coromant Capto (bolt and segment clamping) -size C5 |
| Bams Machine Side Body Angle | 0 deg |
| Baws Workpiece Side Body Angle | 0 deg |
| Bmc Body Material Code | Steel |
| Cnsc Coolant Entry Style Code | 3: axial concentric and radial entry |
| Cutint Master Part 2 Of Cutting Item Interface Identifiers | CNGN 120708 (100deg) |
| Cxsc Coolant Exit Style Code | 3: axial inclined exit |
| Dpc Damping Property | no |
| Hand Hand | R |
| Kapr Tool Cutting Edge Angle | 75 deg |
| Ohx Maximum Overhang | 2.3622 inch |
| Ohx Maximum Overhang | 60 mm |
| Psir Tool Lead Angle | 15 deg |
| Rmpx Maximum Ramping Angle | 0 deg |
| Inne parametry | |
| Ean Number | 11413835 |
