T-Max® P, głowica tokarska 570-DTFNL-80-16 ID:5764374 Sandvik
Dostępność:
duża ilość
Cena brutto:
2 911,72 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
2 367,25 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
3 425,55 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
5764374
Opis

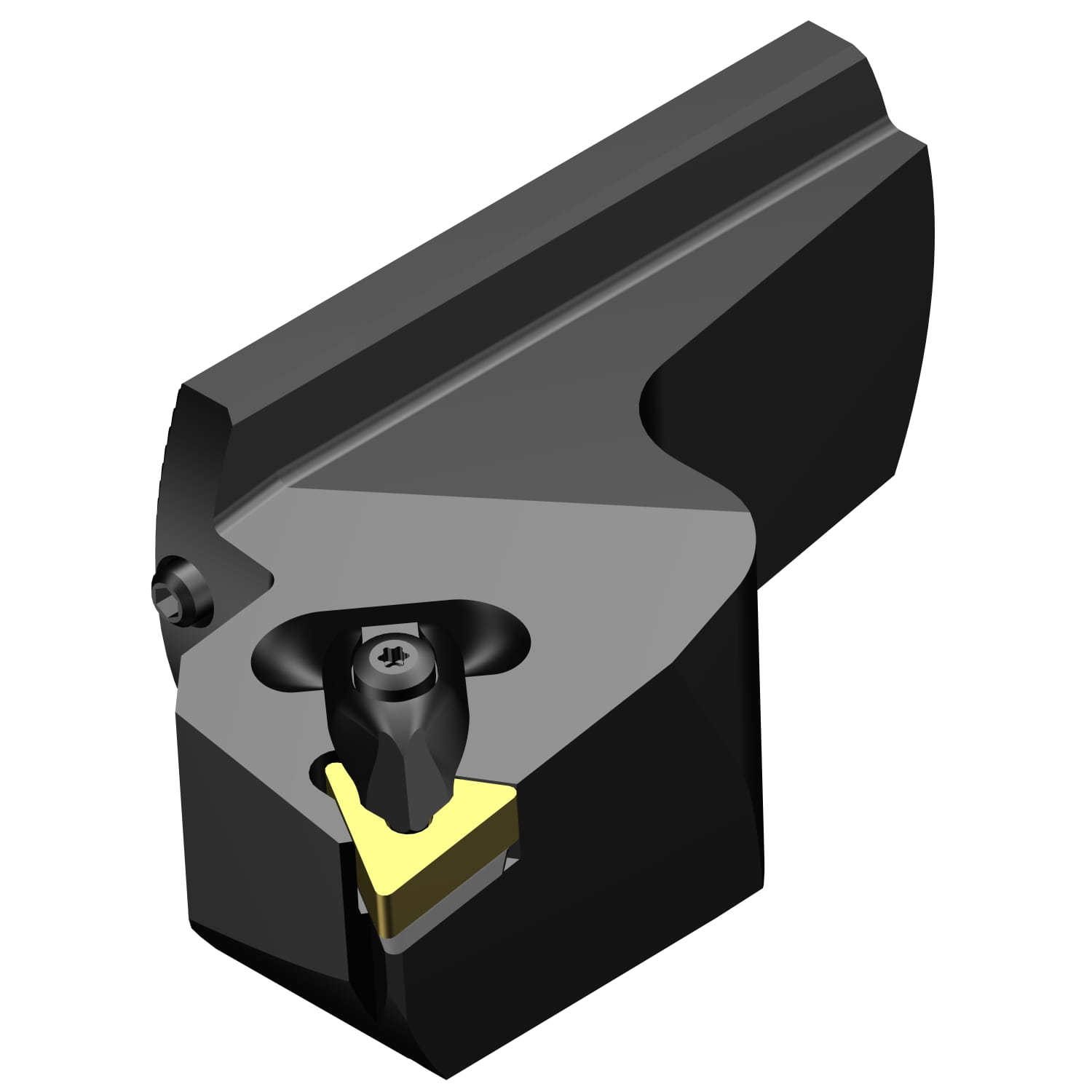

T-Max® P, głowica tokarska
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | T-Max® P, głowica tokarska |
| Rodzina produktów | 1049 |
| Product Subfamily Code (Tsyc) | 570-DTFNR/L-80 |
| Rodzina produktów | Carriers for Concept Inserts |
| Country Of Origin | NO |

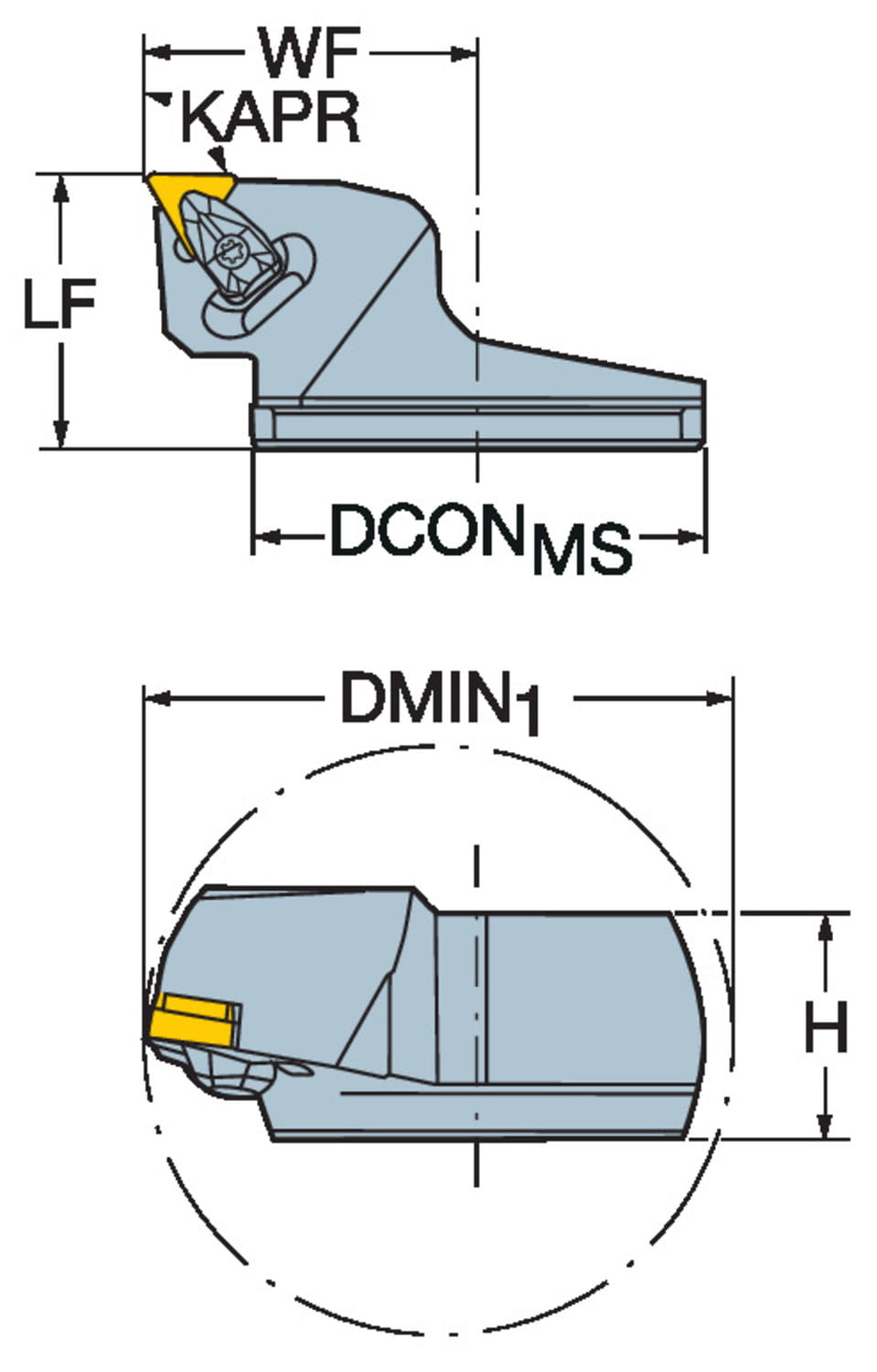

| Wymiary | |
| Dconms Connection Diameter | 3.14961 inch |
| Dconms Connection Diameter | 80 mm |
| Dmin1 Minimum Bore Diameter | 3.93701 inch |
| Dmin1 Minimum Bore Diameter | 100 mm |
| H Shank Height | 1.47638 inch |
| H Shank Height | 37.5 mm |
| Lf Functional Length | 1.77165 inch |
| Lf Functional Length | 45 mm |
| Waga | 1.20593 lb |
| Waga | 547 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | SL head (quick change) -size 80 |
| Bams Machine Side Body Angle | 0 deg |
| Baws Workpiece Side Body Angle | 0 deg |
| Bmc Body Material Code | Steel |
| Cnsc Coolant Entry Style Code | 0: without coolant |
| Cutint Master Part 2 Of Cutting Item Interface Identifiers | TNMG 160408 |
| Cxsc Coolant Exit Style Code | 0: no coolant exit |
| Dpc Damping Property | no |
| Hand Hand | L |
| Kapr Tool Cutting Edge Angle | 91 deg |
| Ohx Maximum Overhang | 1.77165 inch |
| Ohx Maximum Overhang | 45 mm |
| Psir Tool Lead Angle | -1 deg |
| Rmpx Maximum Ramping Angle | 0 deg |
| Inne parametry | |
| Ean Number | 12068033 |
