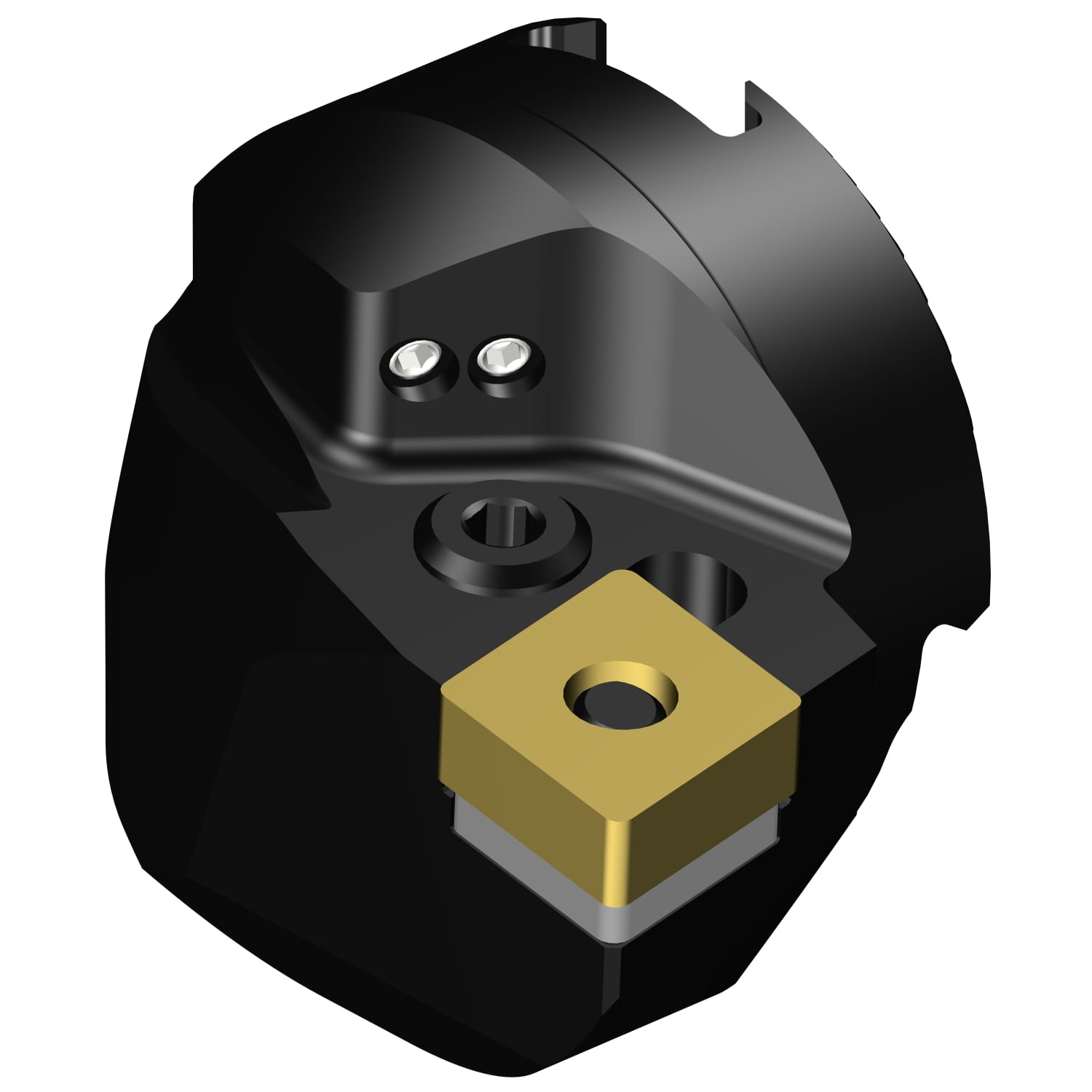

T-Max® P, głowica tokarska TIP0-W4R-C12L-27A ID:7550034 Sandvik
Dostępność:
duża ilość
Cena brutto:
3 167,25 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
2 575,00 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
2 915,10 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
7550034
Opis
T-Max® P, głowica tokarska
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | T-Max® P, głowica tokarska |
| Rodzina produktów | 1049 |
| Product Subfamily Code (Tsyc) | TIP0-W..R/L-C..L..A |
| Rodzina produktów | Carriers for Concept Inserts |
| Country Of Origin | NO |

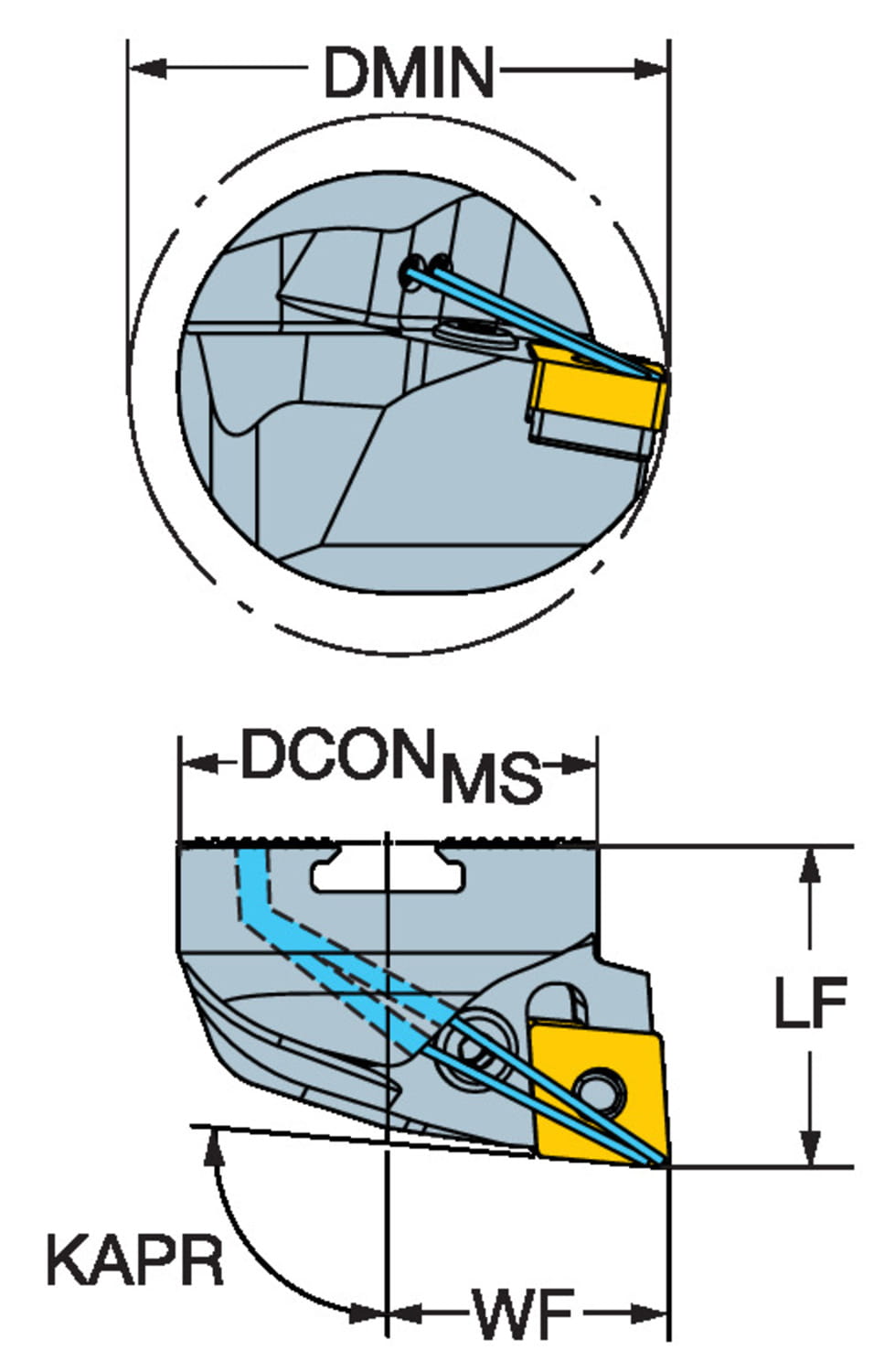

| Wymiary | |
| Dconms Connection Diameter | 1.5748 inch |
| Dconms Connection Diameter | 40 mm |
| Dmin1 Minimum Bore Diameter | 1.9685 inch |
| Dmin1 Minimum Bore Diameter | 50 mm |
| Lf Functional Length | 1.22047 inch |
| Lf Functional Length | 31 mm |
| Waga | 0.41006 lb |
| Waga | 186 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | Wedge Lock -size 40 |
| Bams Machine Side Body Angle | 0 deg |
| Baws Workpiece Side Body Angle | 0 deg |
| Bmc Body Material Code | Steel |
| Cnsc Coolant Entry Style Code | 6: decentral over flange |
| Cutint Master Part 2 Of Cutting Item Interface Identifiers | CNMG 120408 |
| Cxsc Coolant Exit Style Code | 8: decentral focused exit with nozzles |
| Dpc Damping Property | no |
| Hand Hand | R |
| Kapr Tool Cutting Edge Angle | 95 deg |
| Ohx Maximum Overhang | 1.22047 inch |
| Ohx Maximum Overhang | 31 mm |
| Psir Tool Lead Angle | -5 deg |
| Rmpx Maximum Ramping Angle | 0 deg |
| Inne parametry | |
| Ean Number | 7323223637987 |
