T-Max® P, narzędzie tokarskie C10-PSSNL-68092-19HP ID:6067809 Sandvik
Dostępność:
duża ilość
Cena brutto:
2 901,26 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
2 358,75 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
3 413,25 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
6067809
Opis

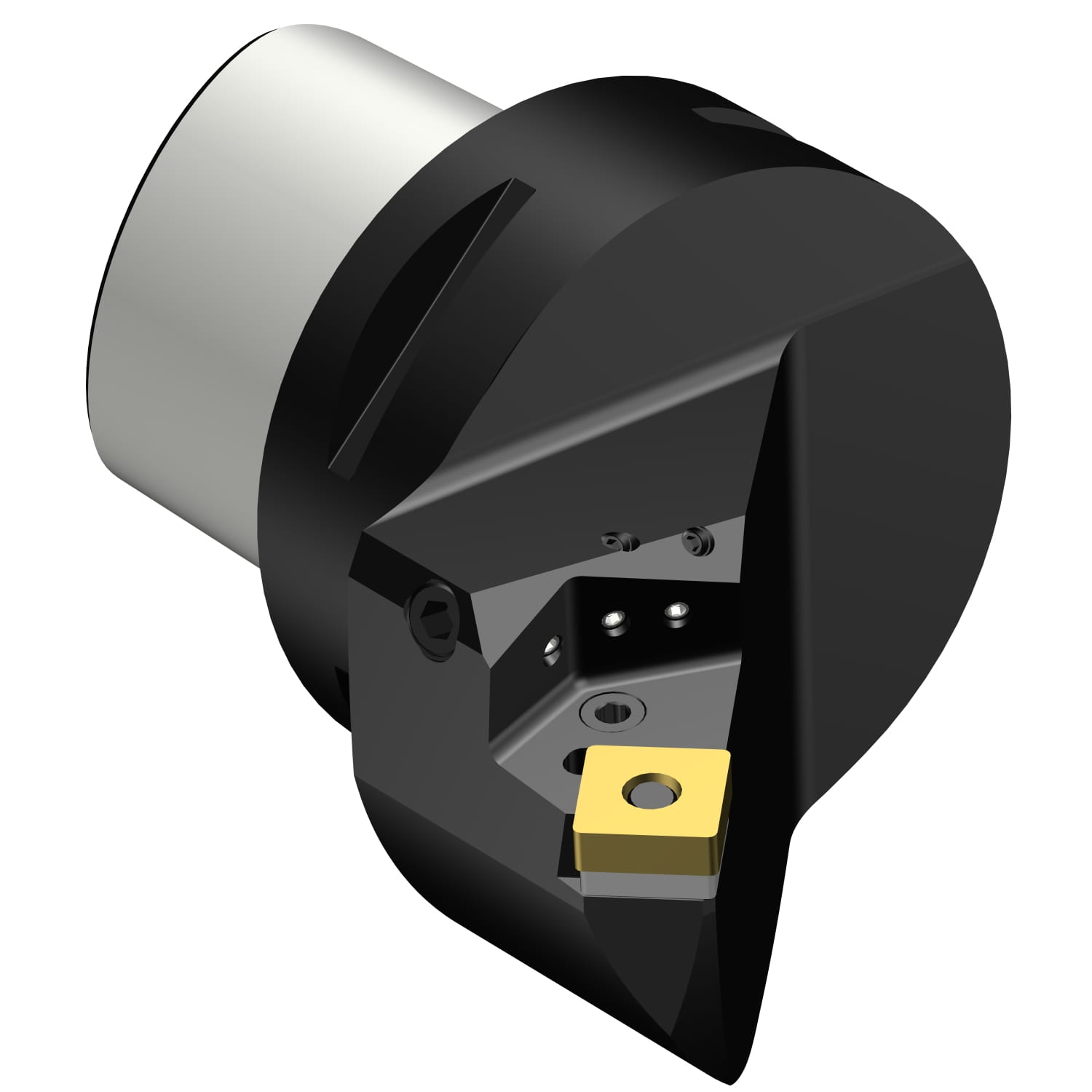

T-Max® P, narzędzie tokarskie
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | T-Max® P, narzędzie tokarskie |
| Rodzina produktów | 1049 |
| Product Subfamily Code (Tsyc) | Cx-PSSNR/L..HP |
| Rodzina produktów | Carriers for Concept Inserts |
| Country Of Origin | DE |
| Wymiary | |

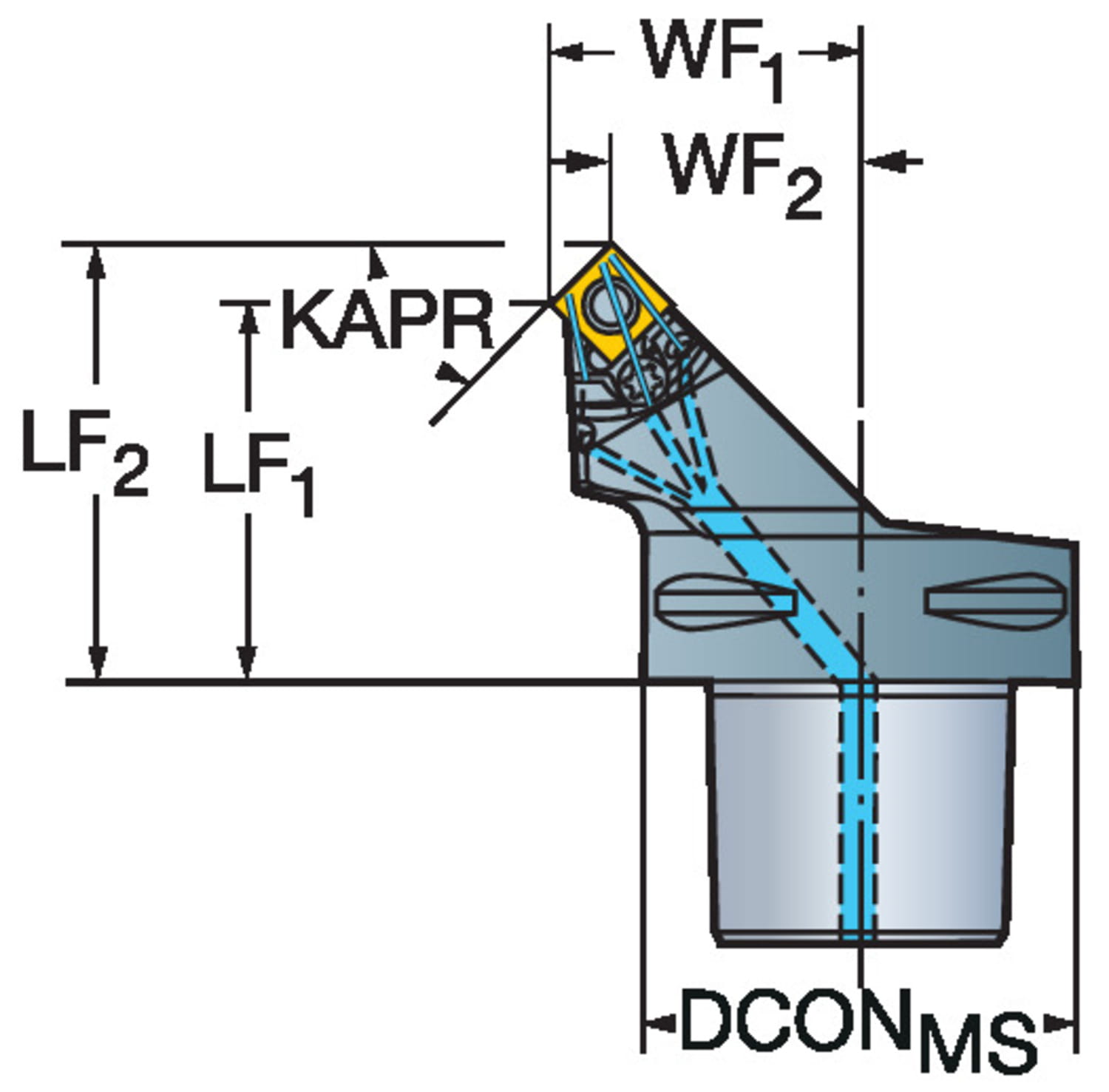

| Dconms Connection Diameter | 3.93701 inch |
| Dconms Connection Diameter | 100 mm |

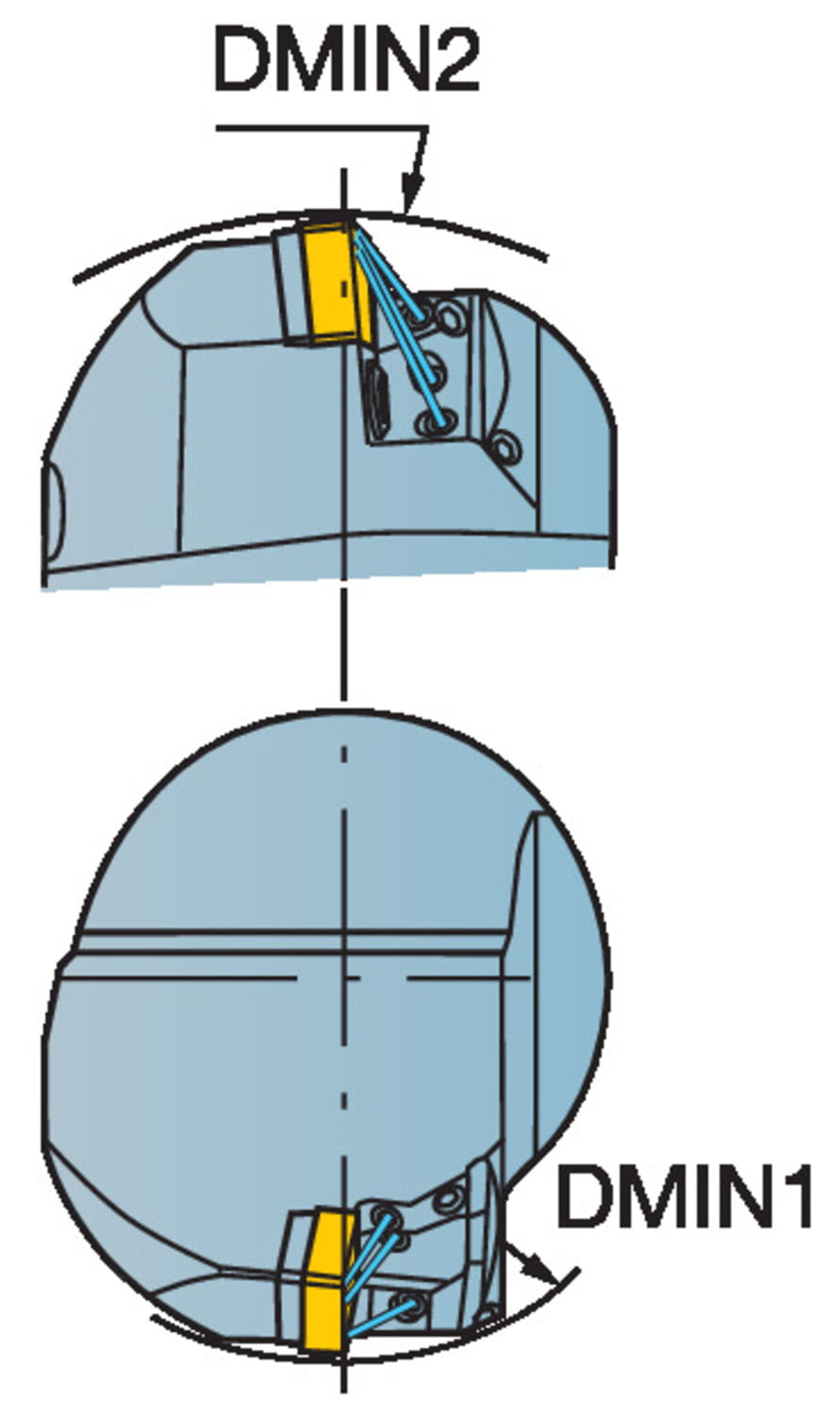

| Dmin1 Minimum Bore Diameter | 10.2362 inch |
| Dmin1 Minimum Bore Diameter | 260 mm |
| Dmin2 Minimum Bore Diameter | 12.4016 inch |
| Dmin2 Minimum Bore Diameter | 315 mm |
| Lf Functional Length | 3.62205 inch |
| Lf Functional Length | 92 mm |
| Waga | 10.3617 lb |
| Waga | 4.7 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | Coromant Capto (bolt and segment clamping) -size C10 |
| Bams Machine Side Body Angle | 0 deg |
| Baws Workpiece Side Body Angle | 0 deg |
| Bmc Body Material Code | Steel |
| Cnsc Coolant Entry Style Code | 3: axial concentric and radial entry |
| Cutint Master Part 2 Of Cutting Item Interface Identifiers | SNMG 190612 |
| Cxsc Coolant Exit Style Code | 8: decentral focused exit with nozzles |
| Dpc Damping Property | no |
| Hand Hand | L |
| Kapr Tool Cutting Edge Angle | 45 deg |
| Ohx Maximum Overhang | 3.62205 inch |
| Ohx Maximum Overhang | 92 mm |
| Psir Tool Lead Angle | 45 deg |

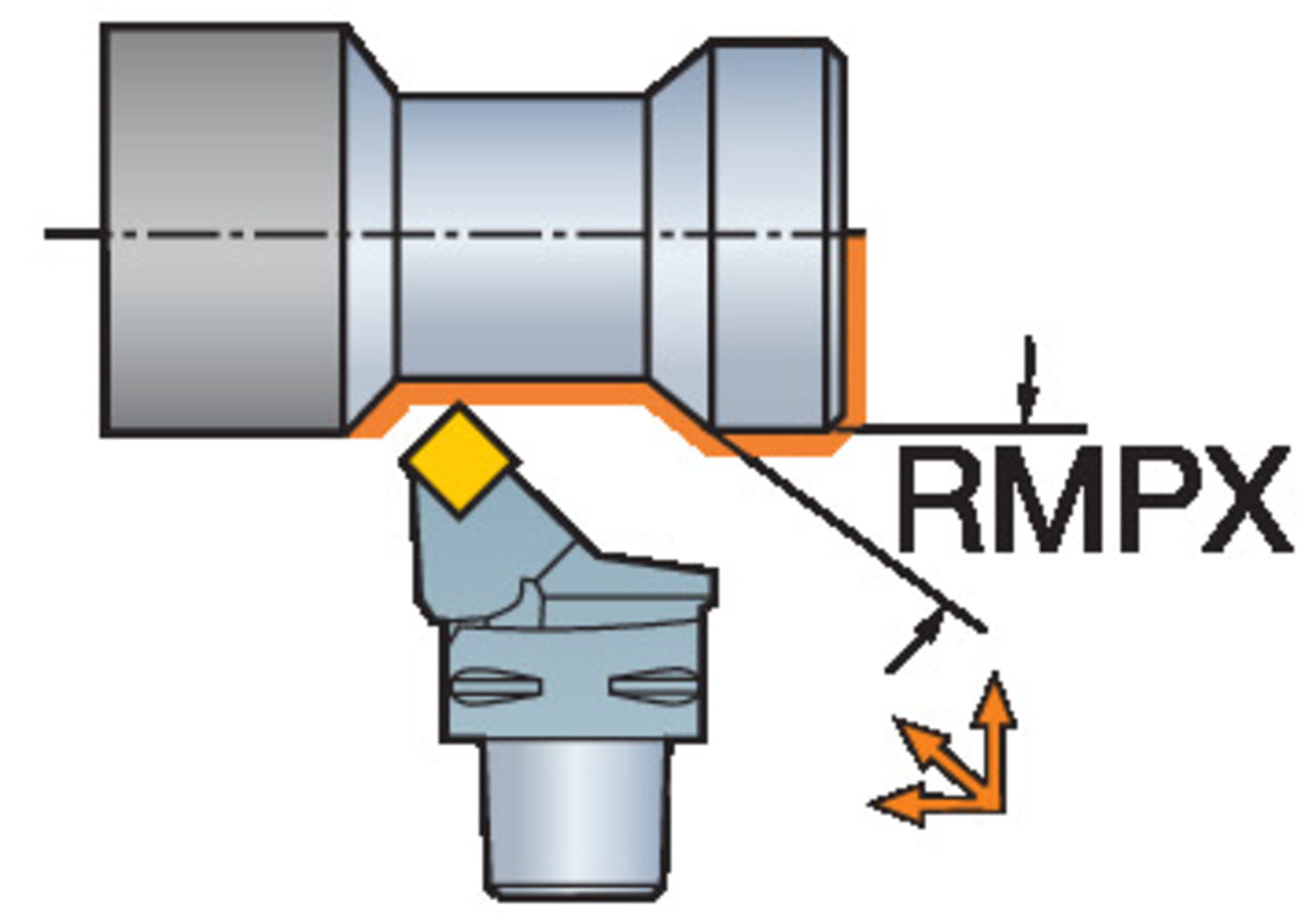

| Rmpx Maximum Ramping Angle | 0 deg |
| Inne parametry | |
| Ean Number | 26067809 |
