T-Max® P, narzędzie tokarskie C5-PCLNR-22110-12HP ID:6188684 Sandvik
Dostępność:
duża ilość
Cena brutto:
2 828,08 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
2 299,25 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
3 327,15 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
6188684
Opis

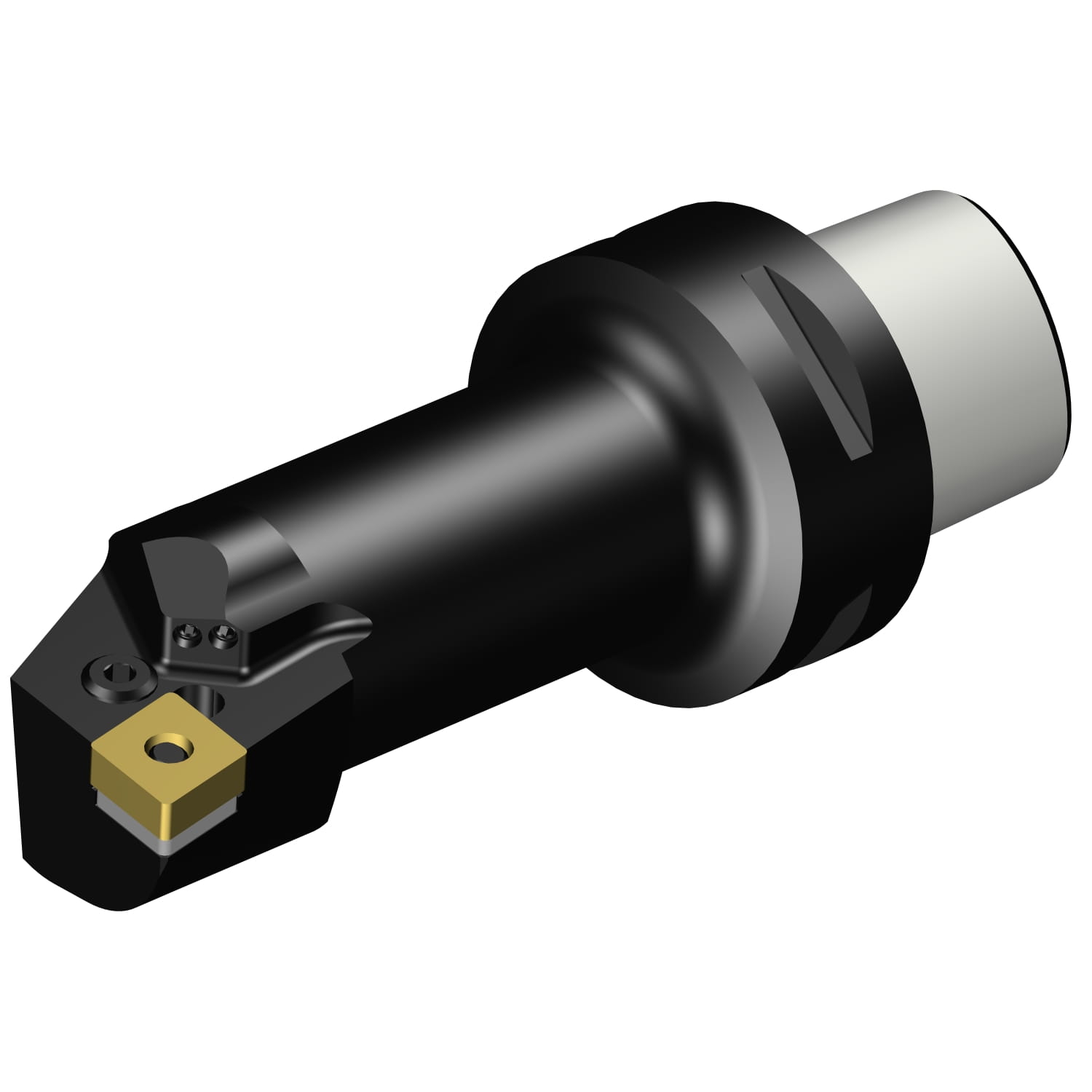

T-Max® P, narzędzie tokarskie
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | T-Max® P, narzędzie tokarskie |
| Rodzina produktów | 1049 |
| Product Subfamily Code (Tsyc) | Cx-PCLNR/L..HP (INT) |
| Rodzina produktów | Carriers for Concept Inserts |
| Country Of Origin | SE |

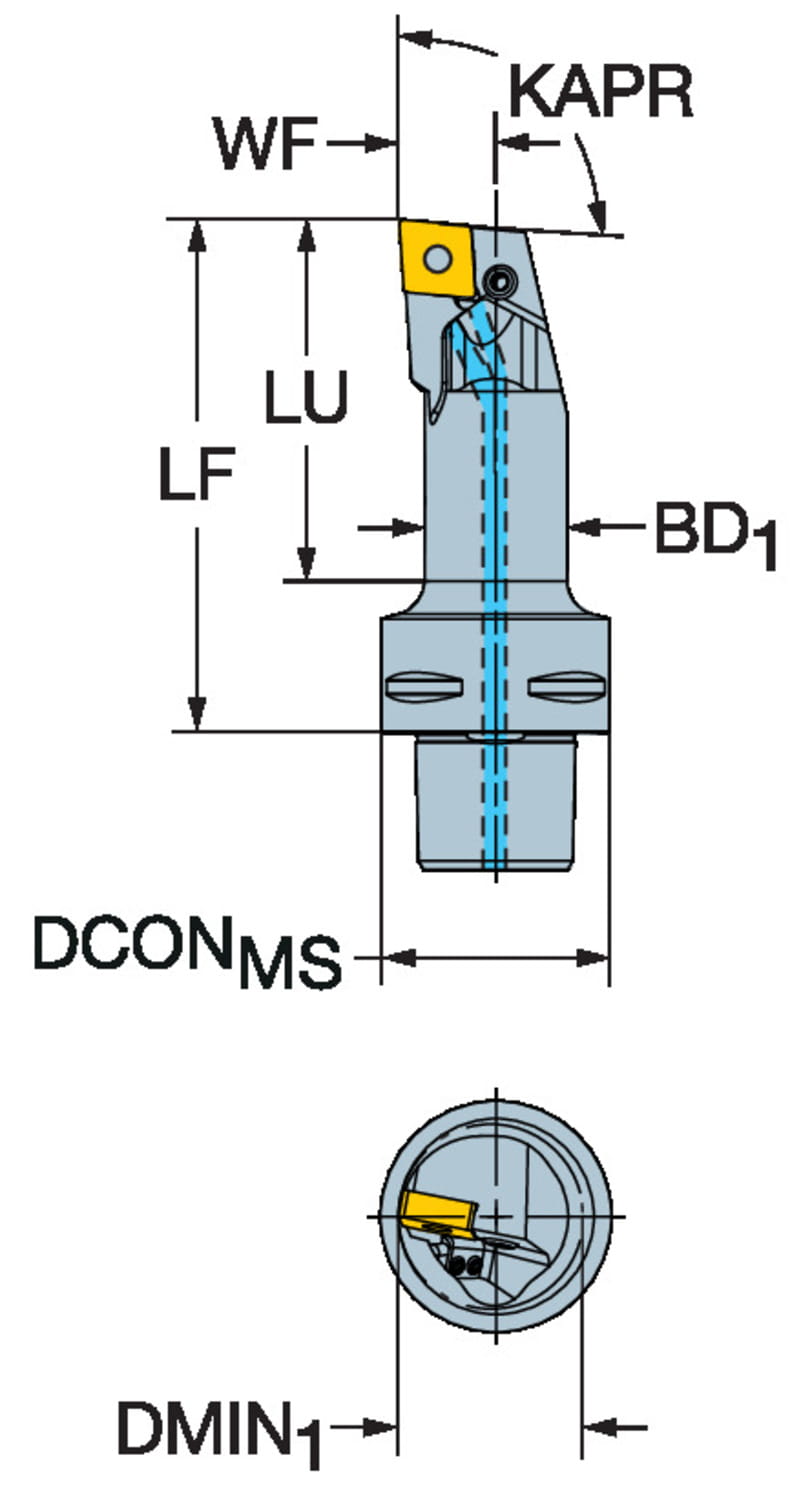

| Wymiary | |
| Dconms Connection Diameter | 1.9685 inch |
| Dconms Connection Diameter | 50 mm |
| Dmin1 Minimum Bore Diameter | 1.5748 inch |
| Dmin1 Minimum Bore Diameter | 40 mm |
| Lf Functional Length | 4.33071 inch |
| Lf Functional Length | 110 mm |
| Lu Usable Length | 3.23622 inch |
| Lu Usable Length | 82.2 mm |
| Waga | 1.98637 lb |
| Waga | 901 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | Coromant Capto (bolt and segment clamping) -size C5 |
| Bams Machine Side Body Angle | 0 deg |
| Baws Workpiece Side Body Angle | 0 deg |
| Bmc Body Material Code | Steel |
| Cnsc Coolant Entry Style Code | 3: axial concentric and radial entry |
| Cutint Master Part 2 Of Cutting Item Interface Identifiers | CNMG 120408 |
| Cxsc Coolant Exit Style Code | 8: decentral focused exit with nozzles |
| Dpc Damping Property | no |
| Hand Hand | R |
| Kapr Tool Cutting Edge Angle | 95 deg |
| Ohx Maximum Overhang | 4.33071 inch |
| Ohx Maximum Overhang | 110 mm |
| Psir Tool Lead Angle | -5 deg |
| Rmpx Maximum Ramping Angle | 0 deg |
| Inne parametry | |
| Ean Number | 26188684 |
