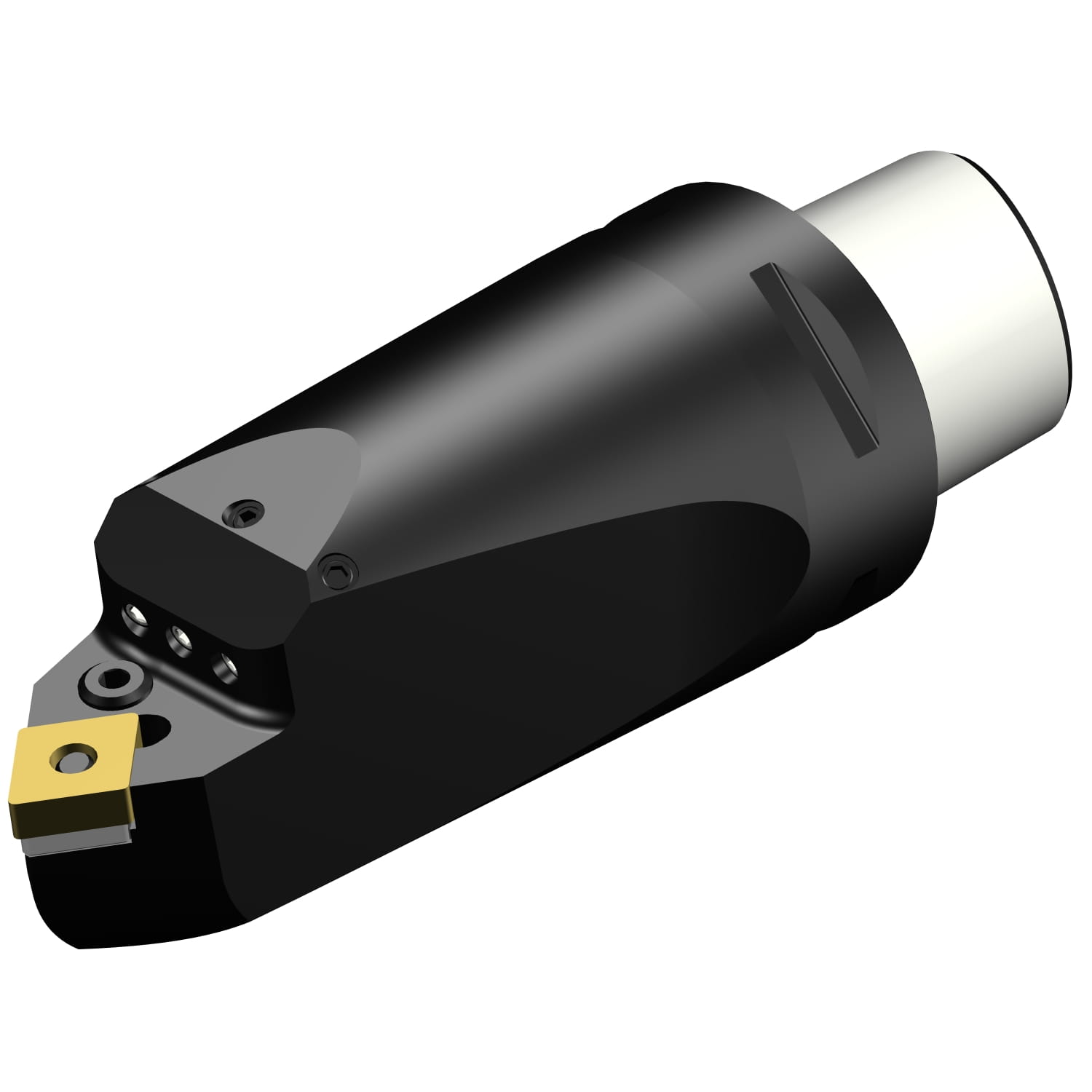

T-Max® P, narzędzie tokarskie C5-PCMNN-00115-12HP ID:6066662 Sandvik
Dostępność:
duża ilość
Cena brutto:
2 822,85 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
2 295,00 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
3 321,00 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
6066662
Opis
T-Max® P, narzędzie tokarskie
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | T-Max® P, narzędzie tokarskie |
| Rodzina produktów | 1049 |
| Product Subfamily Code (Tsyc) | Cx-PCMNN..HP (M-T) |
| Rodzina produktów | Carriers for Concept Inserts |
| Country Of Origin | IN |
| Wymiary | |

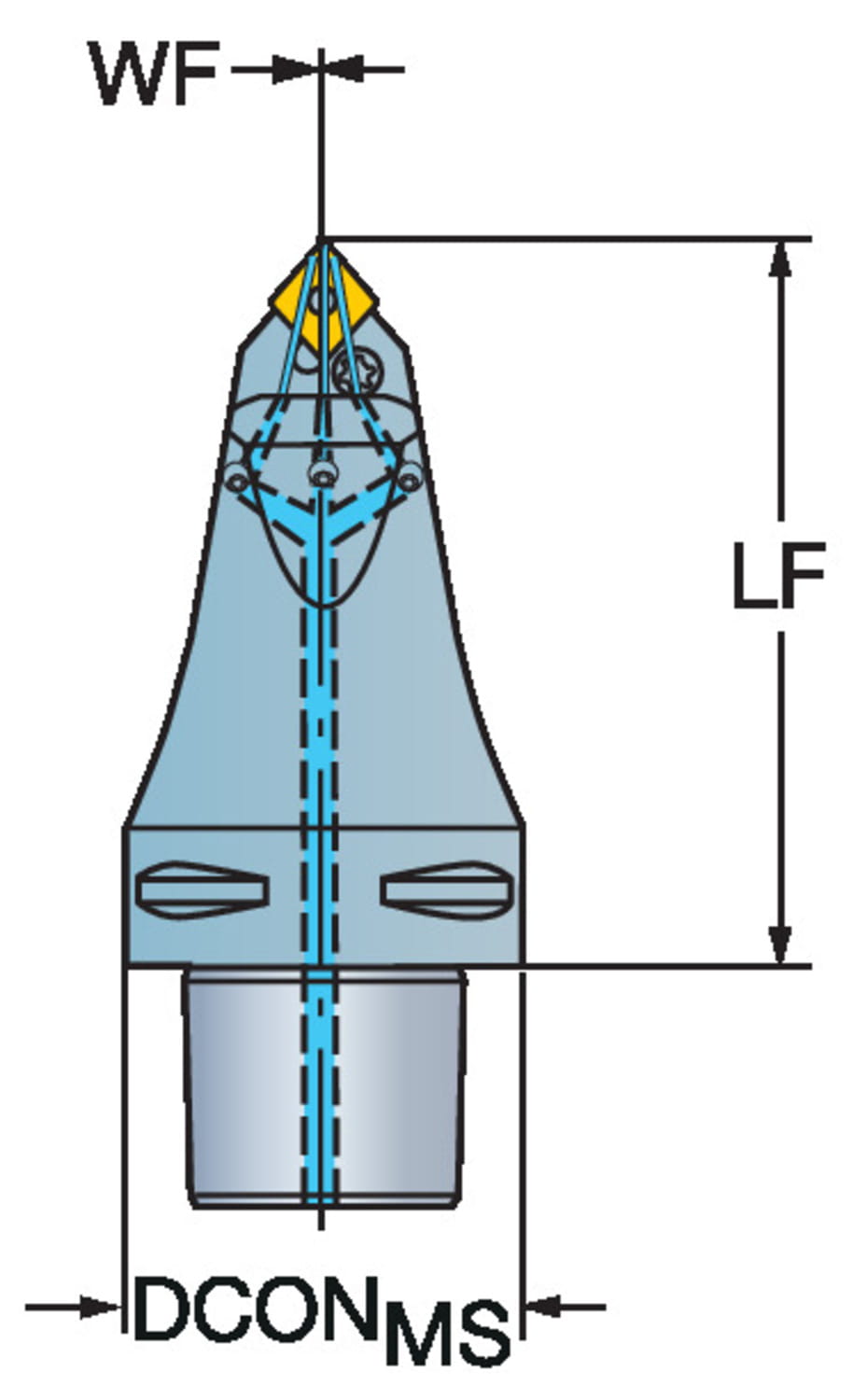

| Dconms Connection Diameter | 1.9685 inch |
| Dconms Connection Diameter | 50 mm |
| Dmin2 Minimum Bore Diameter | 8.66142 inch |
| Dmin2 Minimum Bore Diameter | 220 mm |
| Lf Functional Length | 4.52756 inch |
| Lf Functional Length | 115 mm |
| Waga | 2.87483 lb |
| Waga | 1.304 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | Coromant Capto (bolt and segment clamping) -size C5 |
| Bams Machine Side Body Angle | 45 deg |
| Baws Workpiece Side Body Angle | 0 deg |
| Bmc Body Material Code | Steel |
| Cnsc Coolant Entry Style Code | 3: axial concentric and radial entry |
| Cutint Master Part 2 Of Cutting Item Interface Identifiers | CNMG 120408 |
| Cxsc Coolant Exit Style Code | 8: decentral focused exit with nozzles |
| Dpc Damping Property | no |
| Hand Hand | N |

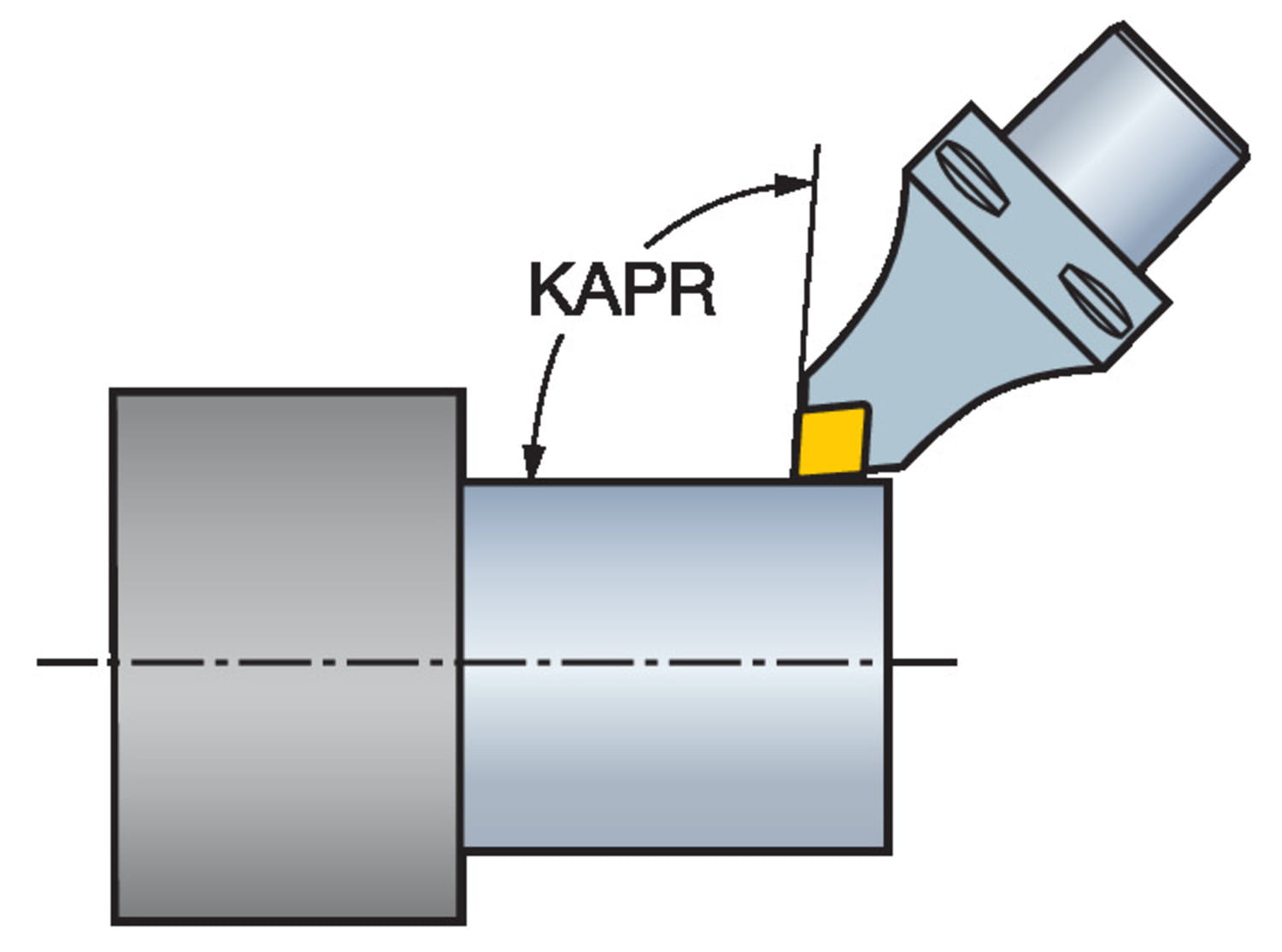

| Kapr Tool Cutting Edge Angle | 95 deg |
| Ohx Maximum Overhang | 4.52756 inch |
| Ohx Maximum Overhang | 115 mm |
| Psir Tool Lead Angle | -5 deg |

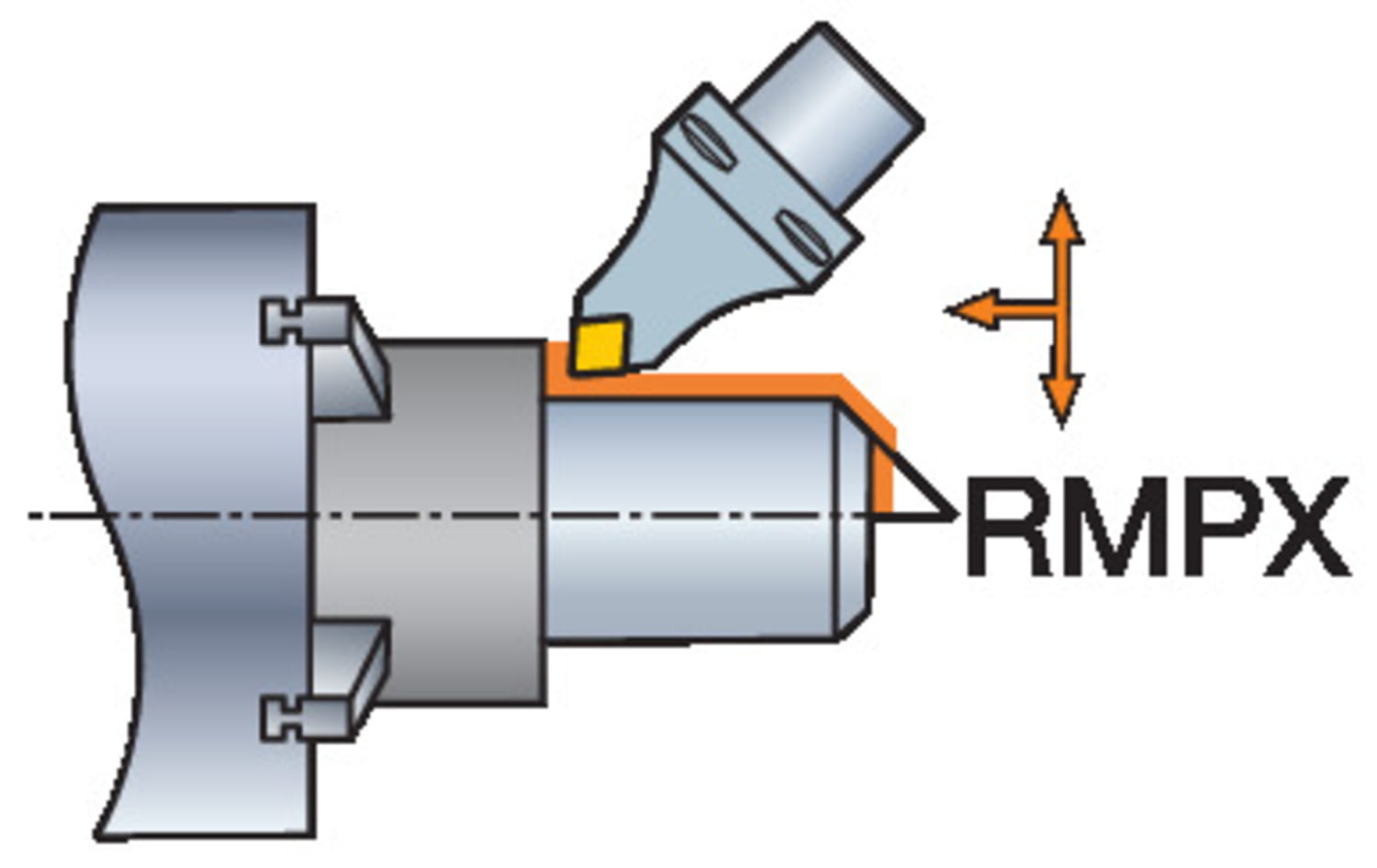

| Rmpx Maximum Ramping Angle | 0 deg |
| Inne parametry | |
| Ean Number | 26066662 |
