T-Max® P, narzędzie tokarskie C5-PDUNR-27140-15HP ID:6188695 Sandvik
Dostępność:
duża ilość
Cena brutto:
2 828,08 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
2 299,25 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
3 327,15 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
6188695
Opis

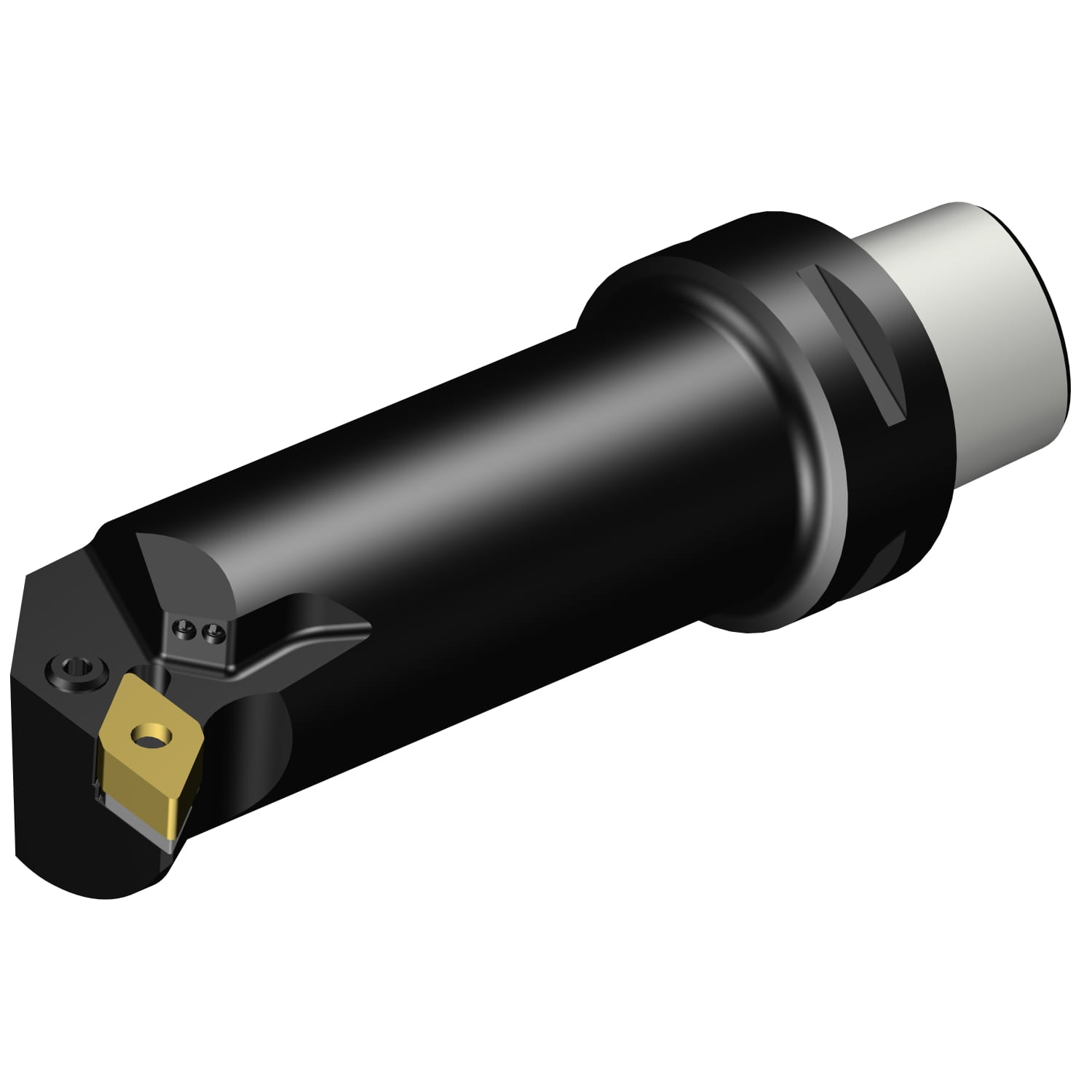

T-Max® P, narzędzie tokarskie
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | T-Max® P, narzędzie tokarskie |
| Rodzina produktów | 1049 |
| Product Subfamily Code (Tsyc) | Cx-PDUNR/L..HP (INT) |
| Rodzina produktów | Carriers for Concept Inserts |
| Country Of Origin | SE |
| Wymiary | |

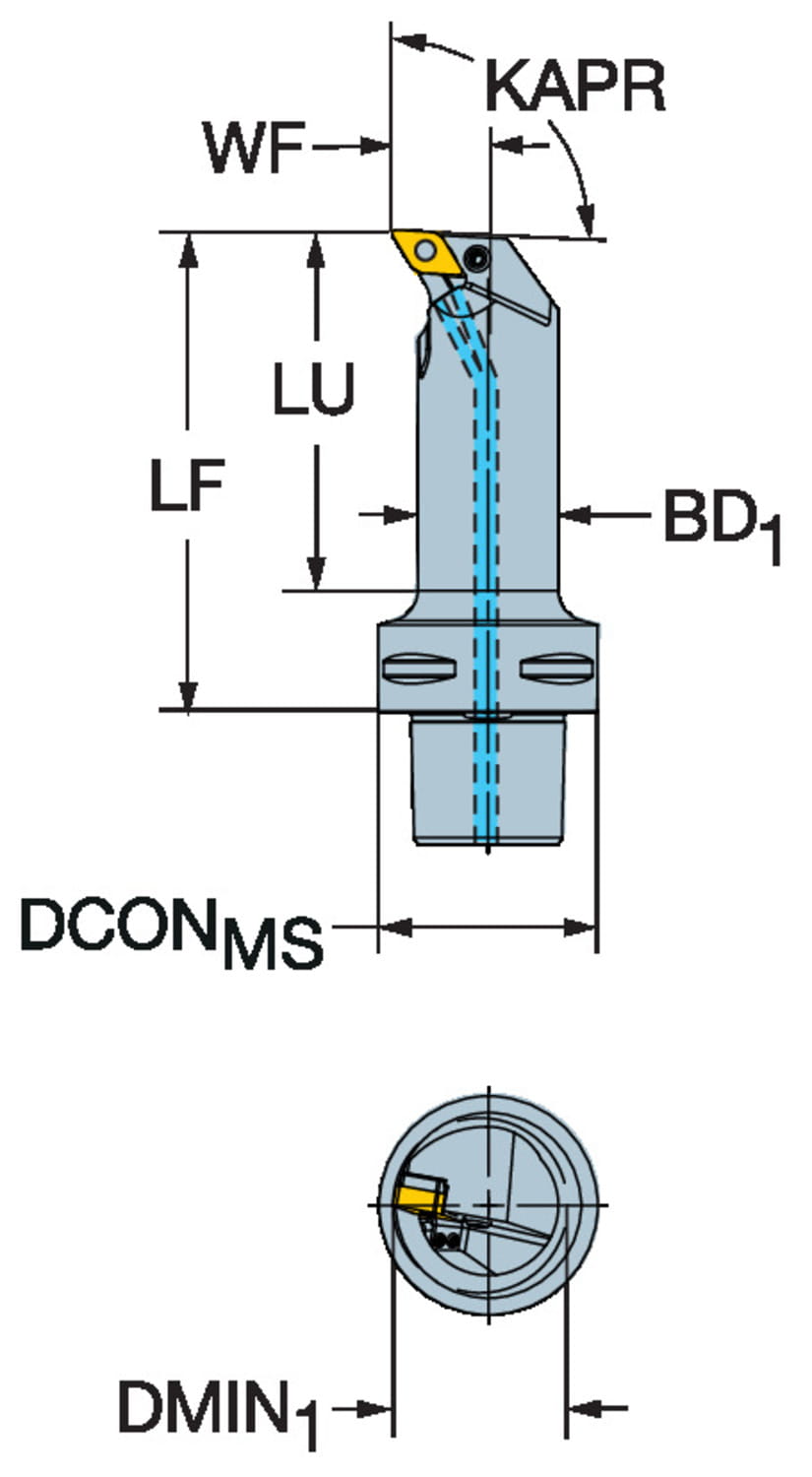

| Dconms Connection Diameter | 1.9685 inch |
| Dconms Connection Diameter | 50 mm |
| Dmin1 Minimum Bore Diameter | 1.9685 inch |
| Dmin1 Minimum Bore Diameter | 50 mm |
| Lf Functional Length | 5.51181 inch |
| Lf Functional Length | 140 mm |
| Lu Usable Length | 4.55118 inch |
| Lu Usable Length | 115.6 mm |
| Waga | 3.03577 lb |
| Waga | 1.377 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | Coromant Capto (bolt and segment clamping) -size C5 |
| Bams Machine Side Body Angle | 0 deg |
| Baws Workpiece Side Body Angle | 0 deg |
| Bmc Body Material Code | Steel |
| Cnsc Coolant Entry Style Code | 3: axial concentric and radial entry |
| Cutint Master Part 2 Of Cutting Item Interface Identifiers | DNMG 150608 |
| Cxsc Coolant Exit Style Code | 8: decentral focused exit with nozzles |
| Dpc Damping Property | no |
| Hand Hand | R |
| Kapr Tool Cutting Edge Angle | 93 deg |
| Ohx Maximum Overhang | 5.51181 inch |
| Ohx Maximum Overhang | 140 mm |
| Psir Tool Lead Angle | -3 deg |

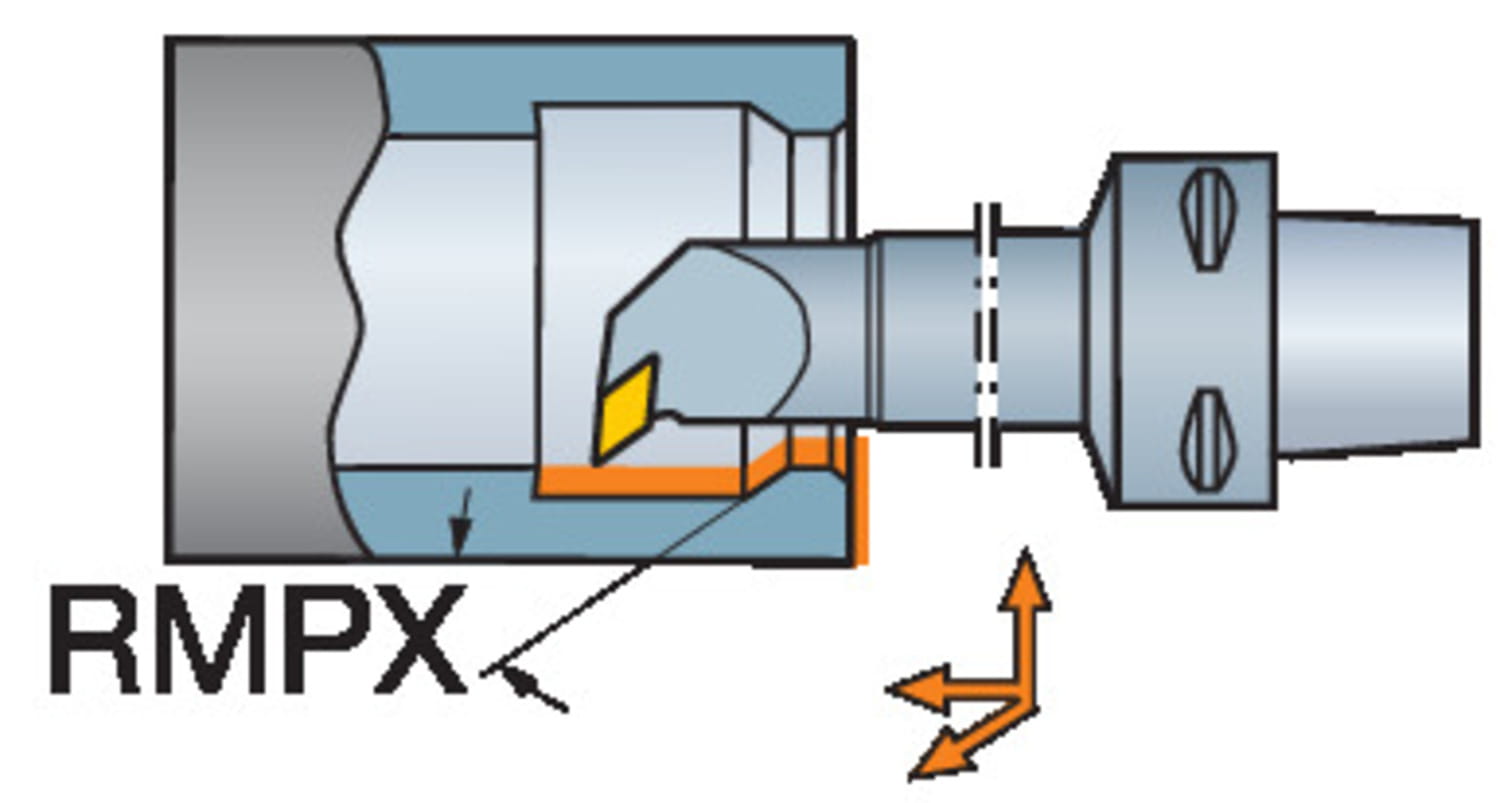

| Rmpx Maximum Ramping Angle | 27 deg |
| Inne parametry | |
| Ean Number | 26188695 |
