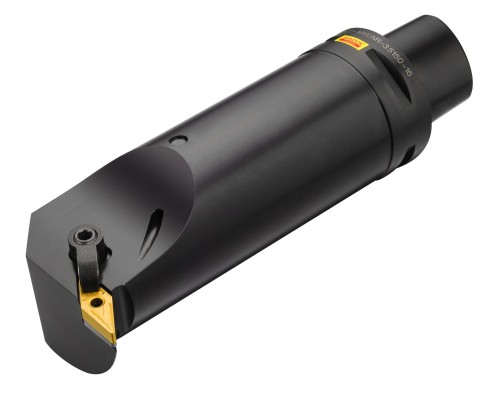

T-Max® P, narzędzie tokarskie C6-MVUNR-35175-16 ID:5729318 Sandvik
Dostępność:
duża ilość
Cena brutto:
2 618,98 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
2 129,25 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
3 081,15 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
5729318
Opis
T-Max® P, narzędzie tokarskie
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | T-Max® P, narzędzie tokarskie |
| Rodzina produktów | 1049 |
| Product Subfamily Code (Tsyc) | Cx-MVUNR/L (INT) |
| Rodzina produktów | Carriers for Concept Inserts |
| Country Of Origin | US |
| Wymiary | |
| Dconms Connection Diameter | 2.48031 inch |
| Dconms Connection Diameter | 63 mm |
| Dmin1 Minimum Bore Diameter | 2.48031 inch |
| Dmin1 Minimum Bore Diameter | 63 mm |
| Lf Functional Length | 6.88976 inch |
| Lf Functional Length | 175 mm |
| Lu Usable Length | 5.98425 inch |
| Lu Usable Length | 152 mm |
| Waga | 6.39341 lb |
| Waga | 2.9 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | Coromant Capto (bolt and segment clamping) -size C6 |
| Bams Machine Side Body Angle | 0 deg |
| Baws Workpiece Side Body Angle | 0 deg |
| Bmc Body Material Code | Steel |
| Cnsc Coolant Entry Style Code | 3: axial concentric and radial entry |
| Cutint Master Part 2 Of Cutting Item Interface Identifiers | VNMG 160408 |
| Cxsc Coolant Exit Style Code | 3: axial inclined exit |
| Dpc Damping Property | no |
| Hand Hand | R |
| Kapr Tool Cutting Edge Angle | 93 deg |
| Ohx Maximum Overhang | 6.88976 inch |
| Ohx Maximum Overhang | 175 mm |
| Psir Tool Lead Angle | -3 deg |
| Rmpx Maximum Ramping Angle | 30 deg |
| Inne parametry | |
| Ean Number | 10536525 |
