T-Max® P, narzędzie tokarskie C8-DSSNR-55070-25 ID:5729423 Sandvik
Dostępność:
duża ilość
Cena brutto:
2 140,20 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
1 740,00 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
1 974,15 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
5729423
Opis

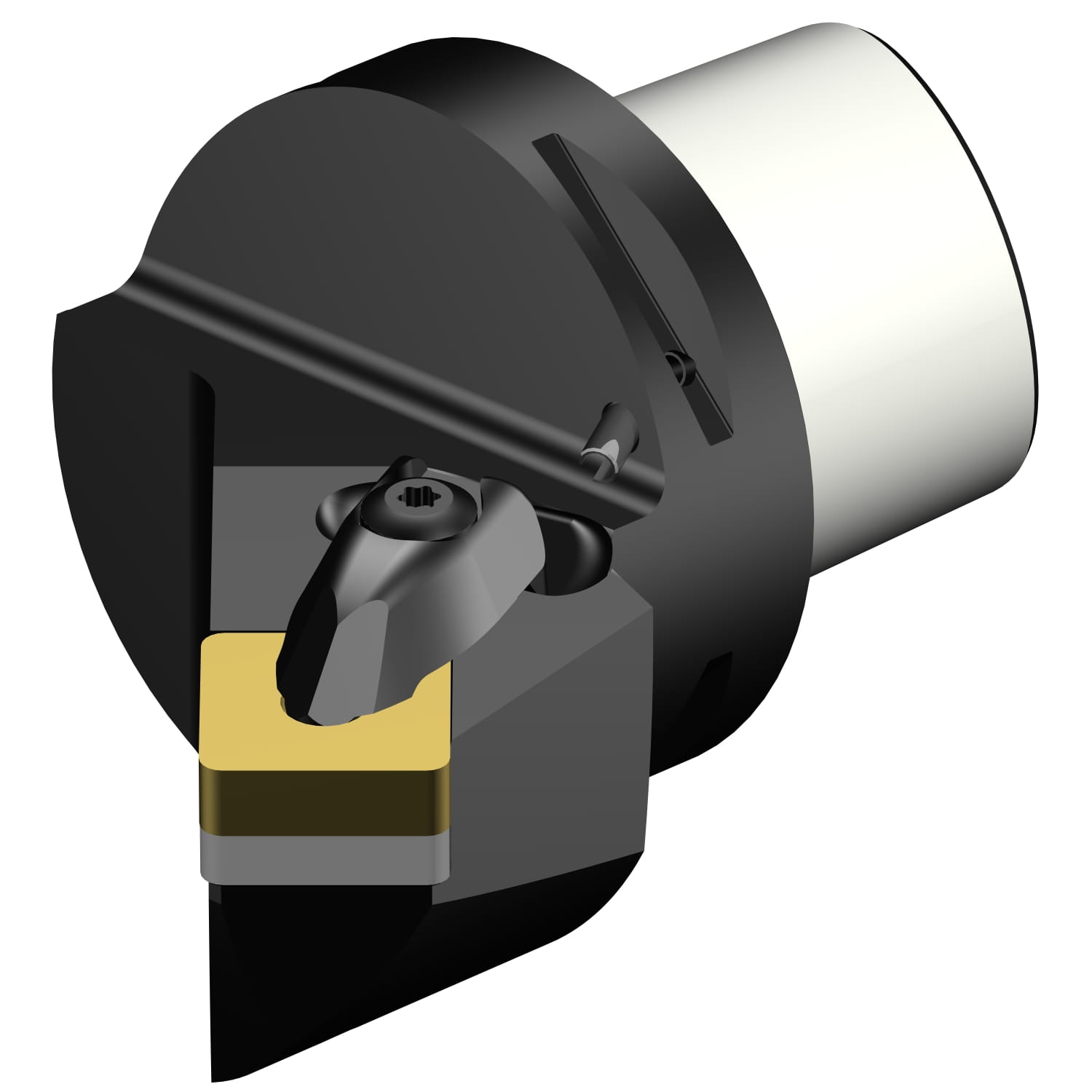

T-Max® P, narzędzie tokarskie
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | T-Max® P, narzędzie tokarskie |
| Rodzina produktów | 1049 |
| Product Subfamily Code (Tsyc) | Cx-DSSNR/L |
| Rodzina produktów | Carriers for Concept Inserts |
| Country Of Origin | SE |
| Wymiary | |

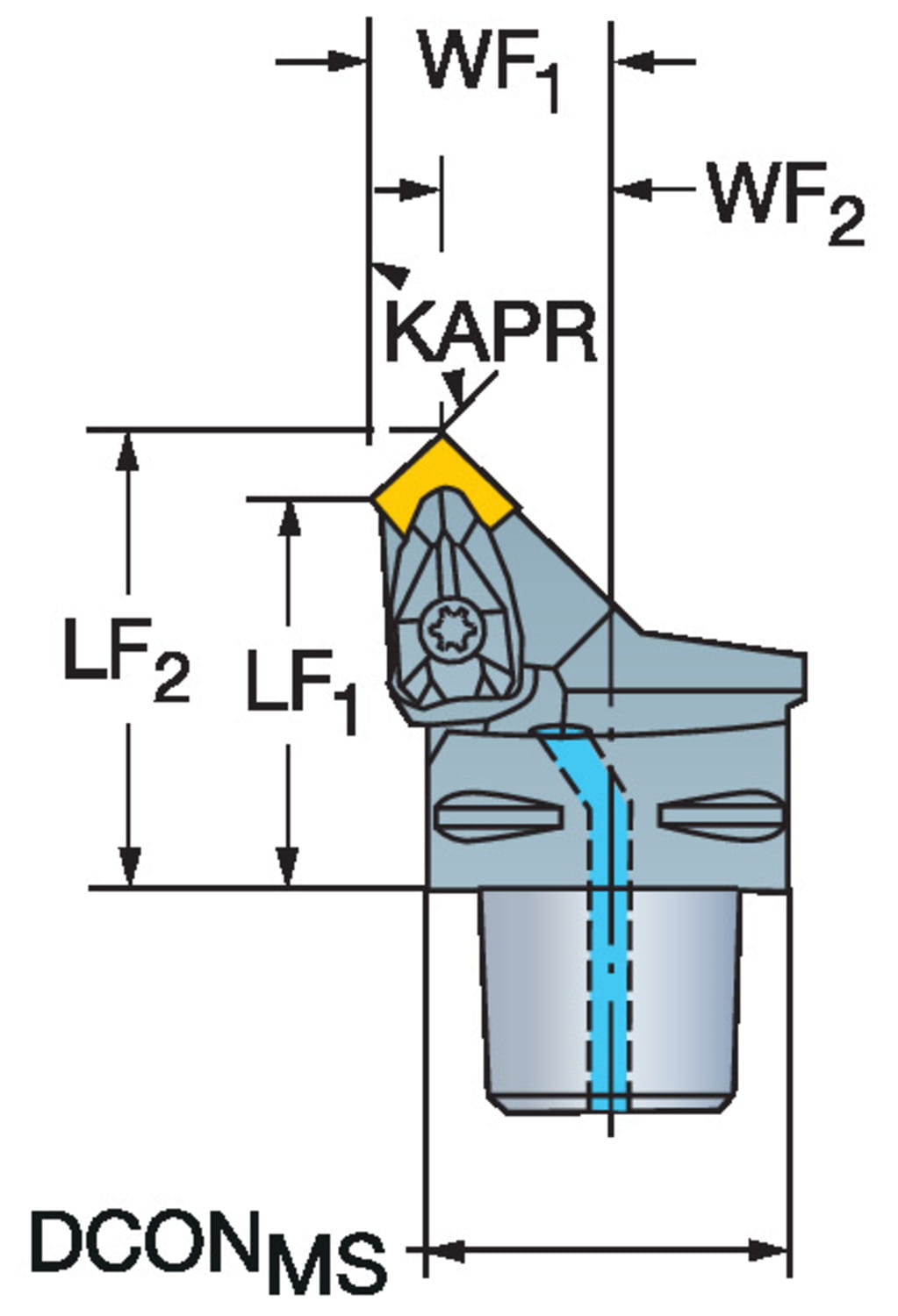

| Dconms Connection Diameter | 3.14961 inch |
| Dconms Connection Diameter | 80 mm |

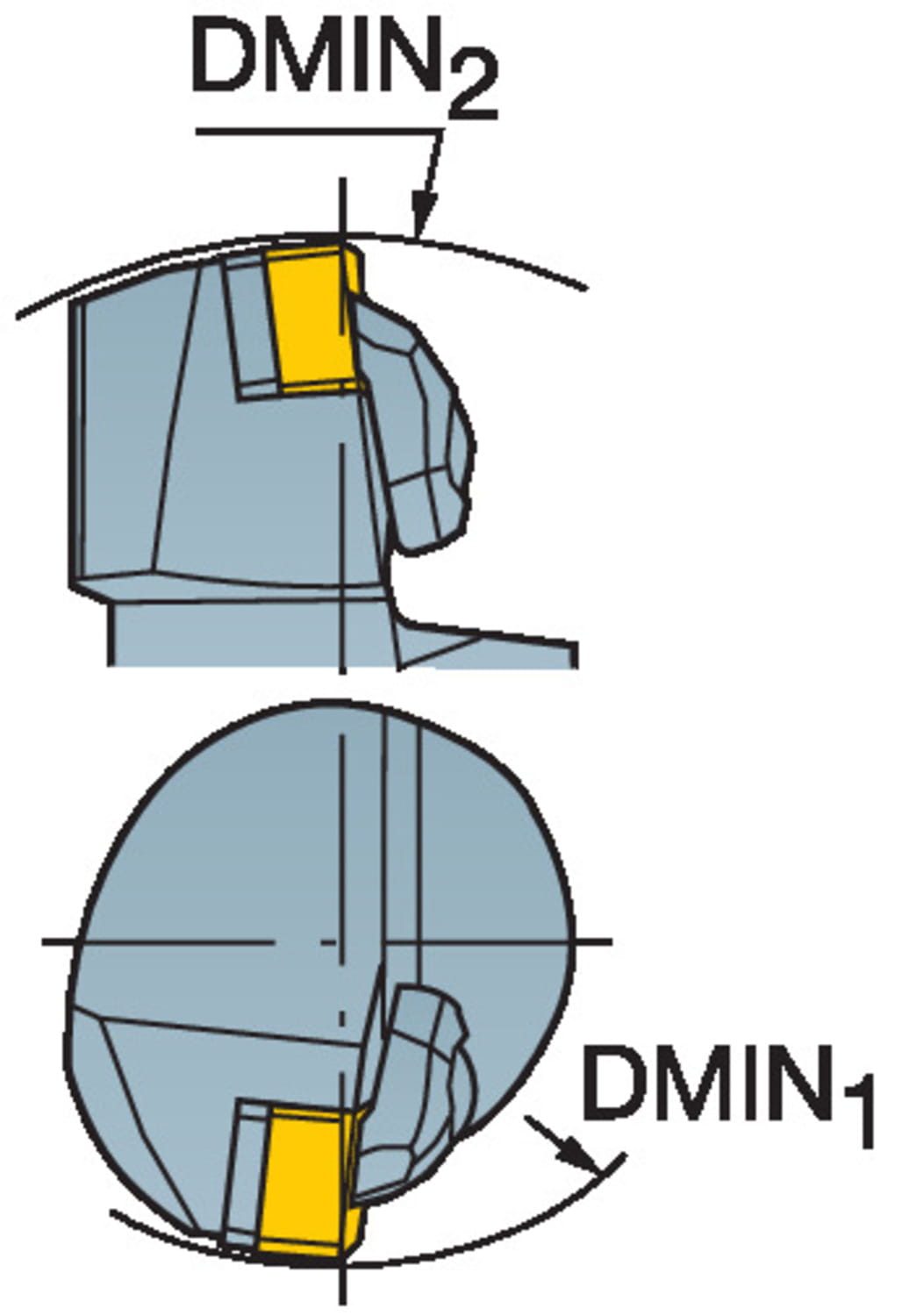

| Dmin1 Minimum Bore Diameter | 5.90551 inch |
| Dmin1 Minimum Bore Diameter | 150 mm |
| Dmin2 Minimum Bore Diameter | 10.0787 inch |
| Dmin2 Minimum Bore Diameter | 256 mm |
| Lf Functional Length | 2.75591 inch |
| Lf Functional Length | 70 mm |
| Waga | 5.33299 lb |
| Waga | 2.419 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | Coromant Capto (bolt and segment clamping) -size C8 |
| Bams Machine Side Body Angle | 0 deg |
| Baws Workpiece Side Body Angle | 0 deg |
| Bmc Body Material Code | Steel |
| Cnsc Coolant Entry Style Code | 3: axial concentric and radial entry |
| Cutint Master Part 2 Of Cutting Item Interface Identifiers | SNMG 250724 |
| Cxsc Coolant Exit Style Code | 3: axial inclined exit |
| Dpc Damping Property | no |
| Hand Hand | R |
| Kapr Tool Cutting Edge Angle | 45 deg |
| Ohx Maximum Overhang | 2.75591 inch |
| Ohx Maximum Overhang | 70 mm |
| Psir Tool Lead Angle | 45 deg |
| Rmpx Maximum Ramping Angle | 0 deg |
| Inne parametry | |
| Ean Number | 11413172 |
