T-Max® P, narzędzie tokarskie C8-PCMNN-00150-12HP ID:5729986 Sandvik
Dostępność:
duża ilość
Cena brutto:
4 495,65 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
3 655,00 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
4 138,95 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
5729986
Opis

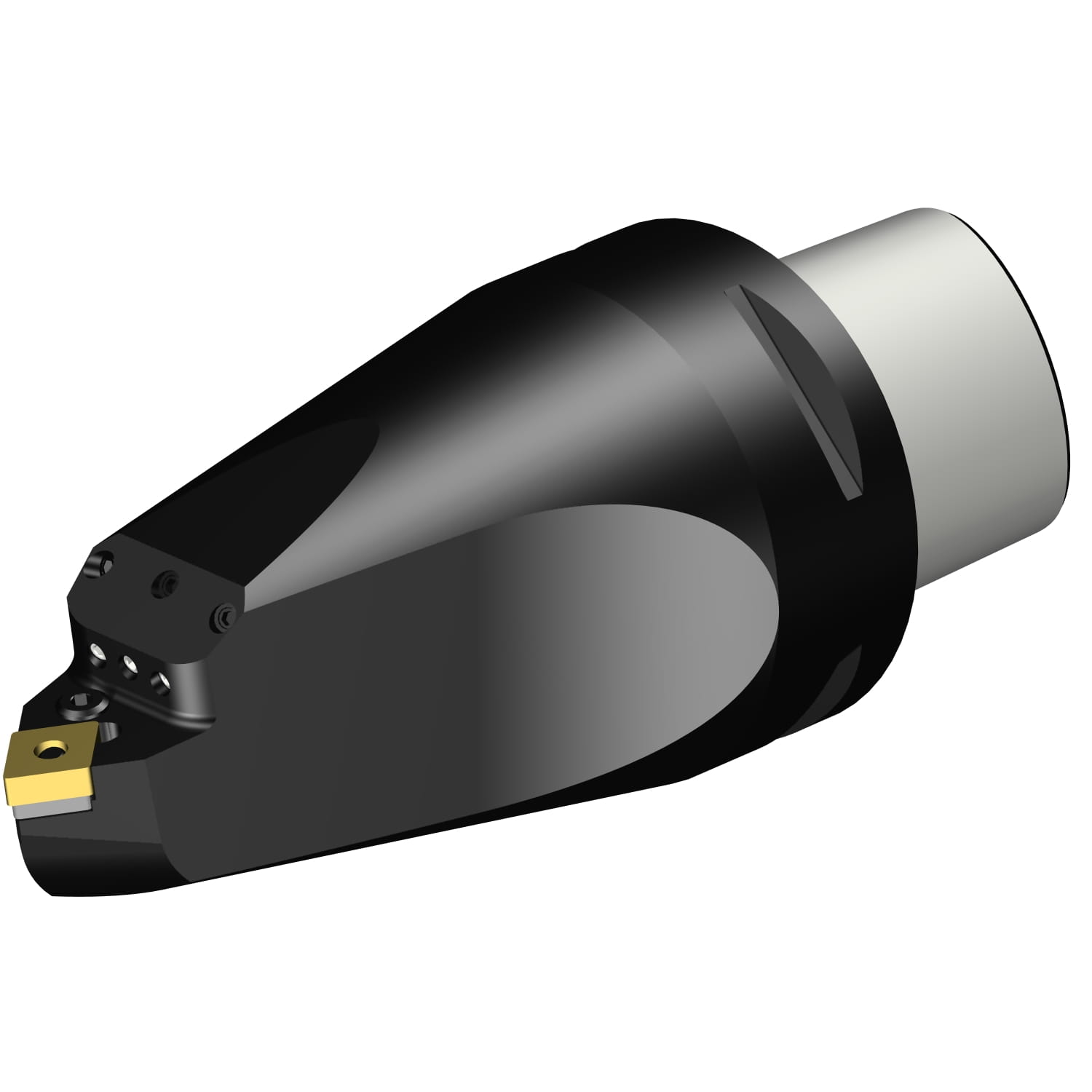

T-Max® P, narzędzie tokarskie
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | T-Max® P, narzędzie tokarskie |
| Rodzina produktów | 1049 |
| Product Subfamily Code (Tsyc) | Cx-PCMNN..HP (M-T) |
| Rodzina produktów | Carriers for Concept Inserts |
| Country Of Origin | IN |
| Wymiary | |

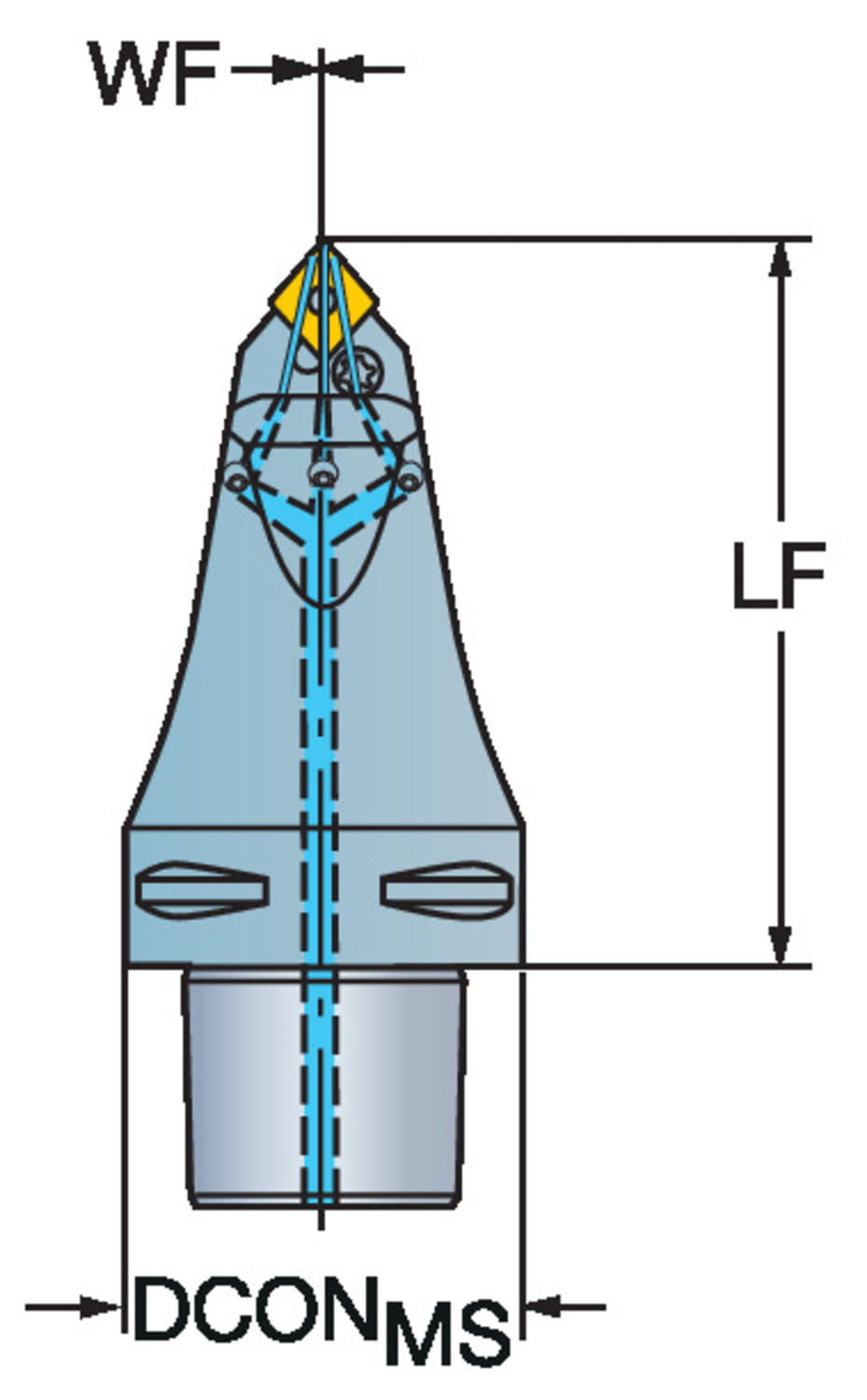

| Dconms Connection Diameter | 3.14961 inch |
| Dconms Connection Diameter | 80 mm |
| Dmin2 Minimum Bore Diameter | 12.4016 inch |
| Dmin2 Minimum Bore Diameter | 315 mm |
| Lf Functional Length | 5.90551 inch |
| Lf Functional Length | 150 mm |
| Waga | 8.46796 lb |
| Waga | 3.841 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | Coromant Capto (bolt and segment clamping) -size C8 |
| Bams Machine Side Body Angle | 45 deg |
| Baws Workpiece Side Body Angle | 0 deg |
| Bmc Body Material Code | Steel |
| Cnsc Coolant Entry Style Code | 3: axial concentric and radial entry |
| Cutint Master Part 2 Of Cutting Item Interface Identifiers | CNMG 120408 |
| Cxsc Coolant Exit Style Code | 8: decentral focused exit with nozzles |
| Dpc Damping Property | no |
| Hand Hand | N |

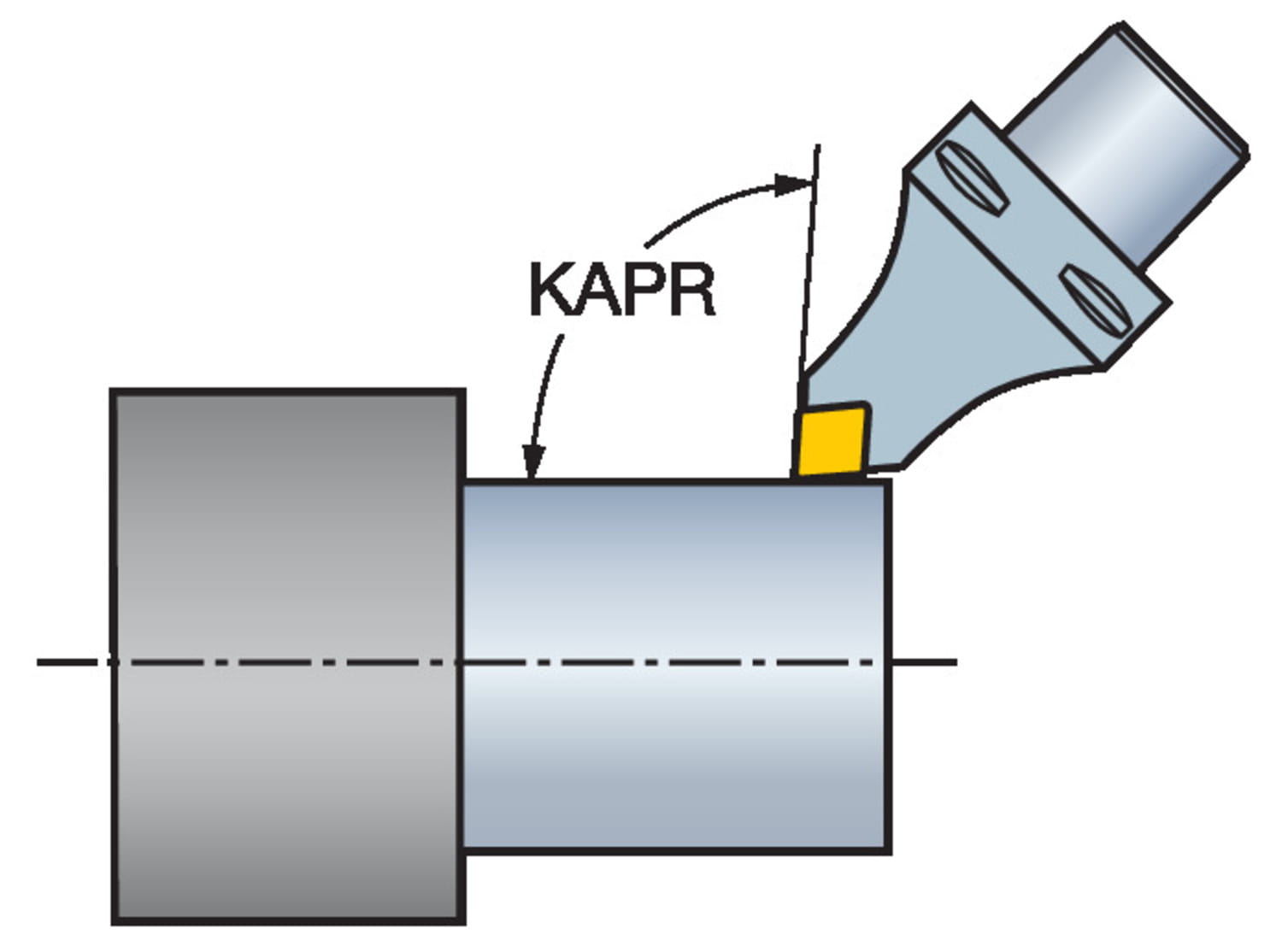

| Kapr Tool Cutting Edge Angle | 95 deg |
| Ohx Maximum Overhang | 5.90551 inch |
| Ohx Maximum Overhang | 150 mm |
| Psir Tool Lead Angle | -5 deg |

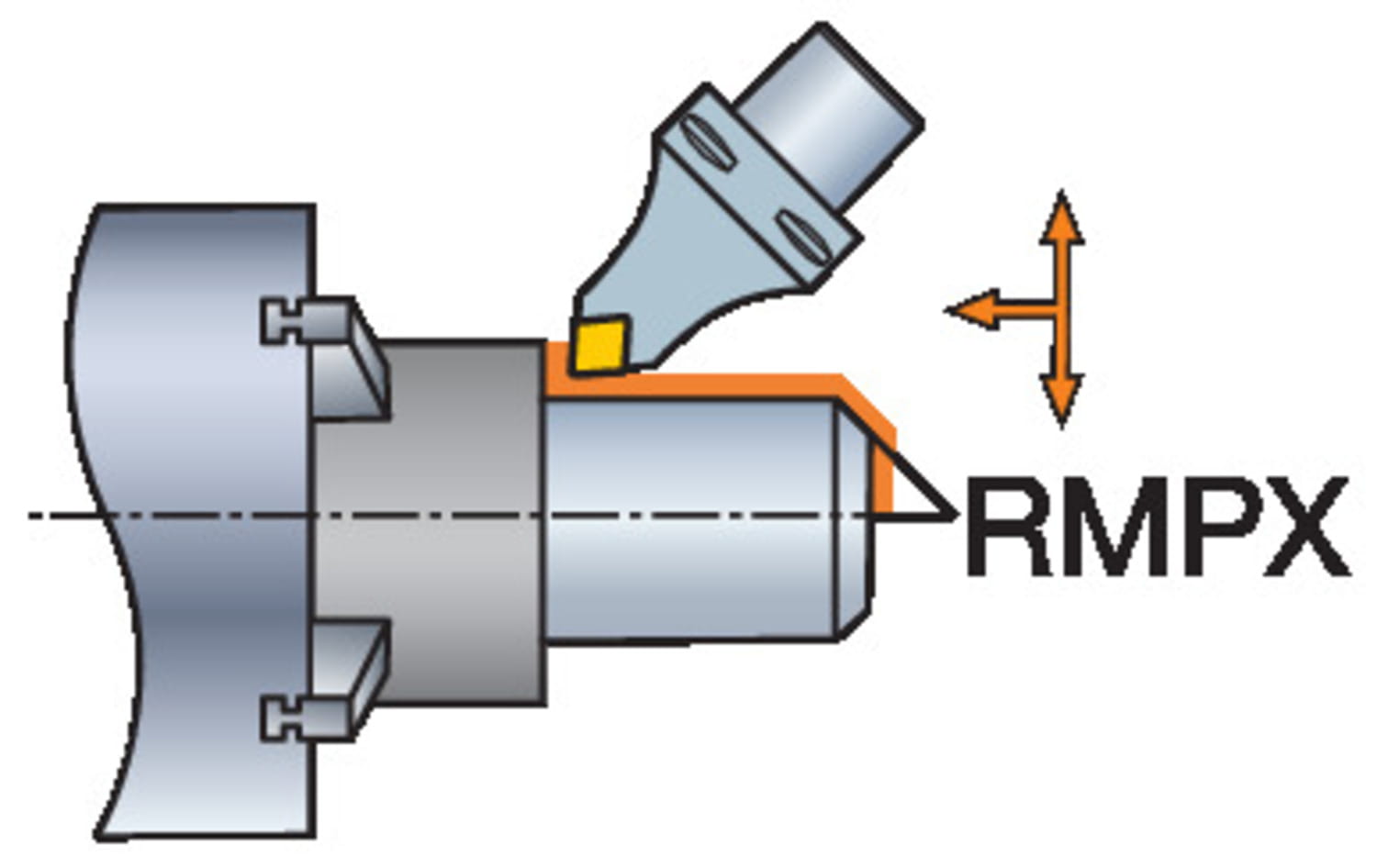

| Rmpx Maximum Ramping Angle | 0 deg |
| Inne parametry | |
| Ean Number | 12324513 |
