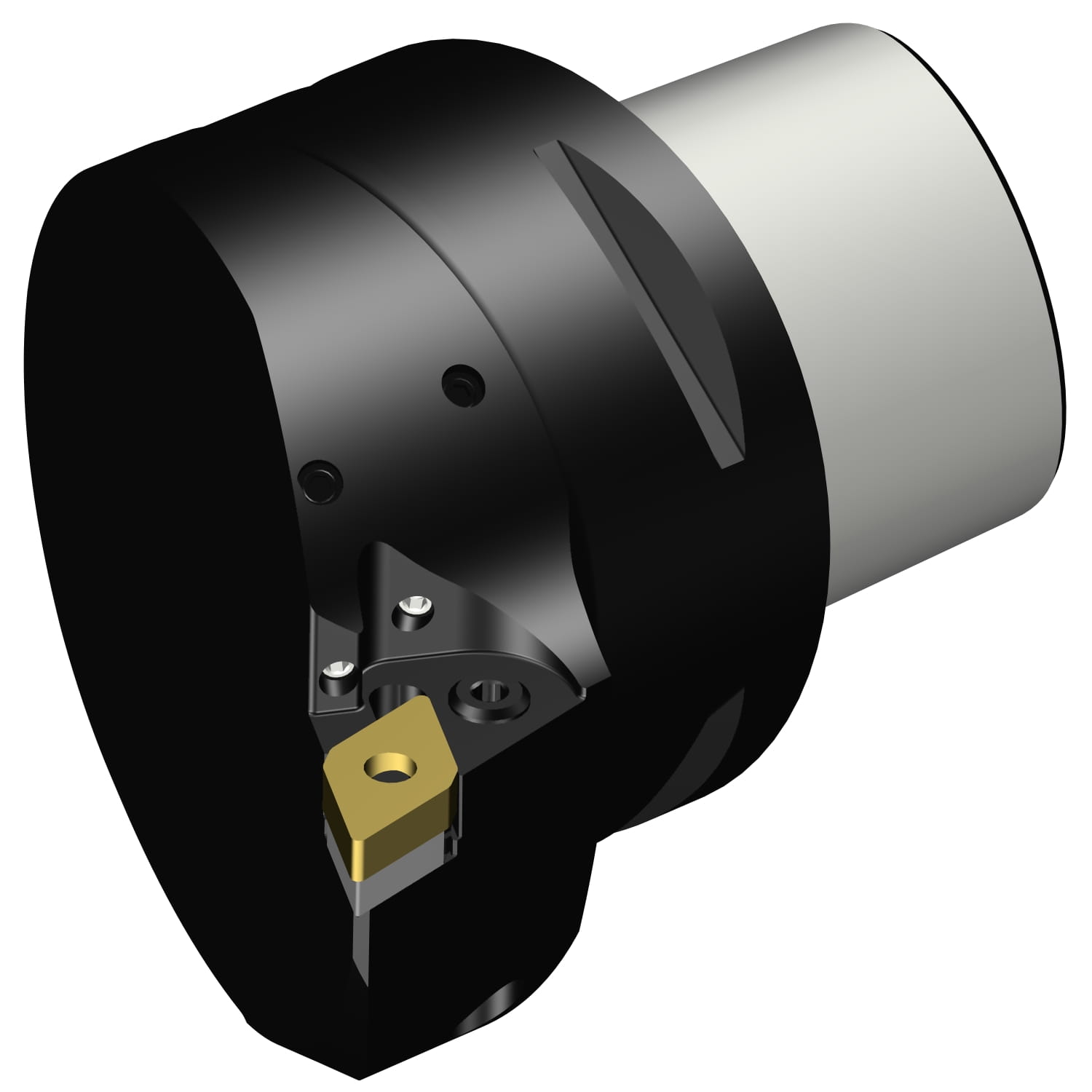

T-Max® P, narzędzie tokarskie C8-PDJNR-55080-1504HP ID:5853316 Sandvik
Dostępność:
duża ilość
Cena brutto:
3 216,45 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
2 615,00 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
2 964,30 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
5853316
Opis
T-Max® P, narzędzie tokarskie
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | T-Max® P, narzędzie tokarskie |
| Rodzina produktów | 1049 |
| Product Subfamily Code (Tsyc) | Cx-PDJNR/L..HP |
| Rodzina produktów | Carriers for Concept Inserts |
| Country Of Origin | IN |
| Wymiary | |

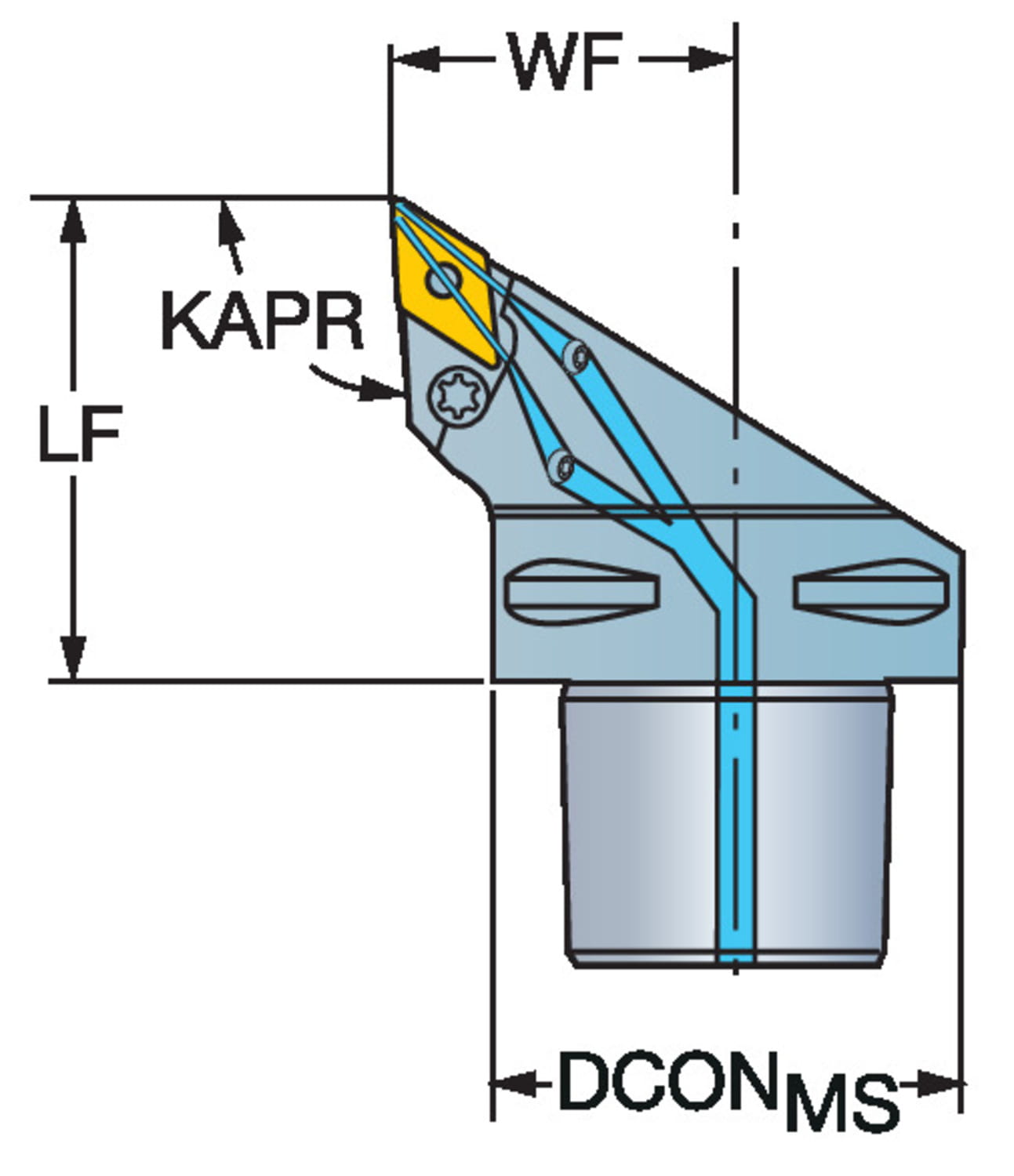

| Dconms Connection Diameter | 3.14961 inch |
| Dconms Connection Diameter | 80 mm |

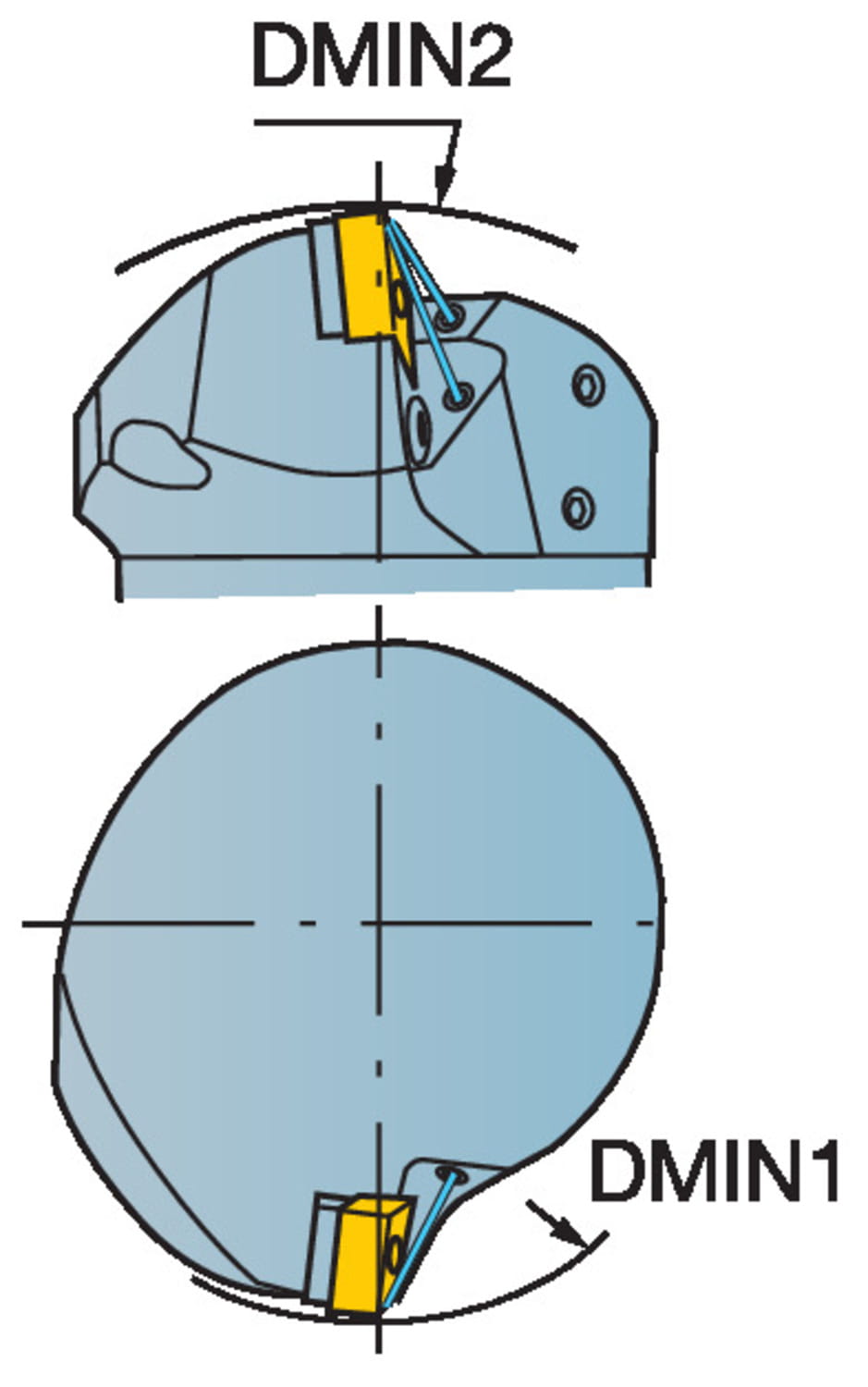

| Dmin1 Minimum Bore Diameter | 5.11811 inch |
| Dmin1 Minimum Bore Diameter | 130 mm |
| Dmin2 Minimum Bore Diameter | 9.84252 inch |
| Dmin2 Minimum Bore Diameter | 250 mm |
| Lf Functional Length | 3.14961 inch |
| Lf Functional Length | 80 mm |
| Waga | 6.02744 lb |
| Waga | 2.734 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | Coromant Capto (bolt and segment clamping) -size C8 |
| Bams Machine Side Body Angle | 0 deg |
| Baws Workpiece Side Body Angle | 0 deg |
| Bmc Body Material Code | Steel |
| Cnsc Coolant Entry Style Code | 3: axial concentric and radial entry |
| Cutint Master Part 2 Of Cutting Item Interface Identifiers | DNMG 150408 |
| Cxsc Coolant Exit Style Code | 8: decentral focused exit with nozzles |
| Dpc Damping Property | no |
| Hand Hand | R |
| Kapr Tool Cutting Edge Angle | 93 deg |
| Ohx Maximum Overhang | 3.14961 inch |
| Ohx Maximum Overhang | 80 mm |
| Psir Tool Lead Angle | -3 deg |

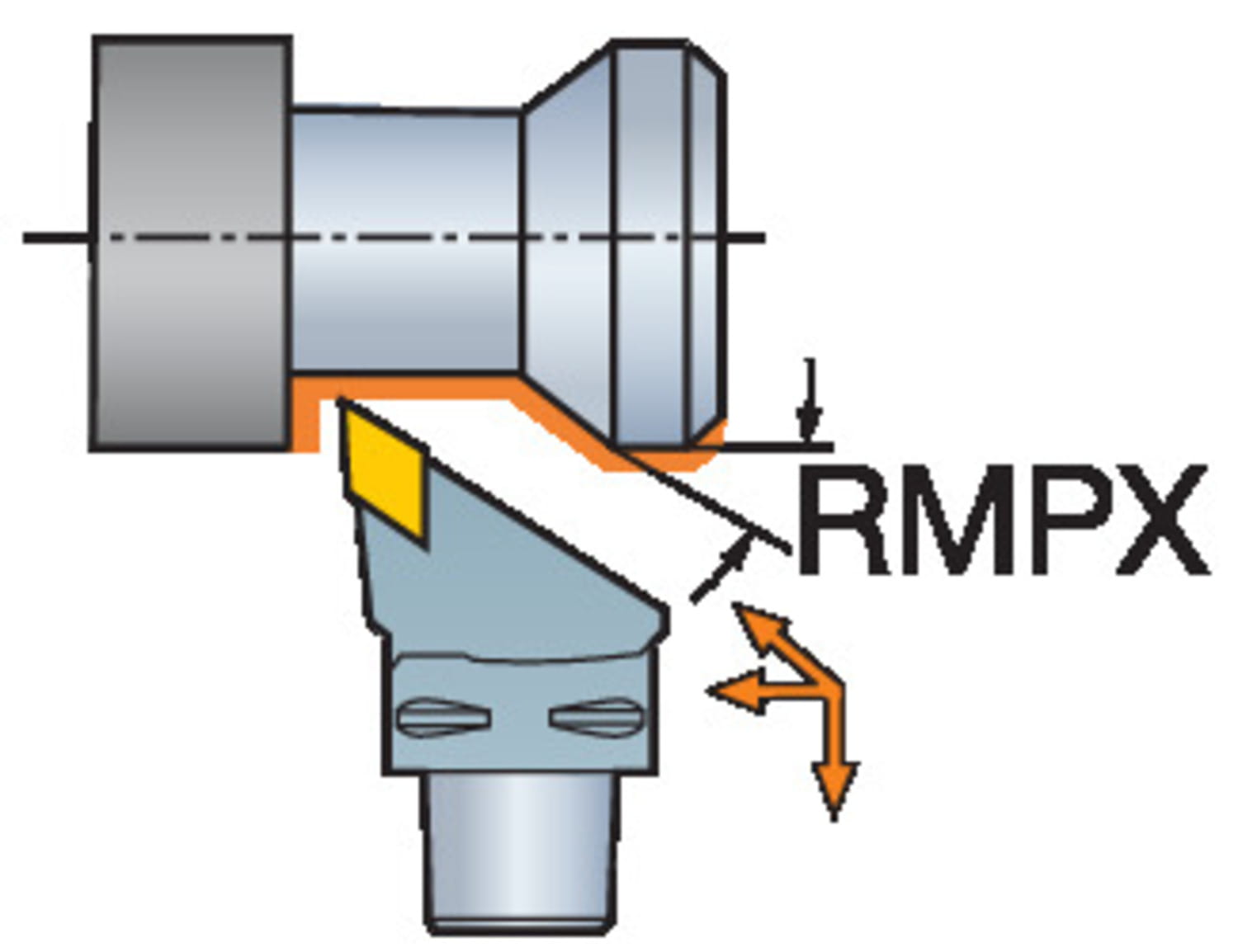

| Rmpx Maximum Ramping Angle | 27 deg |
| Inne parametry | |
| Ean Number | 25853316 |
| Replacement Product - Material Id | 5853310 |
| Replacement Product - Ordering Code | C8-PDJNR-55080-15HP |
| Replacement Product Url | https://www.sandvik.coromant.com/en-us/product-details?c=C8-PDJNR-55080-15HP |
