T-Max® P, narzędzie tokarskie HT10-PCMNN-00115-12C ID:8626954 Sandvik
Dostępność:
duża ilość
Cena brutto:
6 734,25 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
5 475,00 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
6 199,20 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
8626954
Opis
T-Max® P, narzędzie tokarskie
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | T-Max® P, narzędzie tokarskie |
| Rodzina produktów | 1049 |
| Product Subfamily Code (Tsyc) | HTxx-PCMNN..C |
| Rodzina produktów | Carriers for Concept Inserts |
| Country Of Origin | DE |
| Wymiary | |

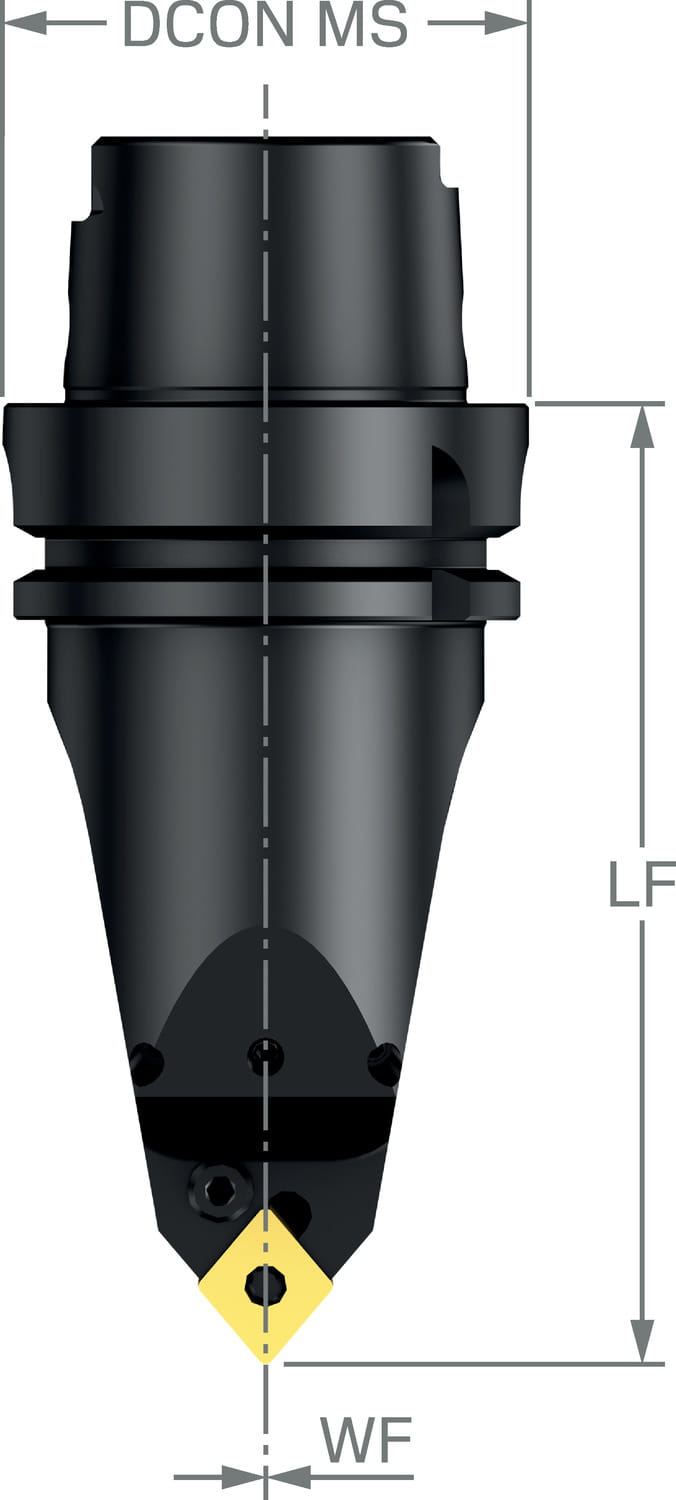

| Dconms Connection Diameter | 3.93701 inch |
| Dconms Connection Diameter | 100 mm |
| Dmin2 Minimum Bore Diameter | 9.44882 inch |
| Dmin2 Minimum Bore Diameter | 240 mm |
| Lf Functional Length | 4.52756 inch |
| Lf Functional Length | 115 mm |
| Waga | 4.13588 lb |
| Waga | 1.876 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | HSK -T -size 100 |
| Bams Machine Side Body Angle | 45 deg |
| Baws Workpiece Side Body Angle | 0 deg |
| Bmc Body Material Code | Steel |
| Cnsc Coolant Entry Style Code | 1: axial concentric entry |
| Cutint Master Part 2 Of Cutting Item Interface Identifiers | CNMG 120408 |
| Cxsc Coolant Exit Style Code | 7: axial inclined focused exit with nozzle |
| Dcp Data Chip Provision | yes |
| Dcps Data Chip Provision Size | D10/H4,5 |
| Dpc Damping Property | no |
| Hand Hand | N |
| Kapr Tool Cutting Edge Angle | 95 deg |
| Ohx Maximum Overhang | 4.52756 inch |
| Ohx Maximum Overhang | 115 mm |
| Psir Tool Lead Angle | -5 deg |
| Rmpx Maximum Ramping Angle | 0 deg |
| Inne parametry | |
| Ean Number | 7323228254462 |
