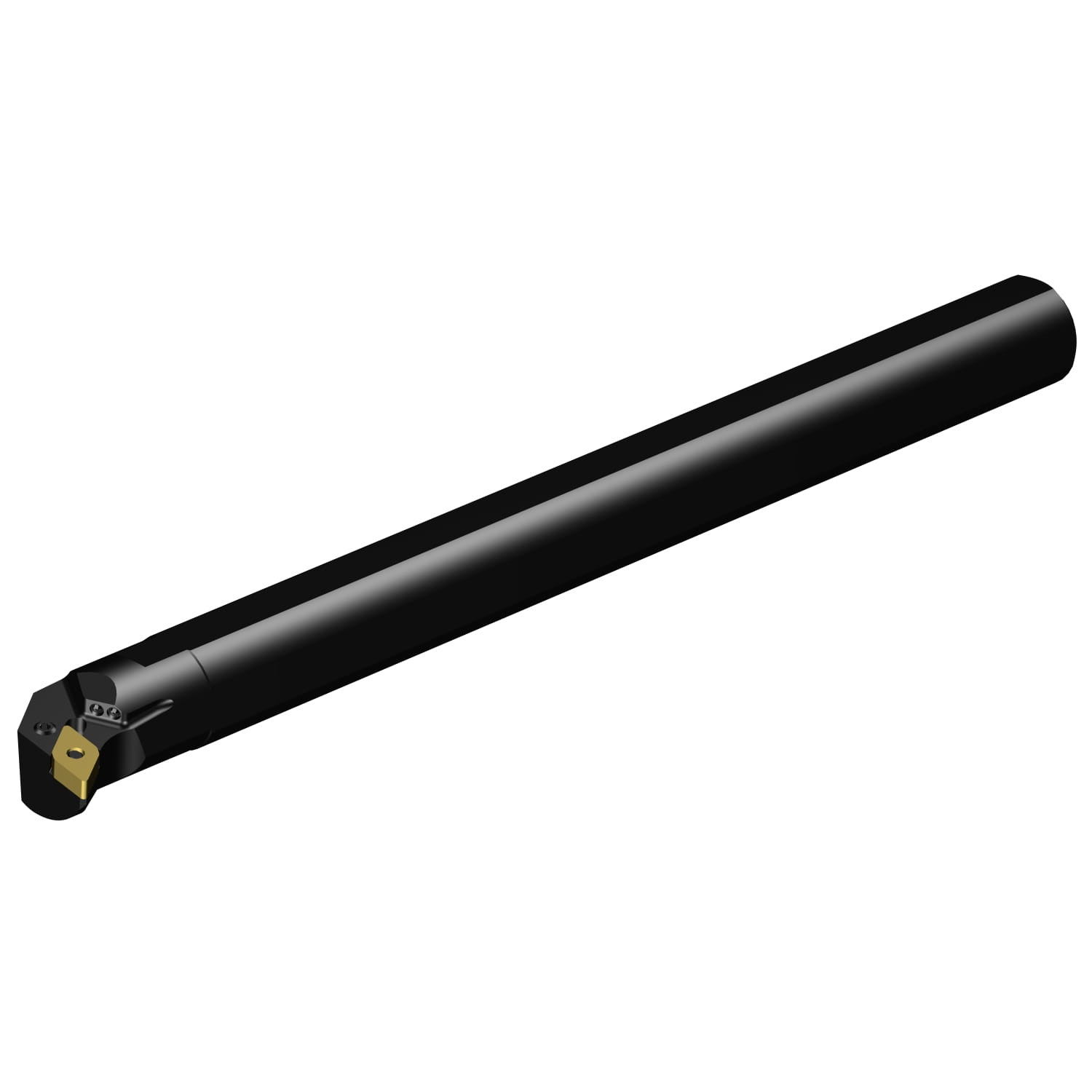

T-Max® P, wytaczak A16T-PDUNR3HP ID:6339963 Sandvik
Dostępność:
duża ilość
Cena brutto:
2 169,41 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
1 763,75 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
2 552,25 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
6339963
Opis
T-Max® P, wytaczak
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | T-Max® P, wytaczak |
| Rodzina produktów | 1049 |
| Product Subfamily Code (Tsyc) | A..PDUNR/L..HP (INCH) |
| Rodzina produktów | Carriers for ISO Inserts |
| Country Of Origin | US |
| Wymiary | |

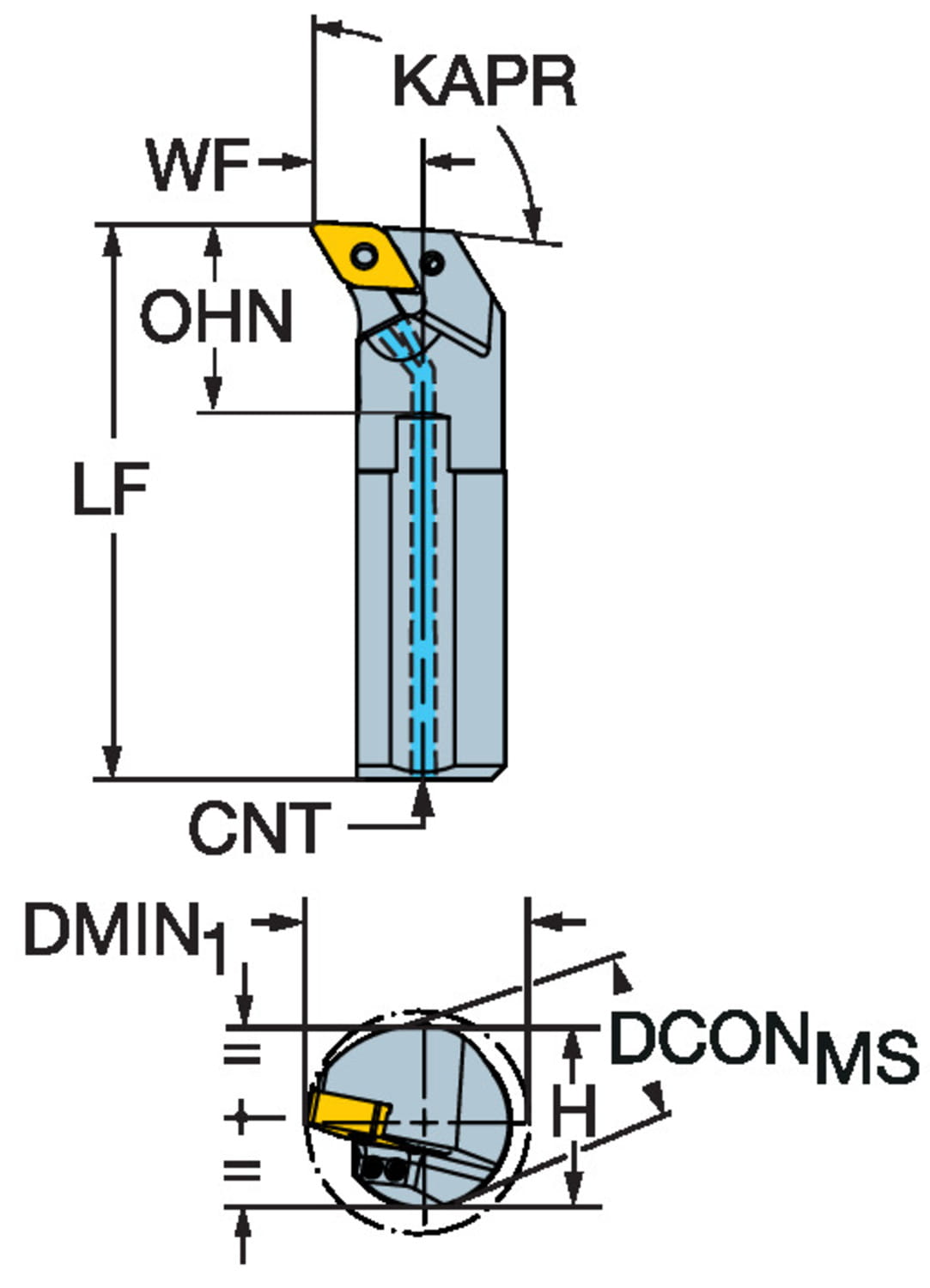

| Dconms Connection Diameter | 1 inch |
| Dconms Connection Diameter | 25.4 mm |
| Dmin1 Minimum Bore Diameter | 1.25197 inch |
| Dmin1 Minimum Bore Diameter | 31.8 mm |
| H Shank Height | 0.905512 inch |
| H Shank Height | 23 mm |
| Lf Functional Length | 12 inch |
| Lf Functional Length | 304.8 mm |
| Waga | 2.17156 lb |
| Waga | 0.985 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | Cylindrical shank w/ 3 flats -inch: 1 |
| Bams Machine Side Body Angle | 0 deg |
| Baws Workpiece Side Body Angle | 0 deg |
| Bmc Body Material Code | Steel |
| Cnsc Coolant Entry Style Code | 1: axial concentric entry |
| Cutint Master Part 2 Of Cutting Item Interface Identifiers | DNMG 110408 |
| Cxsc Coolant Exit Style Code | 8: decentral focused exit with nozzles |
| Dpc Damping Property | no |
| Hand Hand | R |
| Kapr Tool Cutting Edge Angle | 93 deg |
| Ohx Maximum Overhang | 4 inch |
| Ohx Maximum Overhang | 101.6 mm |
| Psir Tool Lead Angle | -3 deg |

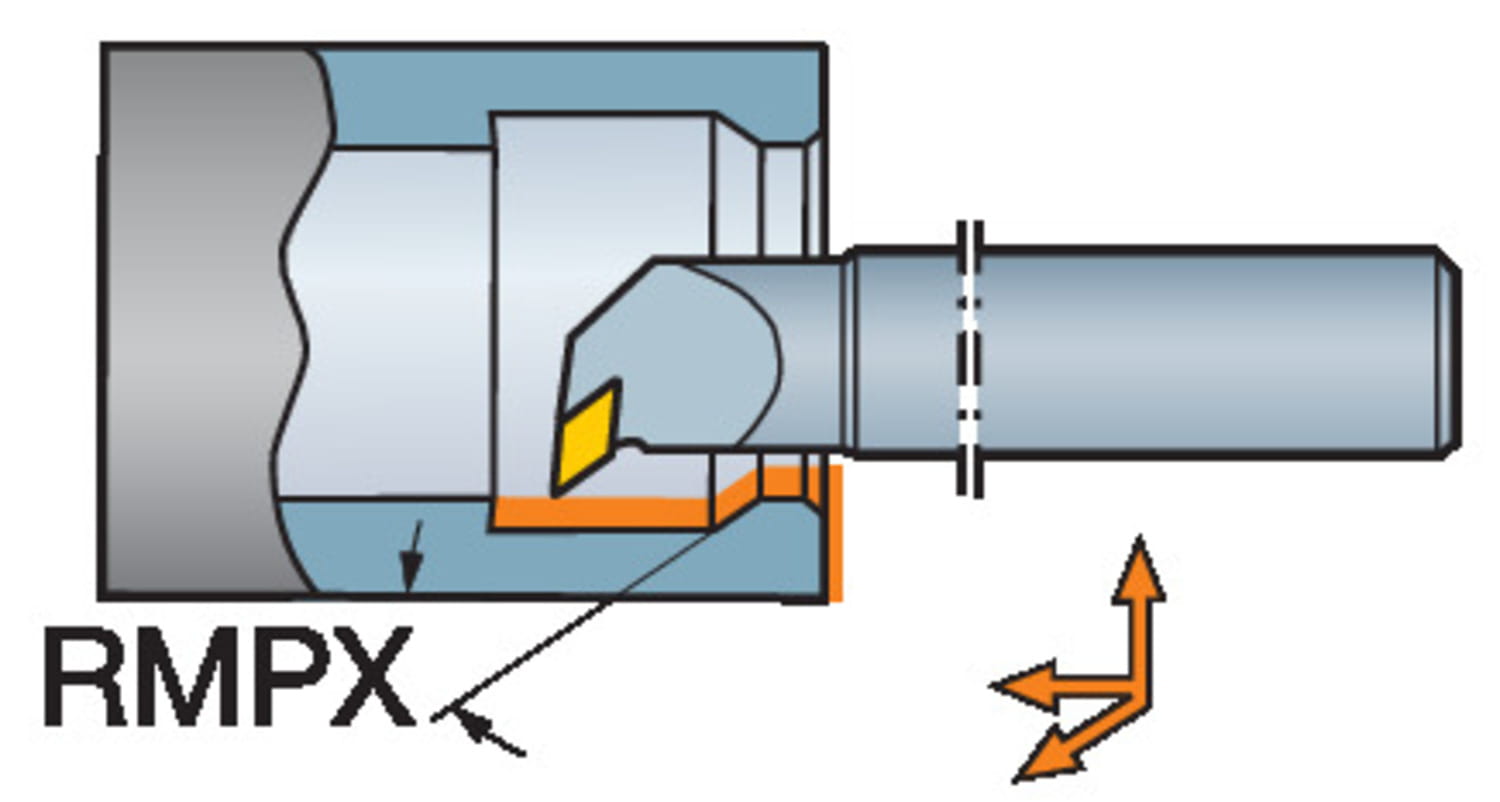

| Rmpx Maximum Ramping Angle | 27 deg |
| Inne parametry | |
| Ean Number | 26339963 |
