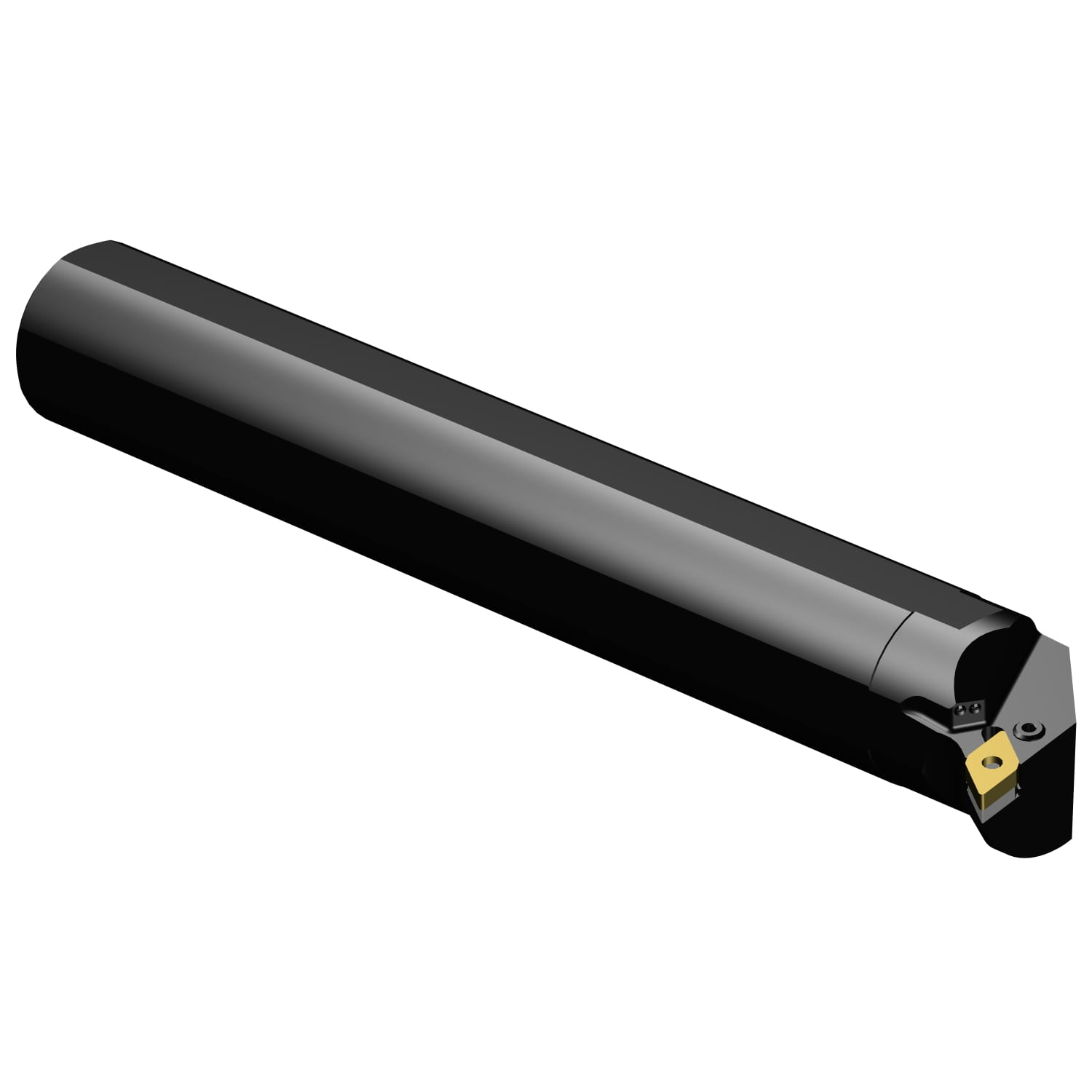

T-Max® P, wytaczak A32U-PDUNL4HP ID:6339986 Sandvik
Dostępność:
duża ilość
Cena brutto:
3 084,23 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
2 507,50 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
3 628,50 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
6339986
Opis
T-Max® P, wytaczak
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | T-Max® P, wytaczak |
| Rodzina produktów | 1049 |
| Product Subfamily Code (Tsyc) | A..PDUNR/L..HP (INCH) |
| Rodzina produktów | Carriers for ISO Inserts |
| Country Of Origin | US |
| Wymiary | |

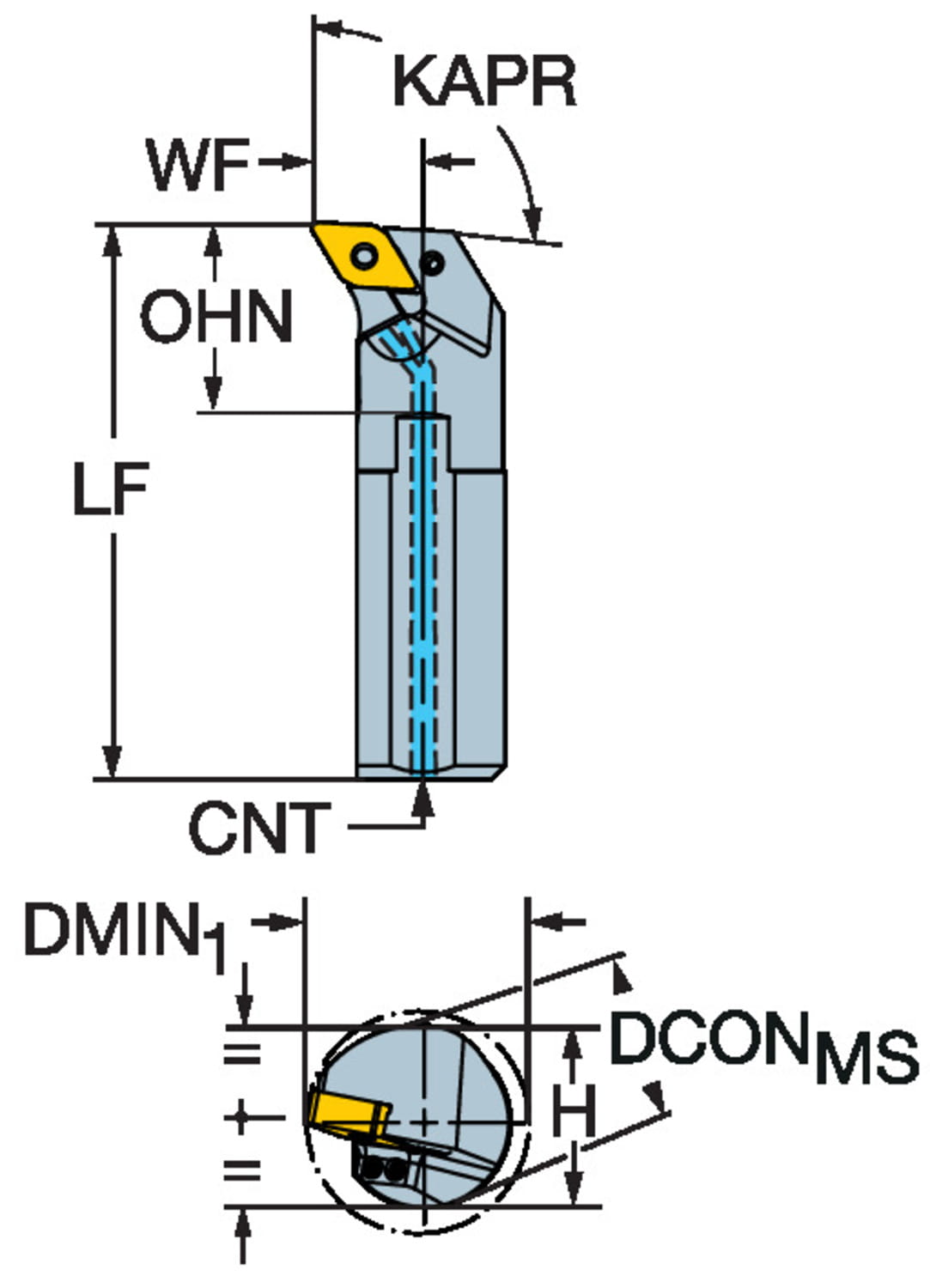

| Dconms Connection Diameter | 2 inch |
| Dconms Connection Diameter | 50.8 mm |
| Dmin1 Minimum Bore Diameter | 2.5 inch |
| Dmin1 Minimum Bore Diameter | 63.5 mm |
| H Shank Height | 1.85039 inch |
| H Shank Height | 47 mm |
| Lf Functional Length | 14 inch |
| Lf Functional Length | 355.6 mm |
| Waga | 11.3009 lb |
| Waga | 5.126 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | Cylindrical shank w/ 3 flats -inch: 2 |
| Bams Machine Side Body Angle | 0 deg |
| Baws Workpiece Side Body Angle | 0 deg |
| Bmc Body Material Code | Steel |
| Cnsc Coolant Entry Style Code | 1: axial concentric entry |
| Cutint Master Part 2 Of Cutting Item Interface Identifiers | DNMG 150408 |
| Cxsc Coolant Exit Style Code | 8: decentral focused exit with nozzles |
| Dpc Damping Property | no |
| Hand Hand | L |
| Kapr Tool Cutting Edge Angle | 93 deg |
| Ohx Maximum Overhang | 8 inch |
| Ohx Maximum Overhang | 203.2 mm |
| Psir Tool Lead Angle | -3 deg |

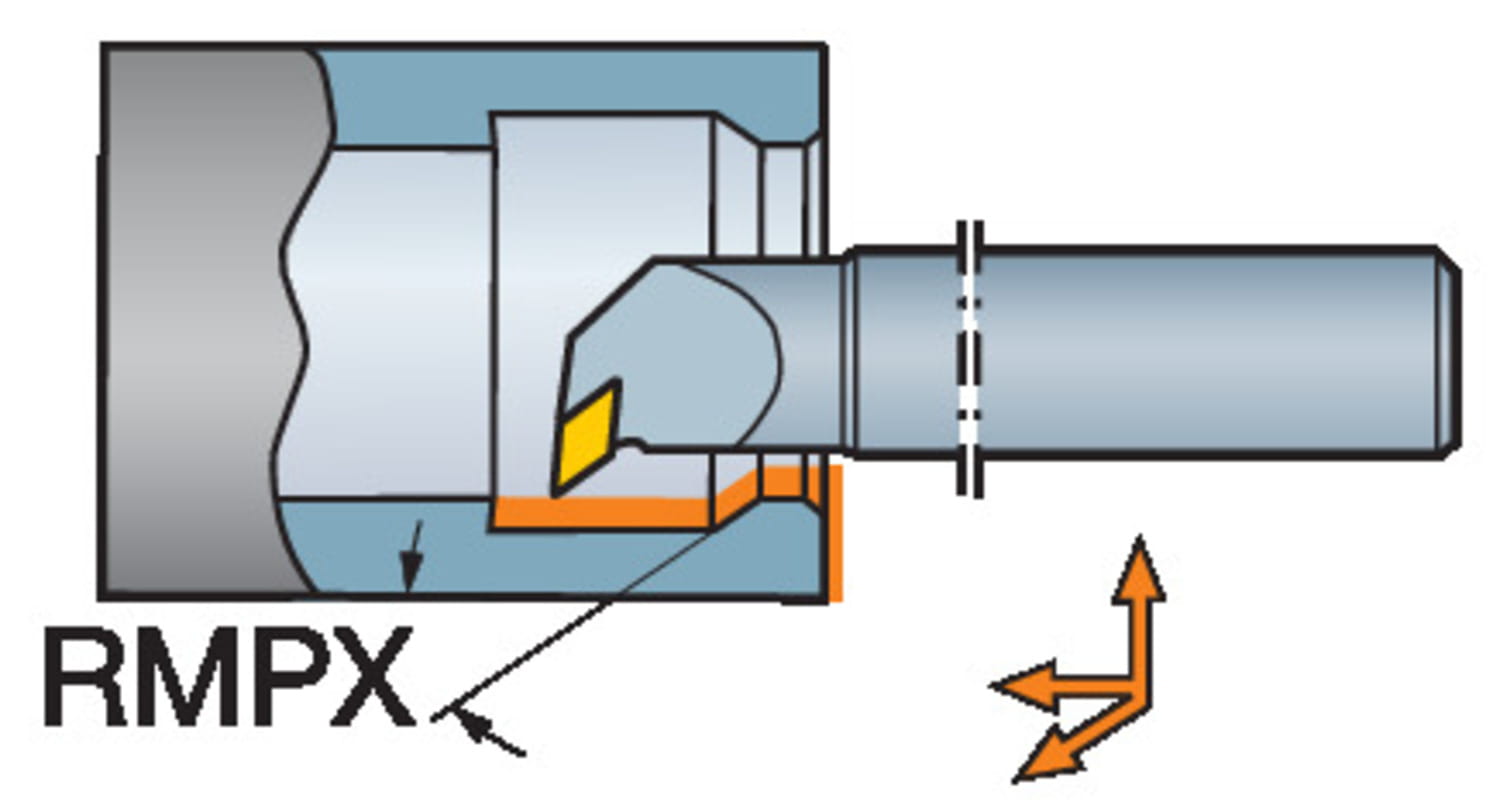

| Rmpx Maximum Ramping Angle | 27 deg |
| Inne parametry | |
| Ean Number | 26339986 |
