Opis

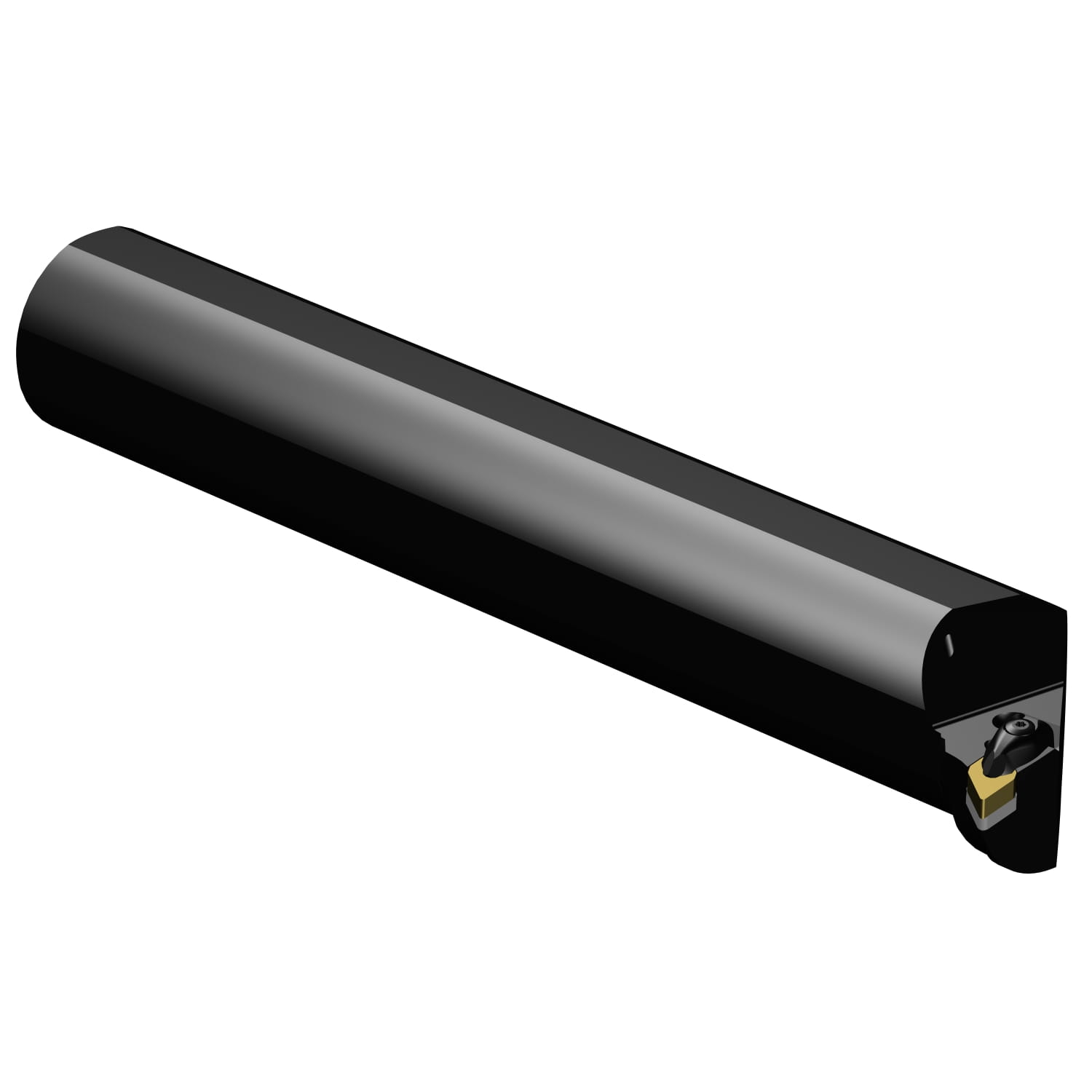

T-Max® P, wytaczak

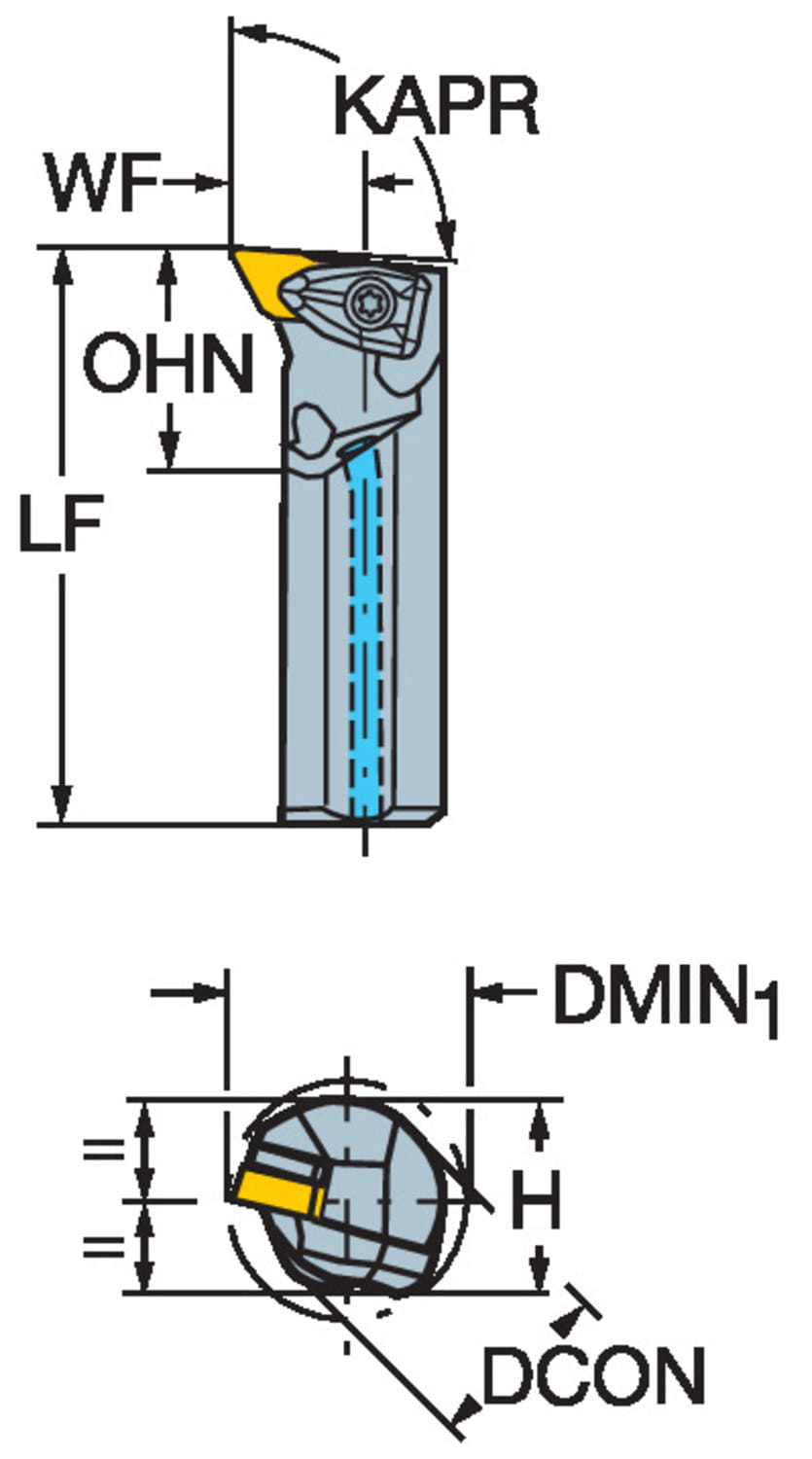

| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | T-Max® P, wytaczak |
| Rodzina produktów | 1049 |
| Product Subfamily Code (Tsyc) | A..DDUNR/L (INCH) |
| Rodzina produktów | Carriers for Concept Inserts |
| Country Of Origin | US |
| Wymiary | |
| Dconms Connection Diameter | 2.5 inch |
| Dconms Connection Diameter | 63.5 mm |
| Dmin1 Minimum Bore Diameter | 3.24803 inch |
| Dmin1 Minimum Bore Diameter | 82.5 mm |
| H Shank Height | 2.37402 inch |
| H Shank Height | 60.3 mm |
| Lf Functional Length | 15.75 inch |
| Lf Functional Length | 400.05 mm |
| Waga | 19.7975 lb |
| Waga | 8.98 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | Cylindrical shank w/ 3 flats -inch: 2 1/2 |
| Bams Machine Side Body Angle | 0 deg |
| Baws Workpiece Side Body Angle | 0 deg |
| Bmc Body Material Code | Steel |
| Cnsc Coolant Entry Style Code | 1: axial concentric entry |
| Cutint Master Part 2 Of Cutting Item Interface Identifiers | DNMG 150608 |
| Cxsc Coolant Exit Style Code | 3: axial inclined exit |
| Dpc Damping Property | no |
| Hand Hand | L |
| Kapr Tool Cutting Edge Angle | 93 deg |
| Ohx Maximum Overhang | 10 inch |
| Ohx Maximum Overhang | 254 mm |
| Psir Tool Lead Angle | -3 deg |

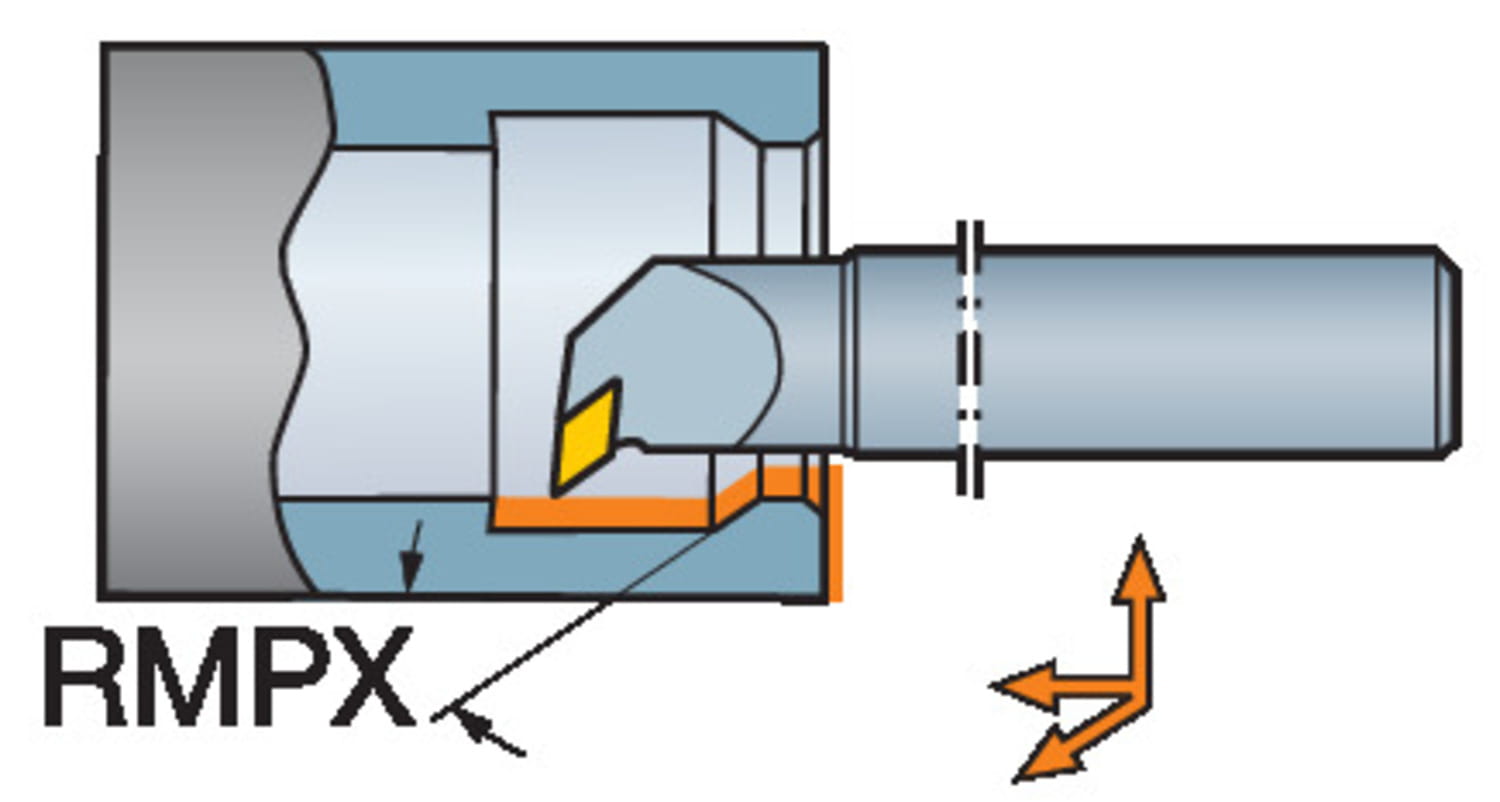

| Rmpx Maximum Ramping Angle | 27 deg |
| Inne parametry | |
| Ean Number | 12326834 |
