T-Max® S, wytaczak RTBAP81.8 ID:5741393 Sandvik
Dostępność:
duża ilość
Cena brutto:
849,93 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
691,00 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
783,51 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
5741393
Opis

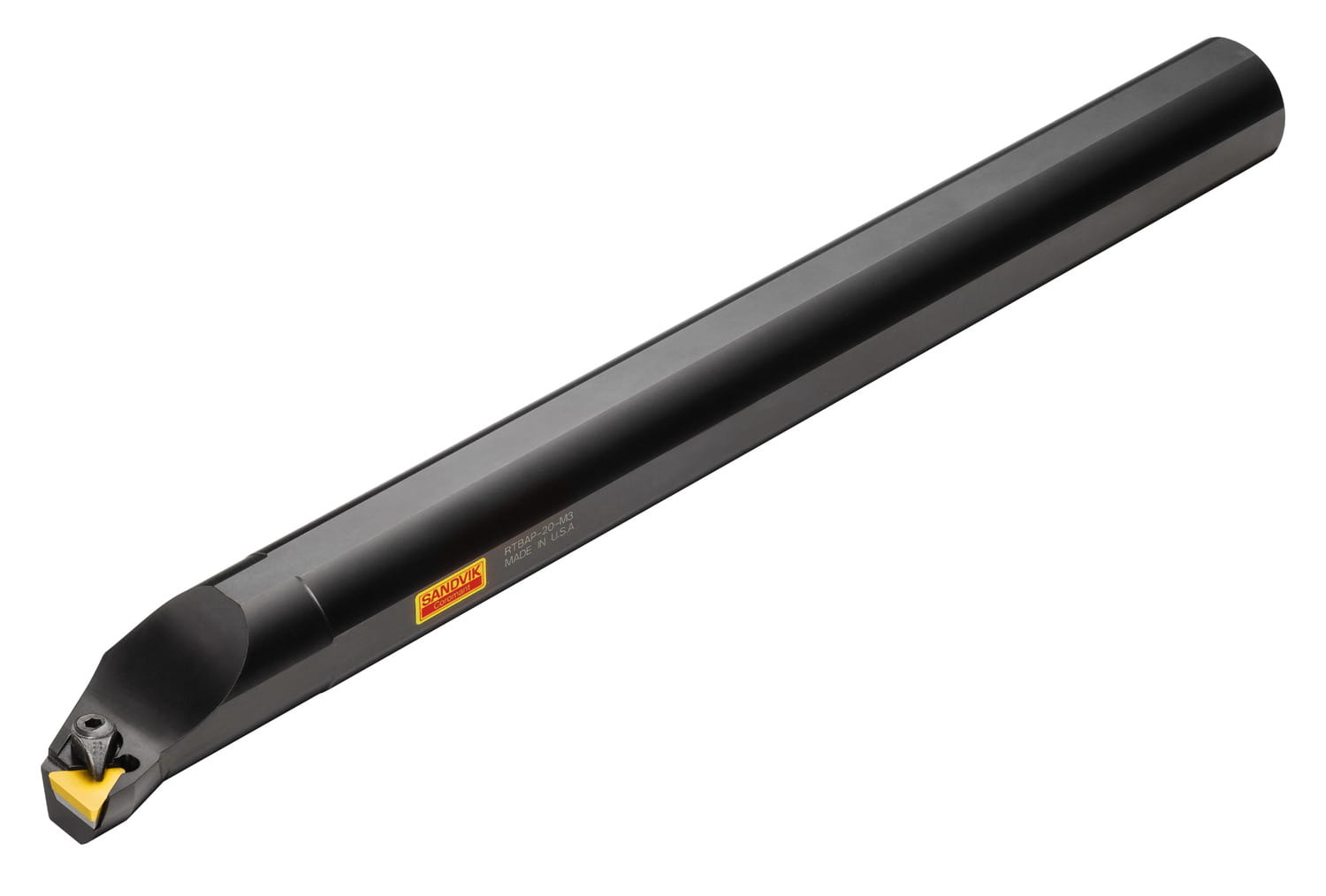

T-Max® S, wytaczak
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | T-Max® S, wytaczak |
| Rodzina produktów | 1057 |
| Product Subfamily Code (Tsyc) | R/LTBAP |
| Rodzina produktów | Carriers for ISO Inserts |
| Country Of Origin | US |

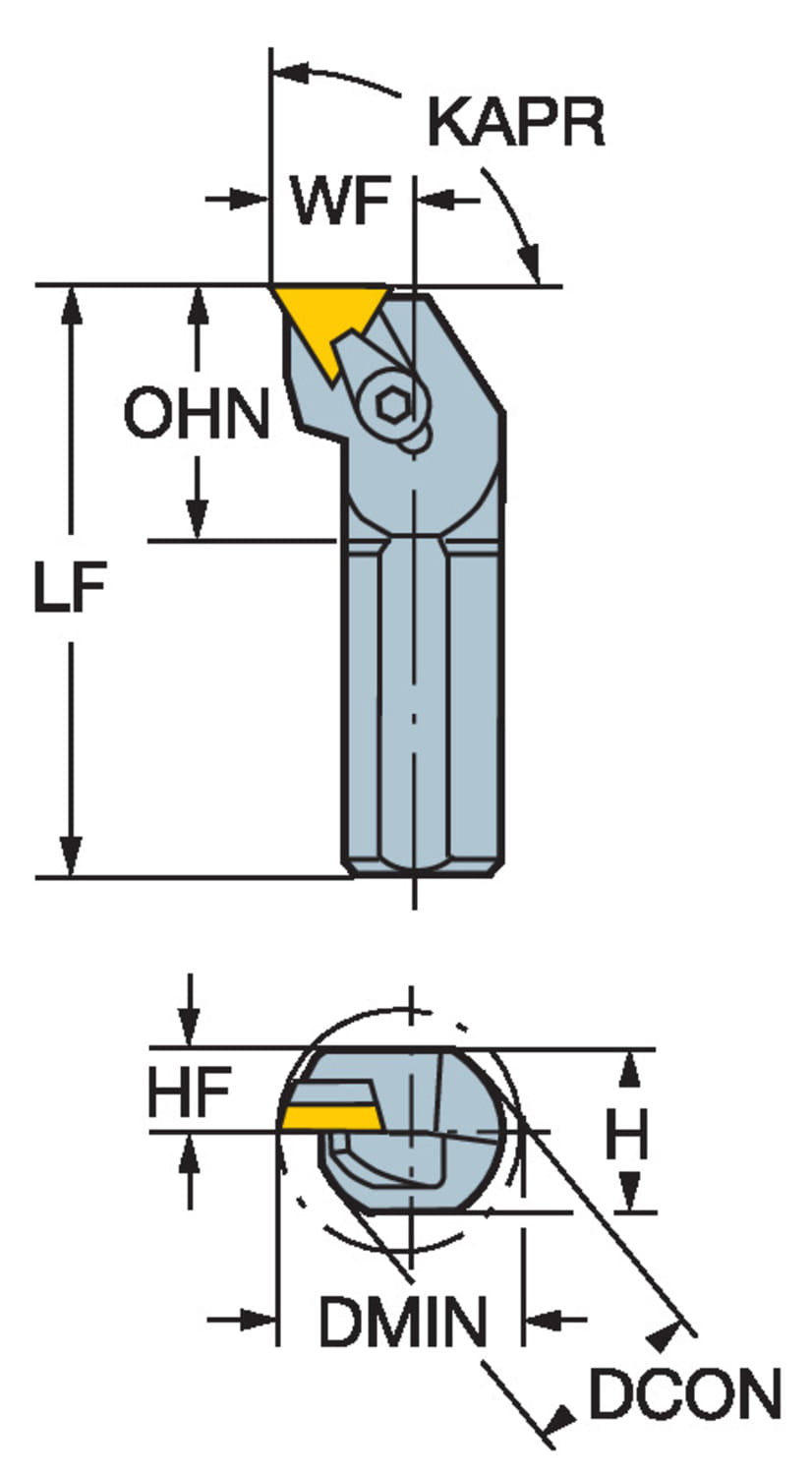

| Wymiary | |
| Dconms Connection Diameter | 0.5 inch |
| Dconms Connection Diameter | 12.7 mm |
| Dmin1 Minimum Bore Diameter | 0.629921 inch |
| Dmin1 Minimum Bore Diameter | 16 mm |
| H Shank Height | 0.46 inch |
| H Shank Height | 11.684 mm |
| Lf Functional Length | 5.51 inch |
| Lf Functional Length | 139.954 mm |
| Waga | 0.308647 lb |
| Waga | 140 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | Cylindrical shank w/ 3 flats -inch: 1/2 |
| Bams Machine Side Body Angle | 0 deg |
| Baws Workpiece Side Body Angle | 0 deg |
| Bmc Body Material Code | Steel |
| Cnsc Coolant Entry Style Code | 0: without coolant |
| Cutint Master Part 2 Of Cutting Item Interface Identifiers | TPMR 090204 |
| Cxsc Coolant Exit Style Code | 0: no coolant exit |
| Dpc Damping Property | no |
| Hand Hand | R |
| Kapr Tool Cutting Edge Angle | 90 deg |
| Ohx Maximum Overhang | 2 inch |
| Ohx Maximum Overhang | 50.8 mm |
| Psir Tool Lead Angle | 0 deg |
| Rmpx Maximum Ramping Angle | 0 deg |
| Inne parametry | |
| Ean Number | 80009161 |
