T-Max® S, wytaczak S16R-CTFPR11 ID:5752005 Sandvik
Dostępność:
duża ilość
Cena brutto:
849,93 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
691,00 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
783,51 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
5752005
Opis

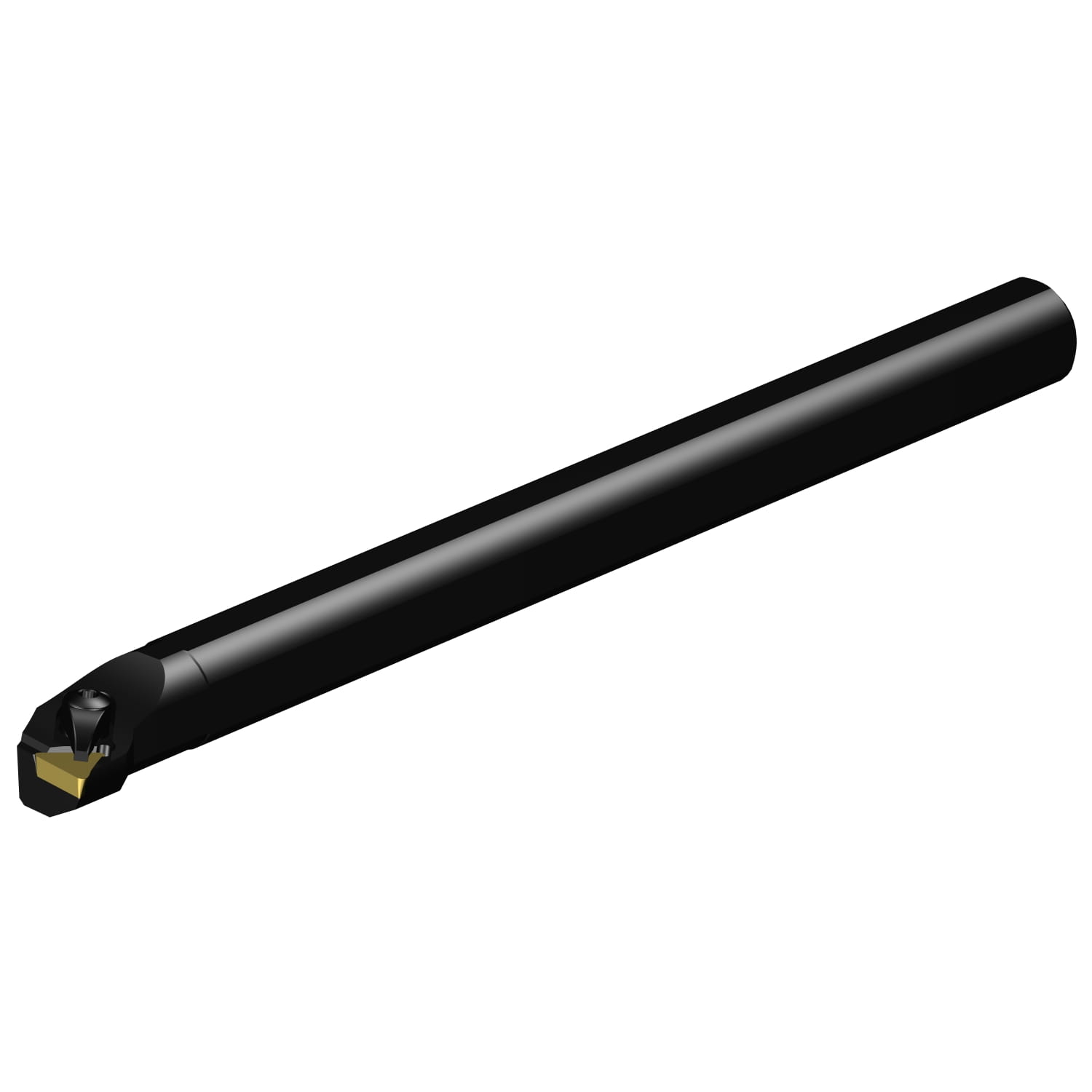

T-Max® S, wytaczak
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | T-Max® S, wytaczak |
| Rodzina produktów | 1057 |
| Product Subfamily Code (Tsyc) | S..CTFPR/L |
| Rodzina produktów | Carriers for ISO Inserts |
| Country Of Origin | IN |
| Wymiary | |
| Dconms Connection Diameter | 0.629921 inch |
| Dconms Connection Diameter | 16 mm |
| Dmin1 Minimum Bore Diameter | 0.787402 inch |
| Dmin1 Minimum Bore Diameter | 20 mm |
| H Shank Height | 0.590551 inch |
| H Shank Height | 15 mm |
| Lf Functional Length | 7.87402 inch |
| Lf Functional Length | 200 mm |
| Waga | 0.641546 lb |
| Waga | 291 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | Cylindrical shank w/ 3 flats -metric: 16 |
| Bams Machine Side Body Angle | 0 deg |
| Baws Workpiece Side Body Angle | 0 deg |
| Bmc Body Material Code | Steel |
| Cnsc Coolant Entry Style Code | 0: without coolant |
| Cutint Master Part 2 Of Cutting Item Interface Identifiers | TPUN 110304 |
| Cxsc Coolant Exit Style Code | 0: no coolant exit |
| Dpc Damping Property | no |
| Hand Hand | R |
| Kapr Tool Cutting Edge Angle | 91 deg |
| Ohx Maximum Overhang | 2.51969 inch |
| Ohx Maximum Overhang | 64 mm |
| Psir Tool Lead Angle | -1 deg |
| Rmpx Maximum Ramping Angle | 0 deg |
| Inne parametry | |
| Ean Number | 10275053 |
