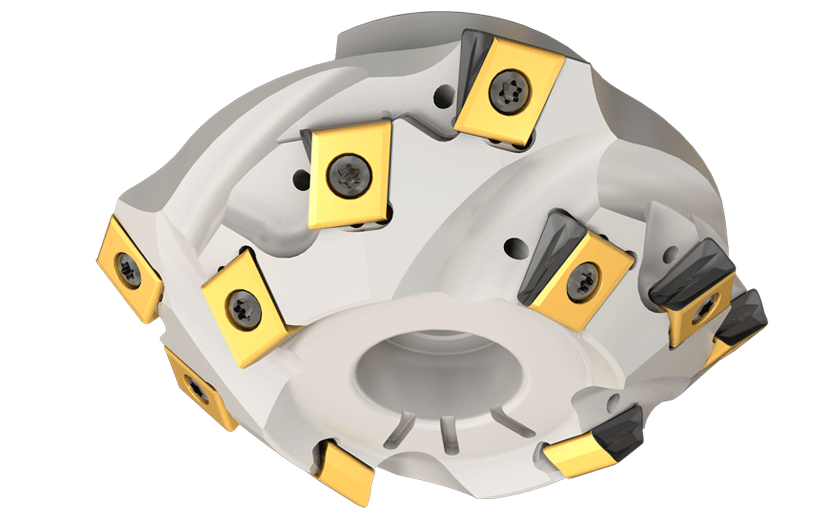

» T445 SMD2.5-.94-4-1.25-13-30°, 45° and 60° extended flute face mills, carrying T490 LNMT/LNHT 13... tangentially clamped inserts with 4 helical, .511" long cutting edges.

T445 SMD2.5-.94-4-1.25-13-30°, 45° and 60° extended flute face mills, carrying T490 LNMT/LNHT 13... tangentially clamped inserts with 4 helical, .511" long cutting edges.

Dostępność: duża ilość

Cena brutto: 4 024,80 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

4024.80

Cena netto: 3 272,20 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 4 472,00 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3106378

T445 SMD2.5-.94-4-1.25-13

Podstawowe informacje
FamilyName	T430/T445/T460 SM
ToolType	Tool
Unit	I
PackSize	1
product_code	ISC3106378
ProductName	T445 SMD2.5-.94-4-1.25-13
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	30°, 45° and 60° extended flute face mills, carrying T490 LNMT/LNHT 13... tangentially clamped inserts with 4 helical, .511" long cutting edges.
FamilyShortDesc	30°, 45° and 60° Extended Flute Face Mills, Carrying T490 LNMT/LNHT 13... Tangentially Clamped Inserts
Link	https://www.Iscar.com/ecat/e.asp?cat=3106378
Remarks	Note: RPM should be considered according to the recommended speed applied on the outer diameter obtained by the specific D.O.C. For calculating feed recommendations, click on More Info
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Facing \| Slanted Shoulder & Chamfer \|
APP1Name	Facing
APP2Name	Slanted Shoulder & Chamfer
ItemRemark
Tool Type	45° Facemills
Point Shape
Measurement Type	Inch
Thread Standard
Package Weight	4.2902
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3106378
Arbor Style	A
Connection Diameter Machine Side (DCONMS)	2.56"
Coolant Supply Property (CSP)	Coolant Thru
Cutting Diameter (DC)	2-1/2"
Cutting Diameter Maximum (DCX)	4.403"
Cutting Direction (HAND)	Right Hand
Cutting Item Count (CICT)	12
Depth of Cut Maximum (APMX)	0.94"
Flute Count (NOF)	4
Master Insert Identification (MIID)	T490 LNMT 1306PNTR
Overall Length (OAL)	2-1/4"
