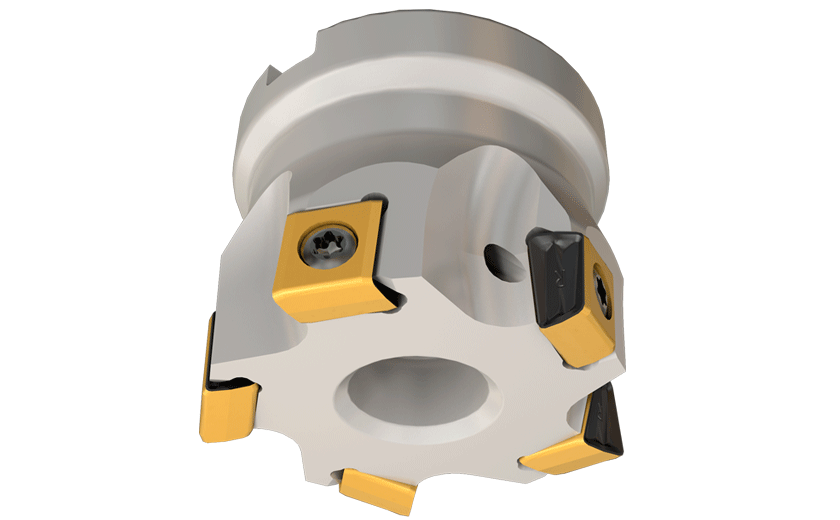

T490 FLND3.00-07-1.0-R-11-90° face mills carrying T490 LN#T 11... tangentially clamped inserts.

Dostępność: duża ilość

Cena brutto: 3 080,52 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

3080.52

Cena netto: 2 504,49 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 3 422,80 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3107164

T490 FLND3.00-07-1.0-R-11

Podstawowe informacje
FamilyName	T490 FLN-11
ToolType	Tool
Unit	I
PackSize	1
product_code	ISC3107164
ProductName	T490 FLND3.00-07-1.0-R-11
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	90° face mills carrying T490 LN#T 11... tangentially clamped inserts.
FamilyShortDesc	90° Face Mills Carrying T490 LN#T 11... Tangentially Clamped Inserts
Link	https://www.Iscar.com/ecat/e.asp?cat=3107164
Remarks	Important: Maximum clamping torque 28.3 lbf*in
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Facing \| Shouldering \| Slotting \|
APP1Name	Facing
APP2Name	Shouldering
APP3Name	Slotting
ItemRemark
Tool Type	90° Facemills
Point Shape
Measurement Type	Inch
Thread Standard
Package Weight	2.5155
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3107164
Arbor Style	A
Connection Diameter Machine Side (DCONMS)	1"
Coolant Supply Property (CSP)	Coolant Thru
Cutting Diameter (DC)	3"
Cutting Diameter (DC/DCX)	3"
Cutting Direction (HAND)	Right Hand
Cutting Item Count (CICT)	7
Depth of Cut Maximum (APMX)	0.35"
Hub Diameter (DHUB)	2.756"
Master Insert Identification (MIID)	T490 LNHT 1106PNTR
Overall Length (OAL)	2"
Tool Cutting Edge Angle (KAPR)	90 Degrees
