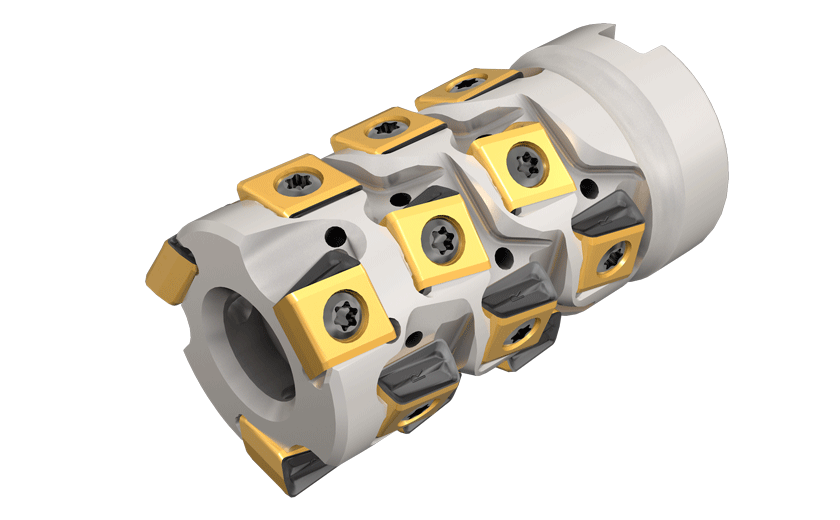

T490 SM-D2.0-2.3-4-1.0-11-Extended flute shell mills carrying T490 LN#T 11... tangentially clamped inserts.

Dostępność: duża ilość

Cena brutto: 4 179,60 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

4179.60

Cena netto: 3 398,05 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 4 644,00 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3107175

T490 SM-D2.0-2.3-4-1.0-11

Podstawowe informacje
FamilyName	T490 SM-11
ToolType	Tool
Unit	I
PackSize	1
product_code	ISC3107175
ProductName	T490 SM-D2.0-2.3-4-1.0-11
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Extended flute shell mills carrying T490 LN#T 11... tangentially clamped inserts.
FamilyShortDesc	Extended Flute Shell Mills Carrying T490 LN#T 11... Tangentially Clamped Inserts
Link	https://www.Iscar.com/ecat/e.asp?cat=3107175
Remarks	Important: Maximum clamping torque 28.3 lbf*in
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Shouldering \|
APP1Name	Shouldering
ItemRemark
Tool Type	90° Extended flute shell mill
Point Shape
Measurement Type	Inch
Thread Standard
Package Weight	2.1848
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3107175
Arbor Style	A
Connection Diameter Machine Side (DCONMS)	1.921"
Coolant Supply Property (CSP)	Coolant Thru
Cutting Diameter (DC)	2"
Cutting Direction (HAND)	Right Hand
Cutting Item Count (CICT)	28
Depth of Cut Maximum (APMX)	2.35"
Flute Count (NOF)	4
Master Insert Identification (MIID)	T490 LNHT 1106PNTR
Overall Length (OAL)	3-1/4"
