» T490 SM-D2.5-23-5-1.0-13-Extended flute shell mills carrying T490 LNMT/HT 1306... tangentially clamped inserts (HELITANG T490 Line).

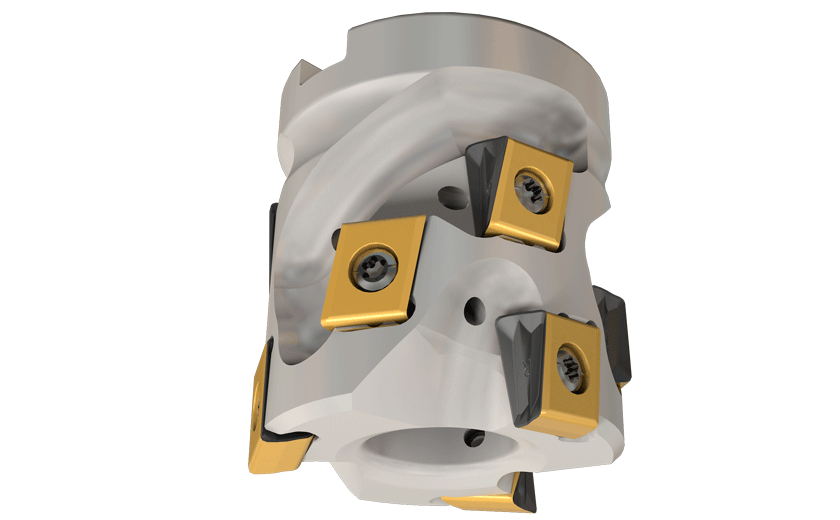

T490 SM-D2.5-23-5-1.0-13-Extended flute shell mills carrying T490 LNMT/HT 1306... tangentially clamped inserts (HELITANG T490 Line).

Dostępność: duża ilość

Cena brutto: 5 147,10 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

5147.10

Cena netto: 4 184,63 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 5 719,00 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3105095

T490 SM-D2.5-23-5-1.0-13

Podstawowe informacje
FamilyName	T490 SM-13
ToolType	Tool
Unit	I
PackSize	1
product_code	ISC3105095
ProductName	T490 SM-D2.5-23-5-1.0-13
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Extended flute shell mills carrying T490 LNMT/HT 1306... tangentially clamped inserts (HELITANG T490 Line).
FamilyShortDesc	Extended Flute Shell Mills Carrying T490 LNMT/HT 1306... Tangentially Clamped Inserts
Link	https://www.Iscar.com/ecat/e.asp?cat=3105095
Remarks
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Shouldering \|
APP1Name	Shouldering
ItemRemark
Tool Type	90° Extended flute shell mill
Point Shape
Measurement Type	Inch
Thread Standard
Package Weight	3.0336
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3105095
Arbor Style	A
Connection Diameter Machine Side (DCONMS)	2.2"
Coolant Supply Property (CSP)	Coolant Thru
Cutting Diameter (DC)	2-1/2"
Cutting Direction (HAND)	Right Hand
Cutting Item Count (CICT)	25
Depth of Cut Maximum (APMX)	2.32"
Flute Count (NOF)	5
Master Insert Identification (MIID)	T490 LNMT 1306PNTR
Overall Length (OAL)	2.95"
