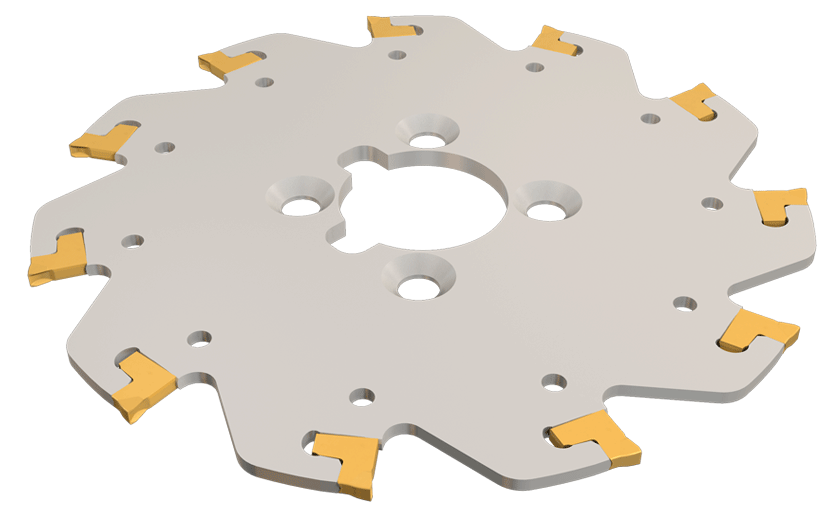

TGSF 100-2-1.000KR-TANGSLIT slitting cutters carrying TANG-GRIP inserts.

Dostępność: duża ilość

Cena brutto: 3 513,96 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

3513.96

Cena netto: 2 856,88 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 3 904,40 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 2302608

TGSF 100-2-1.000KR

Podstawowe informacje
FamilyName	TGSF
ToolType	Tool
Unit	I
PackSize	1
product_code	ISC2302608
ProductName	TGSF 100-2-1.000KR
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	TANGSLIT slitting cutters carrying TANG-GRIP inserts.
FamilyShortDesc	Slitting Cutters Carrying TANG-GRIP Inserts
Link	https://www.Iscar.com/ecat/e.asp?cat=2302608
Remarks	DC varies slightly due to different chip formers having different lengths For precision operations it is recommended to verify diameter offset before machining For drive flange set dimensions, refer to Related Holder
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Side Slotting \| Slitting \|
APP1Name	Side Slotting
APP2Name	Slitting
ItemRemark
Tool Type	Slitting cutters
Point Shape
Measurement Type	Inch
Thread Standard
Package Weight	0.2954
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	2302608
Connection Code Machine Side (CCMS)	Disk type
Cutting Diameter (DC)	3.94"
Cutting Depth Maximum (CDX)	1.02"
Cutting Item Count (CICT)	11
Cutting Width Maximum (CWX)	0.08"
Cutting Width Minimum (CWN)	0.079"
Hub Diameter (DHUB)	1.81"
Hub Thickness (THUB)	0.07"
Master Insert Identification (MIID)	TAG N2C
Peripheral Effective Cutting Edge Count (ZEFP)	11
Rotational Speed Maximum (RPMX)	800 Rev/min
